Description
Quick Overview

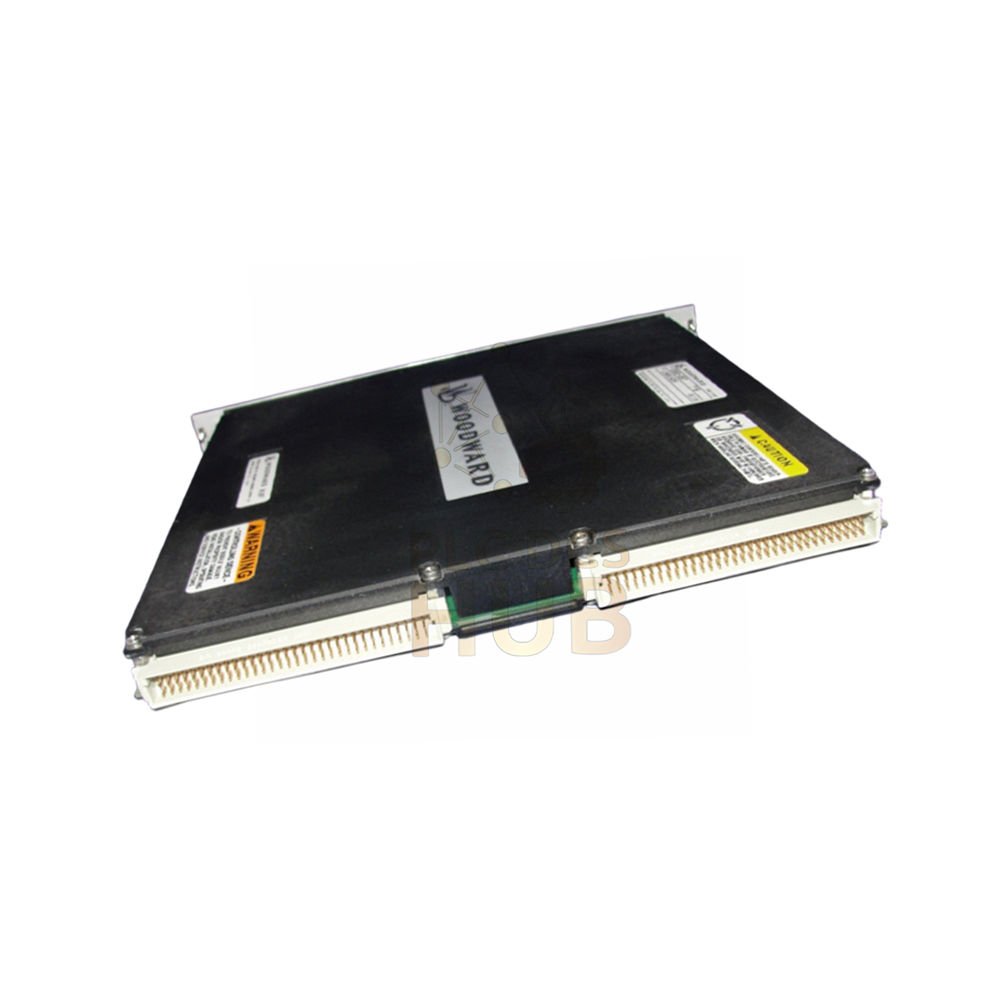

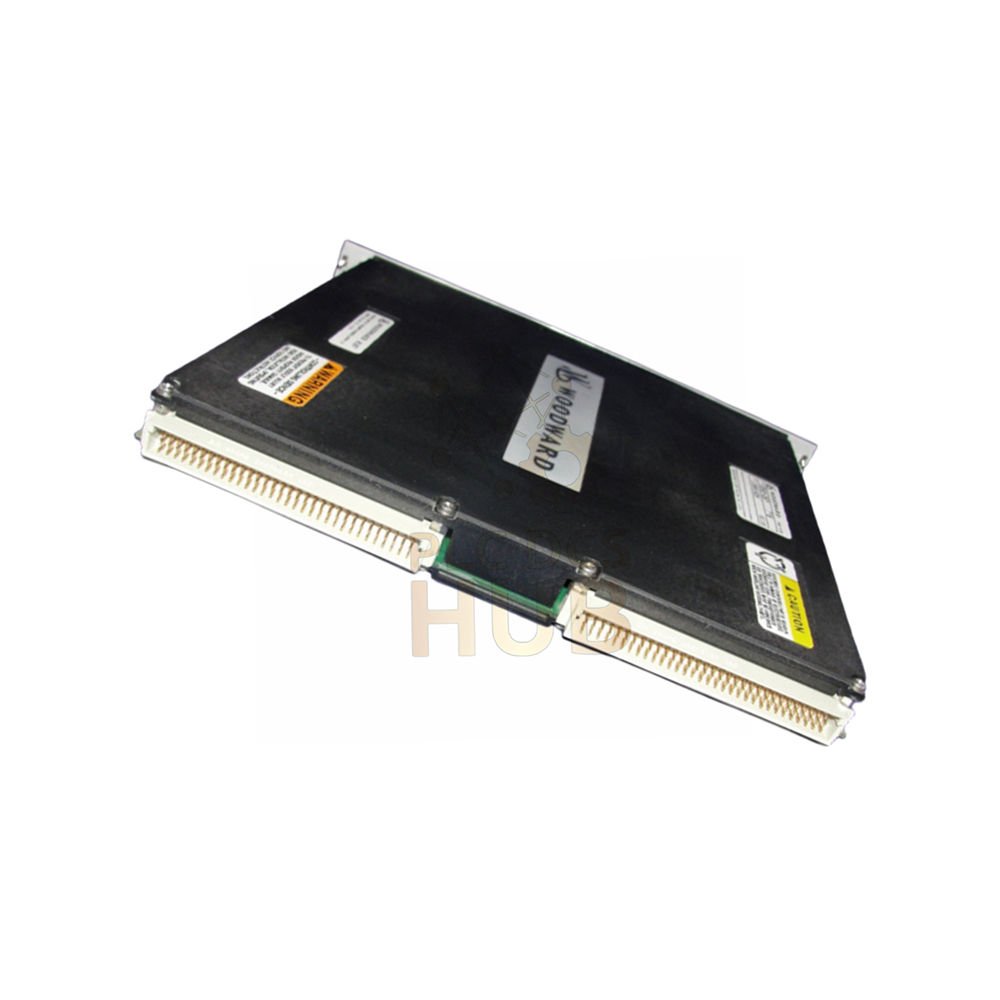

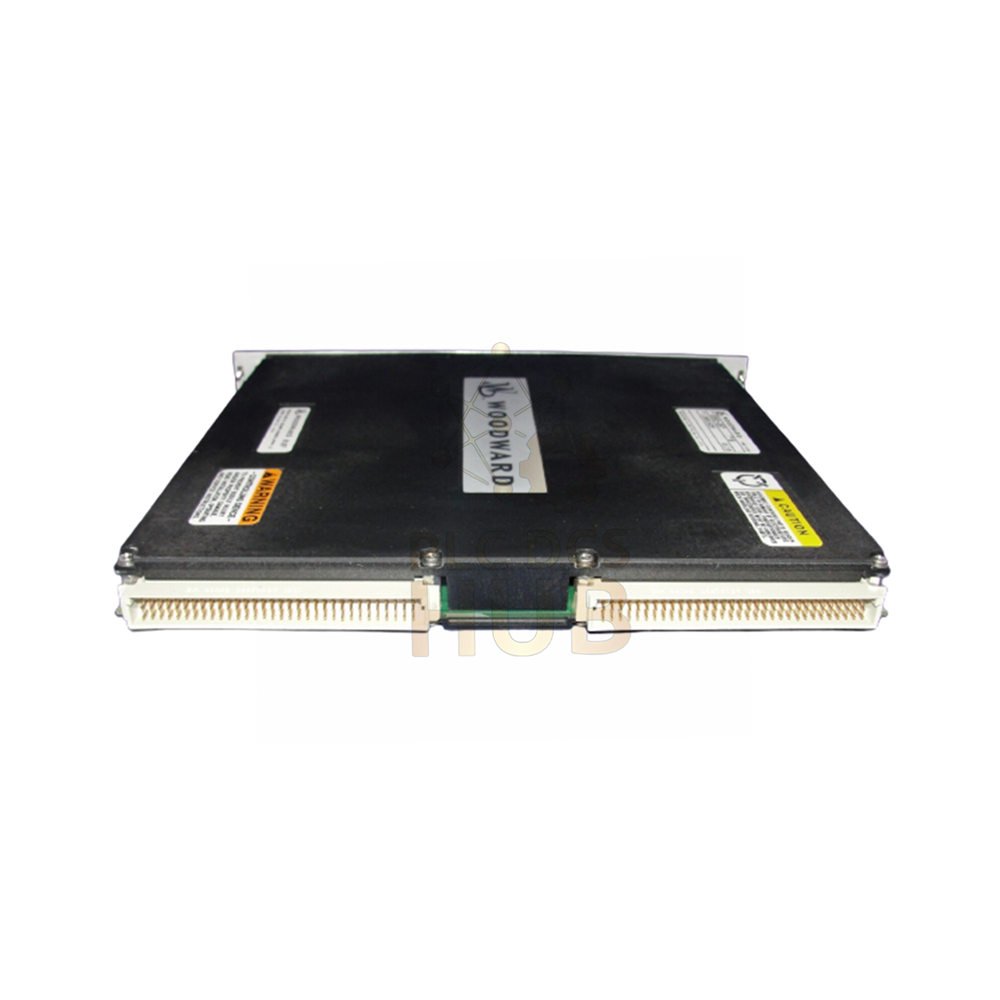

The Woodward 5503-335 is a MicroNet 5200 CPU Module. It works inside gas turbine control systems. This board runs on an Intel Atom processor. It handles complex tasks with up to 4GB of DDR3 memory. The module supports Windows or Linux operating systems. Use it for reliable industrial automation.
Why Pick This Module
– Runs on Intel Atom for good speed and low power use – Handles Modbus, CANbus, and PROFIBUS protocols – Fits harsh environments with shock and vibration resistance – Includes Ethernet, USB, and multiple serial ports – Works with Modicon Quantum systems as well
Technical Specifications
- Part Number: 5503-335
- Manufacturer: Woodward
- Product Type: MicroNet 5200 CPU Module
- Dimensions: 16cm x 16cm x 12cm
- Weight: 1.82 kg (4.01 lbs)
- Processor: Intel Atom
- RAM: Up to 4GB DDR3
- Flash Memory: 64 MB
- RAM (alternate): 128 MB
- Clock Speed: 400 MHz
- Protection Rating: IP20 (IEC 529)
- Overvoltage Rating: Cat 2
- Sound Level: Less than 70 dBA
Environmental Limits
- Operating Temperature: 0 to +55 °C (+32 to +131 °F)
- Storage Temperature: –20 to +45 °C (–4 to +113 °F)
- Alternate Operating Range (some models): –40 to +185 °F
- Humidity Standard: Lloyd’s Register, 2 cycles at 20–55 °C, 95% RH non-condensing over 48 hours
- Max Altitude: 4000 meters
Ports & Connectivity
– CAN bus ports – Real-Time Network (RTN) port – Ethernet ports – Multiple serial ports – USB interfaces – Expansion chassis required with Remote RTN module
Front Panel LEDs (10 Indicators)
– TX/RX – Data transmit and receive – LINK – Network connection status – STANDBY – Standby mode active – SYSCON – System controller active – RUN – Processor running normally – IOLOCK – I/O lock condition (red light) – LVCC – Low voltage status – WATCHDOG – Watchdog timer status – CAN #1, #2 – CAN bus activity – FAULT – CPU fault indicator (red flashing)
How to Use the LEDs for Diagnosis
The FAULT LED turns red and flashes for a CPU problem. At the same time, the IOLOCK LED also lights up red. This pair means there is an I/O lock condition inside the VMEbus or the CPU itself. Check these lights first when the system stops working.
Installation Notes
This board is a CPU-based system. You must use it with an expansion chassis. That chassis needs a Remote RTN module. Mount the module in a dry panel with good airflow. Keep the operating temperature between 0 and +55°C. Do not use above 4000 meters altitude.
Operating Systems Support
– Windows Embedded Standard – Windows Embedded Compact – Linux
Industrial Protocols Supported
– Modbus – CANbus – PROFIBUS
Compatibility Information
The Woodward 5503-335 works with Modicon Quantum systems when using proper gateway settings. It also connects to any VMEbus backplane. The module requires a Remote RTN module in the expansion chassis.
Certifications & Protection
– IP20 Rating: Protects against fingers and small objects – Lloyd’s Register: Passed humidity cycling test – Shock Resistant: Designed for harsh industrial use – Vibration Resistant: Suitable for turbine environments
Typical Applications
– Gas turbine control systems – Power generation plants – Marine propulsion controls – Industrial automation lines – Remote compressor stations
Frequently Asked Questions (FAQ)
Q1: Is the Woodward 5503-335 still in production?
A: No. According to manual 26166V1, this CPU is obsolete. The 26166V3 manual also confirms this status. Buy remaining stock while available.
Q2: Can I use this module without an expansion chassis?
A: No. The 5503-335 requires an expansion chassis with a Remote RTN module. The CPU board will not work alone.
Q3: What do the FAULT and IOLOCK LEDs mean together?
A: Both red lights mean an I/O lock condition inside the VMEbus or CPU. First, try a full power cycle. Then check all backplane connections.
Q4: What is the real difference between 64MB flash and 128MB RAM?
A: Flash memory stores your program and settings. RAM handles active calculations. More RAM helps complex turbine logic run smoother.
Q5 (选购指导): Should I buy this 5503-335 for a new project?
A: No. For new designs, pick a current Woodward CPU. For existing turbines, buy this as a spare. We offer a 12-month warranty on all used units.
Selection Guide (Buying Advice)
– Buy the 5503-335 only for existing MicroNet 5200 systems. – Order a spare if your turbine runs 24/7. Downtime costs more than the module. – Check your operating temperature. This unit works from 0 to +55°C only. – For cold climates below 0°C, look for the extended temperature version. – Use thermal paste on the CPU heatsink for hot panels above 50°C.
Warranty & Delivery
Warranty: 12 months from purchase date. Covers manufacturing defects and boot failures.
Shipping Methods:
FedEx (priority worldwide)
UPS (tracked ground and air)
DHL (express door-to-door)
