Description
Product Overview

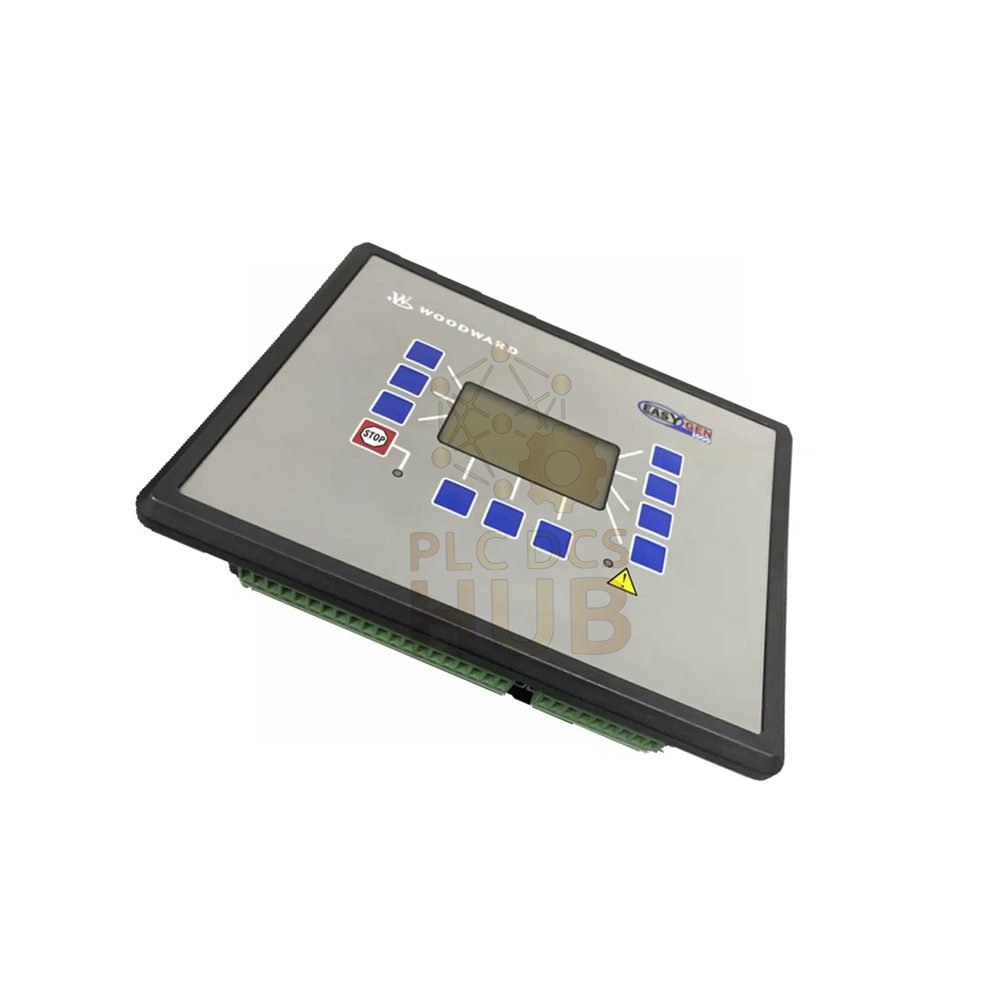

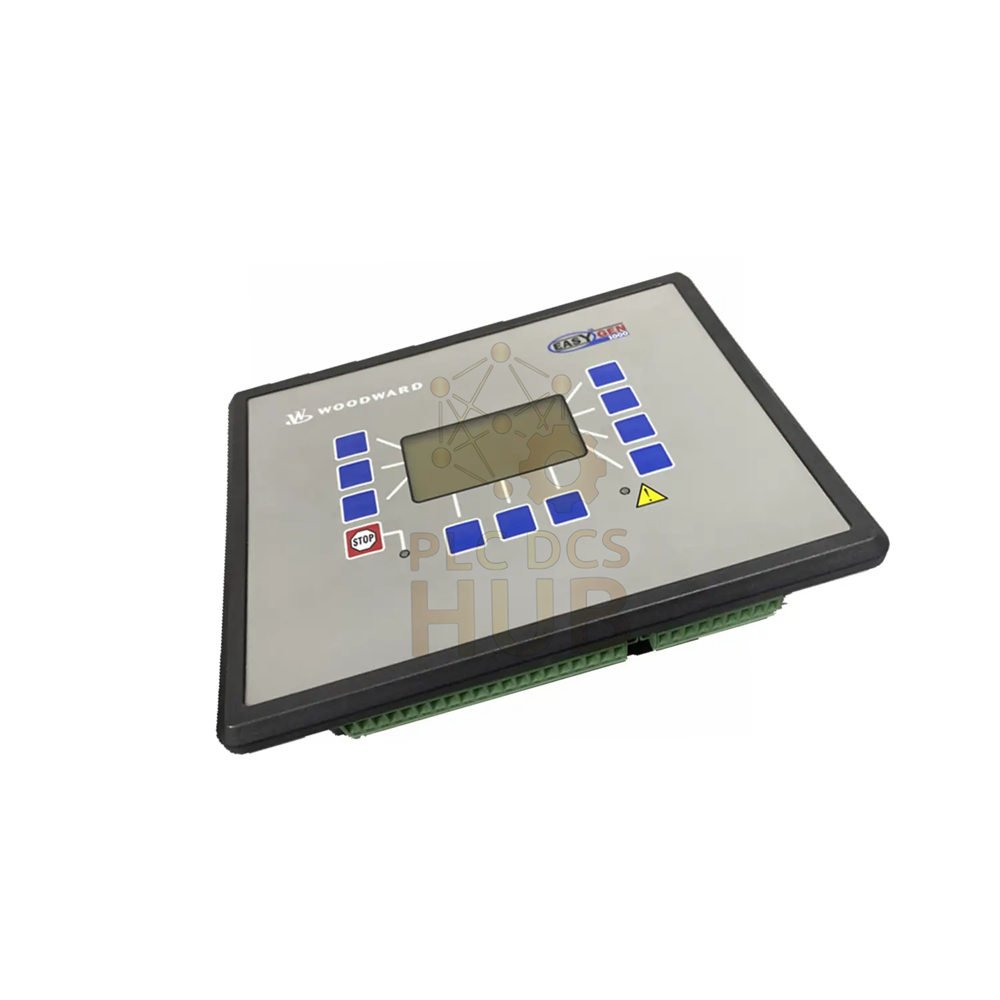

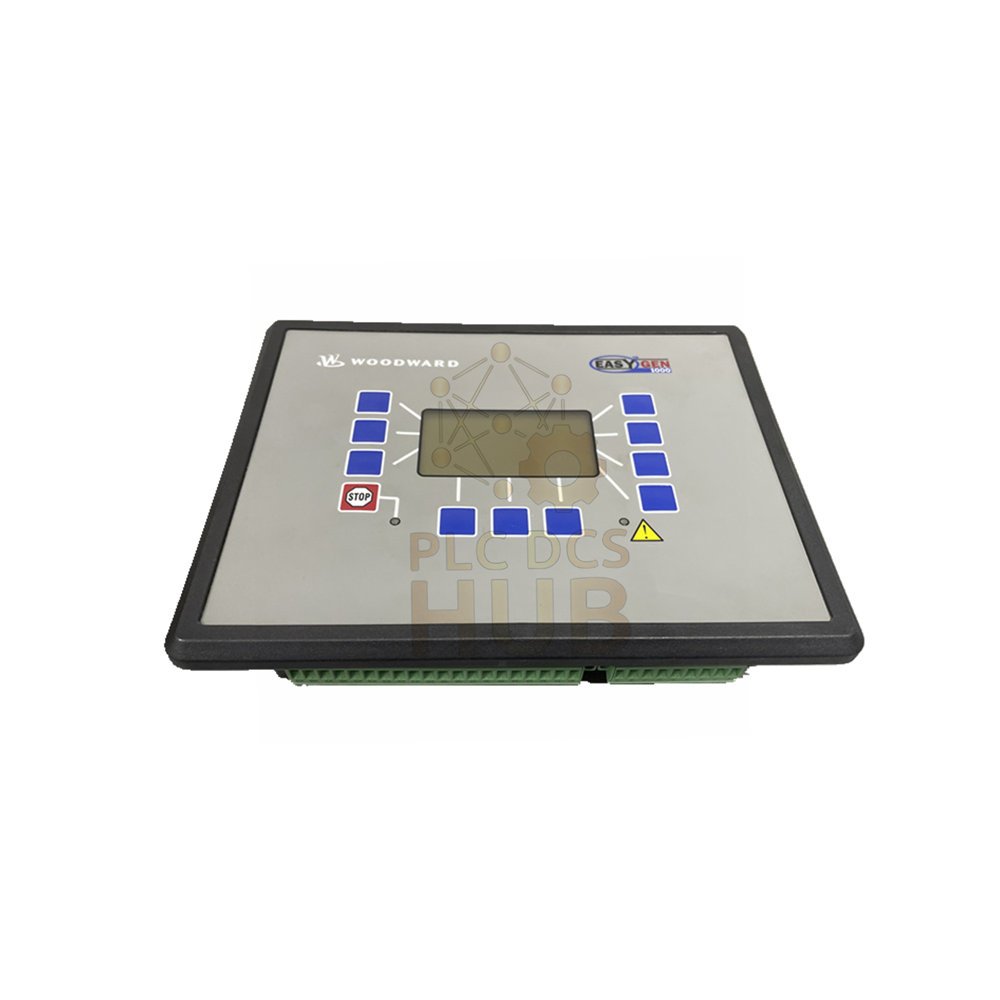

The Woodward 8440-1809 belongs to the easYgen-1000 series. This model suits non-paralleling mobile power and emergency standby. It offers flexible breaker configuration for 1 or 2 units. The control includes true RMS sensing for generator and mains. Advanced CAN communication supports engine ECU control. You get complete generator protection and mains monitoring.
Key Benefits
– Configurable start-stop logic for diesel or gas engines – LogicsManager™ uses boolean operators for complex controls – Remote-start capability enhances automation – Supports CAN Open, J1939, Modbus RTU, and modem – 10 selectable display languages for global use
Technical Specifications (MECE Organized)
Brand & Model
Brand: Woodward
Model: 8440-1809
Series: easYgen-1000 (with easYgen-1500 features)
Electrical Input & Range
Input resistance: approximately 6.7 kΩ
Linear measuring range: 1.5 x V
Max power consumption: less than 0.15 W
Load & Output
Load (GP): 2.00 Aac @ 250 Vac
Supports real and reactive power sensing
Power Supply
Supply voltage: 12-24 V DC
Environmental & Storage
Storage temperature: -22 to 176 °F (-30 to 80 °C)
Protection & Sensing
True RMS voltage and current sensing
Complete engine and generator protection
Mains monitoring included
Immunity: built for industrial EMI environments
Display & Interface
LCD display
Panel mount design
Single unit or genset control interface
Communication & Compatibility
Advanced CAN bus (J1939, CAN Open)
Modbus RTU and modem connection
Connects to Woodward IKD 1 I/O expansion module
Works with Easylite-100 remote annunciator panel
Supports engine ECUs and PLCs
Installation Guide
– Use panel mount cutout per Woodward drawing – Connect 12-24V DC stable power source – Follow start-stop logic wiring for diesel or gas engine – Set breaker configuration (1 or 2 breakers) before startup – Ensure CAN bus termination if using J1939
Debugging & Maintenance Convenience
– LogicsManager™ allows real-time logic checks – Display shows alarm classes: A, B, C, D, E, F – Class A and B remain unchanged; C,D,E,F become Class B – Test with or without load using automatic mode – No special message appears during mains failure start-up – Unit keeps running until mains return and settle
Compatibility Notes
– Works with most engine ECU via CAN – Compatible with Modicon Quantum (Modicon Quantum series) PLC systems – Supports remote annunciation panel for NFPA compliance – I/O expansion via Woodward IKD 1 module
Certifications & Compliance
– NFPA-compliant for emergency standby – Meets industrial control safety standards – True RMS measurement accuracy verified
Package Contents
– Woodward 8440-1809 controller unit – Panel mount clips and gasket – Quick start guide – No cables included (user supplies wiring)
Warranty & Shipping
Warranty: 12 months from shipment date. Covers manufacturing defects. Does not cover misuse or field damage.
Shipping carriers: FedEx, UPS, DHL. Worldwide express delivery available.
Typical Applications
– Mobile power generators – Emergency standby systems – Non-paralleling genset controls – Remote site power units – Marine auxiliary generators
Diagnostic Capabilities
– Real-time meter readings on LCD – Alarm class mapping simplifies troubleshooting – Mains failure detection with automatic runtime extension – CAN bus diagnostic data from engine ECU – LogicsManager™ shows internal condition states
Frequently Asked Questions (FAQ)
Q1: What is the input resistance?
A: Approximately 6.7 kΩ. Suitable for standard voltage sensing inputs.
Q2: Can I use this for paralleling?
A: No. The easYgen-1500 features target non-paralleling applications only.
Q3: How do alarm classes work?
A: Class A and B stay as set. Classes C,D,E,F convert to Class B alarms automatically.
Q4: What happens during mains failure while starting?
A: The unit keeps running. It stops only after mains return and settling time expires.
Q5: Does this support remote start?
A: Yes. Remote-start capability is built in.
Q6: Experience-based tip: What fails most often?
A: Most field issues come from poor CAN termination. Always add a 120 ohm resistor at the last node.
Q7: Experience-based tip: How to avoid display lag?
A: Use a clean 12-24V DC supply. Avoid sharing power with large contactors.
Q8: Purchasing guide – New or refurbished?
A: Choose new surplus for critical sites. Refurbished works for testing or backup units. AX Control INC offers both.
Q9: Purchasing guide – Which accessories are needed?
A: Buy the IKD 1 module for more I/O. Add Easylite-100 for remote NFPA annunciation.
Q10: Can I use this with Modicon Quantum?
A: Yes. Use Modbus RTU to connect. See Modicon Quantum products for compatible PLCs.
Contact & Support
For inquiries: +86 158 8020 0923 (WhatsApp). Call or message for technical help or purchase support.
Ordering & Selection Guide
– Need 1 or 2 breaker operation? Confirm before ordering. – Need remote annunciation? Add Easylite-100. – Need extra I/O? Select Woodward IKD 1 module. – Mobile application? Choose 12V DC power setup. – Emergency standby? Ensure 24V DC supply with backup.
Popular selection tip: For NFPA compliance, always pair with Easylite-100 panel. For engine ECU control, verify J1939 support first.
