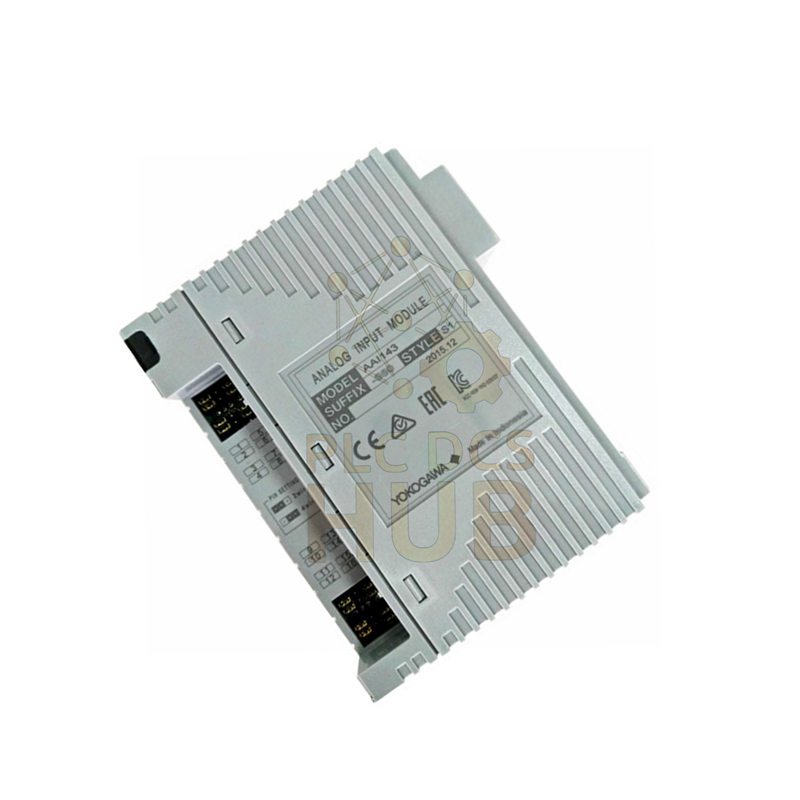

Yokogawa AAI143-S50 Isolated Analog Input Module | AAI143 Series 16CH

Description

Yokogawa AAI143-S50 Module Introduction

• Brand: Yokogawa
• Ordering Code: AAI143-S50
• Series: AAI143 Analog Input Family
• This unit reads 4–20 mA signals with strong isolation.
• It protects your control system from field wiring faults.
• 16 isolated channels save cabinet space.

Core Selling Points

• True channel isolation improves plant safety.
• Fast 10 ms refresh supports quick process response.
• Stable accuracy for critical analog measurements.
• Works well in redundant control architectures.
• HART ready for smart transmitter access.

Key Technical Specifications

• Model: AAI143 Analog Input Module
• Input type: 4–20 mA DC current loop
• Channel count: 16 inputs, fully isolated
• Max input current: 24 mA allowable range
• Measurement precision: ±16 µA typical accuracy
• Update speed: 10 ms data cycle
• Temperature drift: ±16 µA per 10 °C change
• Input resistance: 270–350 Ω when powered
• Off-state impedance: ≥500 kΩ for safe maintenance
• Isolation strength: 1500 V AC for 1 minute
• Transmitter supply: 19.0 V minimum at 20 mA
• Current limit: 25 mA maximum output protection
• Power draw: 230 mA at 5 V DC
• Power draw: 540 mA at 24 V DC
• Module weight: Only 0.3 kg
• Size: 107.5 × 32.8 × 130 mm

System Integration Highlights

• Supports 2-wire and 4-wire transmitters per channel.
• Simple pin settings reduce wiring mistakes.
• Dedicated cable options simplify field installation.
• Designed for Yokogawa ER bus node environments.

Practical Engineering Notes

• Do not connect a Zener barrier directly to this module.
• Use an isolation barrier for intrinsic safety projects.
• Consider cable voltage drop in loop power design.
• Firmware rev. 2 or later is required for full HART use.

Typical Industrial Applications

• Flow transmitter signal capture
• Pressure loop monitoring in refineries
• Temperature converter input in DCS systems
• Remote analog acquisition in process plants
• Smart device diagnostics with HART instruments

Shipping and Warranty

• 12-month warranty for quality assurance.
• Fast delivery via FedEx, UPS, or DHL.
• Strong export packing for global transport.

Professional FAQ and Buying Advice

• Q: Why choose isolated inputs instead of common inputs?
• A: Isolation reduces ground loop risk and improves signal stability.
• Q: What is a key check before ordering this module?
• A: Confirm your transmitters run on 4–20 mA loops only.
• Q: How can engineers extend module life in the field?
• A: Keep wiring tight and avoid moisture inside cabinets.
• Q: When is HART support most useful?
• A: When you need remote device status and calibration data.
• Q: What is a common selection tip for new projects?
• A: Pick isolated AI modules for critical signals and long cable runs.
