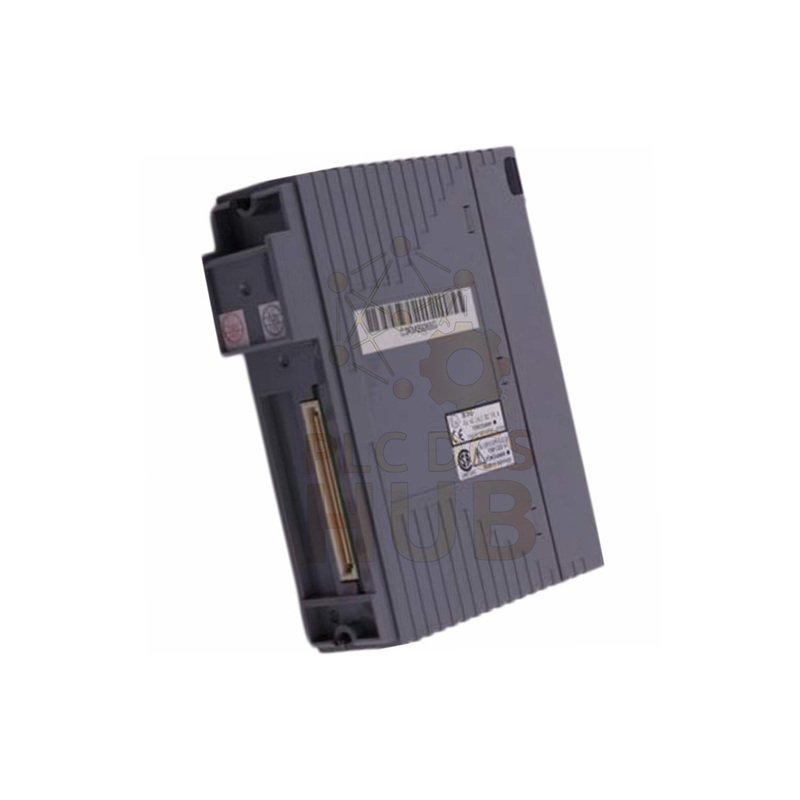

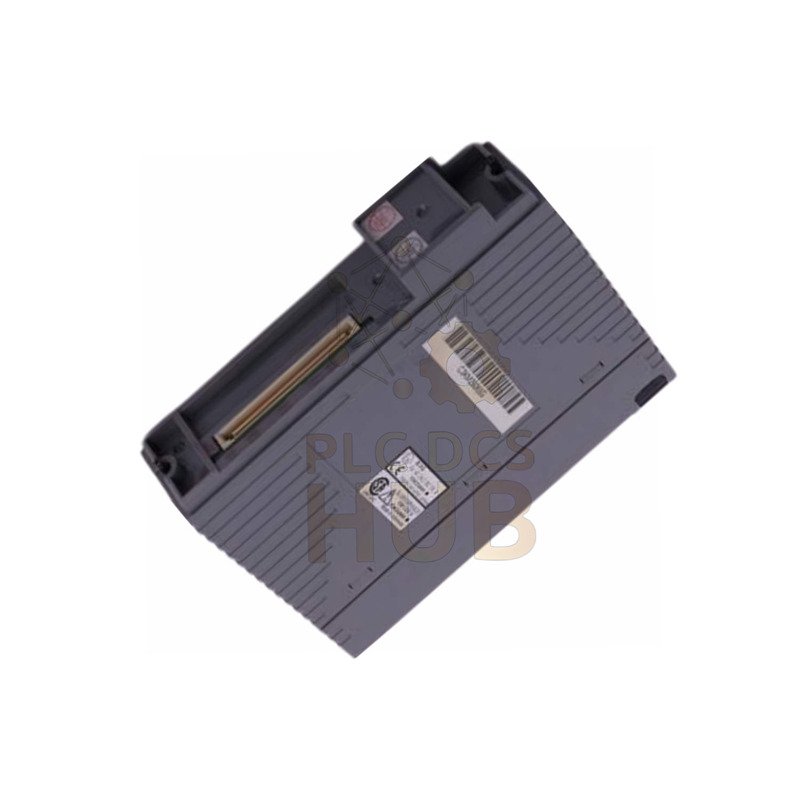

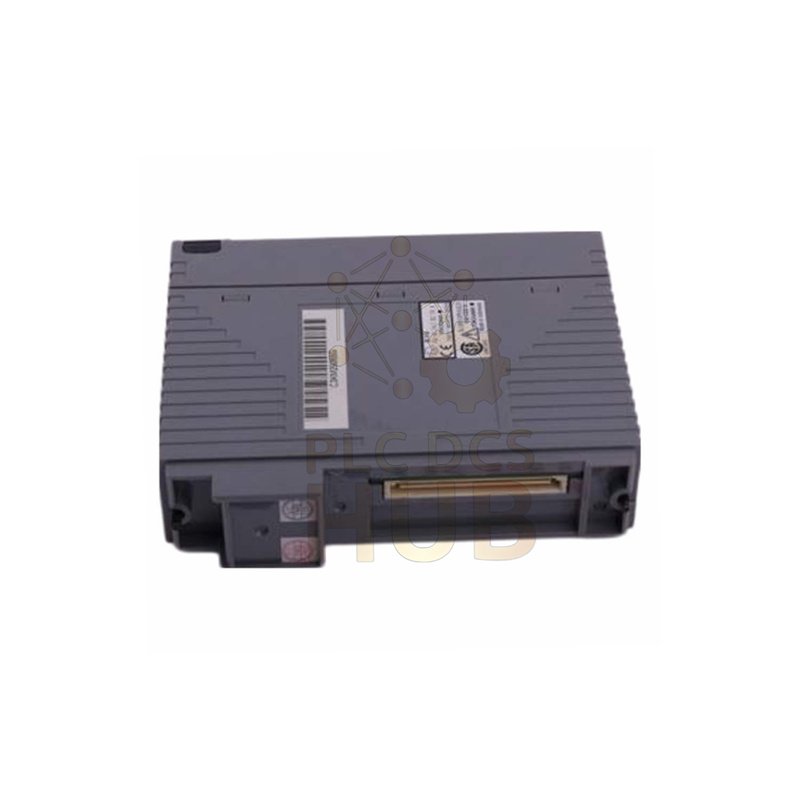

Yokogawa AAI143-S53 Input Module | 8-Channel High Accuracy

Description

Core Advantages: Versatile & Precise Input

The Yokogawa AAI143-S53 module is a precise interface for process control. It connects directly to various field sensors. This module delivers reliable data acquisition for your Centum VP system.

Key Benefits of the AAI143-S53

• One module handles 8 voltage and current signal types.
• Features high 500VDC channel-to-channel isolation for safety.
• Offers 16-bit resolution and ±0.1% full-scale accuracy.
• Fast sampling at 100 samples per second per channel.
• Compact design saves crucial control panel space.
• Built specifically for Yokogawa Centum VP systems for easy integration.

Detailed Technical Specifications

• Brand: Yokogawa
• Model: AAI143-S53
• Series: Centum VP Analog Input Module
• Channels: 8 Isolated Channels
• Signal Types: ±10V, 0-10V, ±5V, 0-5V, ±20mA, 4-20mA
• Accuracy: ±0.1% of Full Scale
• Resolution: 16-bit
• Isolation: 500VDC between channels, 500VDC to system
• Sampling Rate: 100 samples/sec/channel
• Power Supply: 24 VDC
• Operating Temperature: 0°C to 50°C
• Dimensions (WxHxD): 31 mm x 120 mm x 112 mm
• Weight: Approx. 0.3 kg
• Noise Immunity: Built-in filtering for industrial environments.
• Connection: Secure screw terminal block.

Compatibility Information

This AAI143-S53 module is designed for the Yokogawa Centum VP process control system. Please verify your system version.

Simple 4-Step Installation

1. Disconnect all system power for safety.
2. Insert the module into an empty slot on the Centum VP rack.
3. Tighten the mounting screws and connect sensor wiring.
4. Apply power and configure the module in the engineering software.

Maintenance & Diagnostics

Module status is monitored through system software. LED indicators show power and fault conditions. Periodically check wiring terminals for tightness.

Typical Application Scenarios

• Process variable monitoring (temperature, pressure) in chemical plants.
• Centralized signal acquisition from multiple sensors in power plants.
• Flow and level control in water treatment facilities.
• Any Centum VP system requiring high isolation and mixed signal types.

Expert Questions & Answers (FAQ)

Can this module mix voltage and current signals on different channels?

Yes, each channel of the AAI143-S53 can be independently configured for voltage or current input.

What is the practical benefit of 500VDC isolation?

It prevents a fault on one channel from affecting others or the main system, greatly improving safety and reliability.

What is the main difference from the AAI141 module?

The AAI143-S53 supports multiple voltage signals and has channel isolation. The AAI141 only supports 4-20mA and is non-isolated.

What common field issue causes unstable readings?

Running signal cables alongside power cables is a frequent cause. Always use shielded cables and separate conduits.

How do I choose the right module for my system?

First confirm you have a Centum VP system. Then count your needed signal types and quantity. For high isolation and mixed signals, the AAI143-S53 is ideal.

Packaging, Shipping & Warranty

• Package Includes: One individually packed AAI143-S53 module.
• Shipping Methods: We ship globally via FedEx, UPS, and DHL for reliable delivery.
• Warranty: All modules come with a 12-month warranty from the delivery date.
