Description

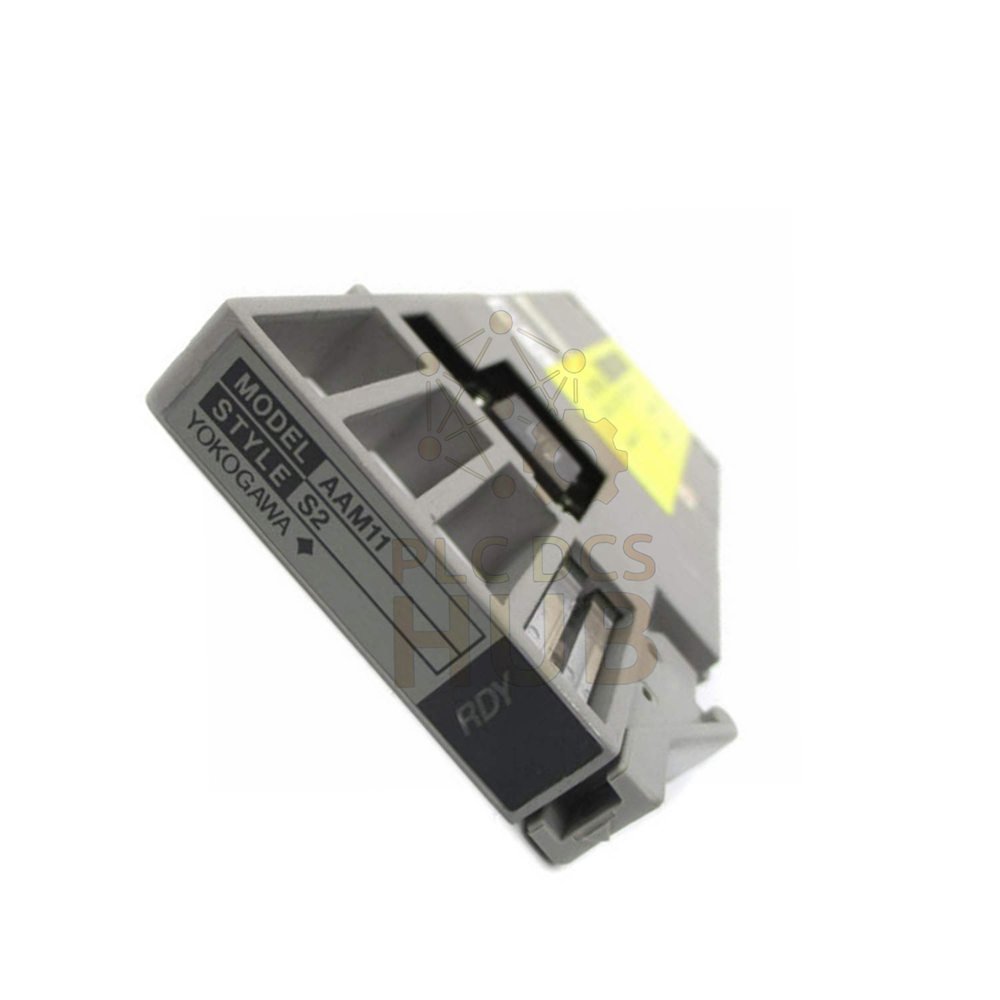

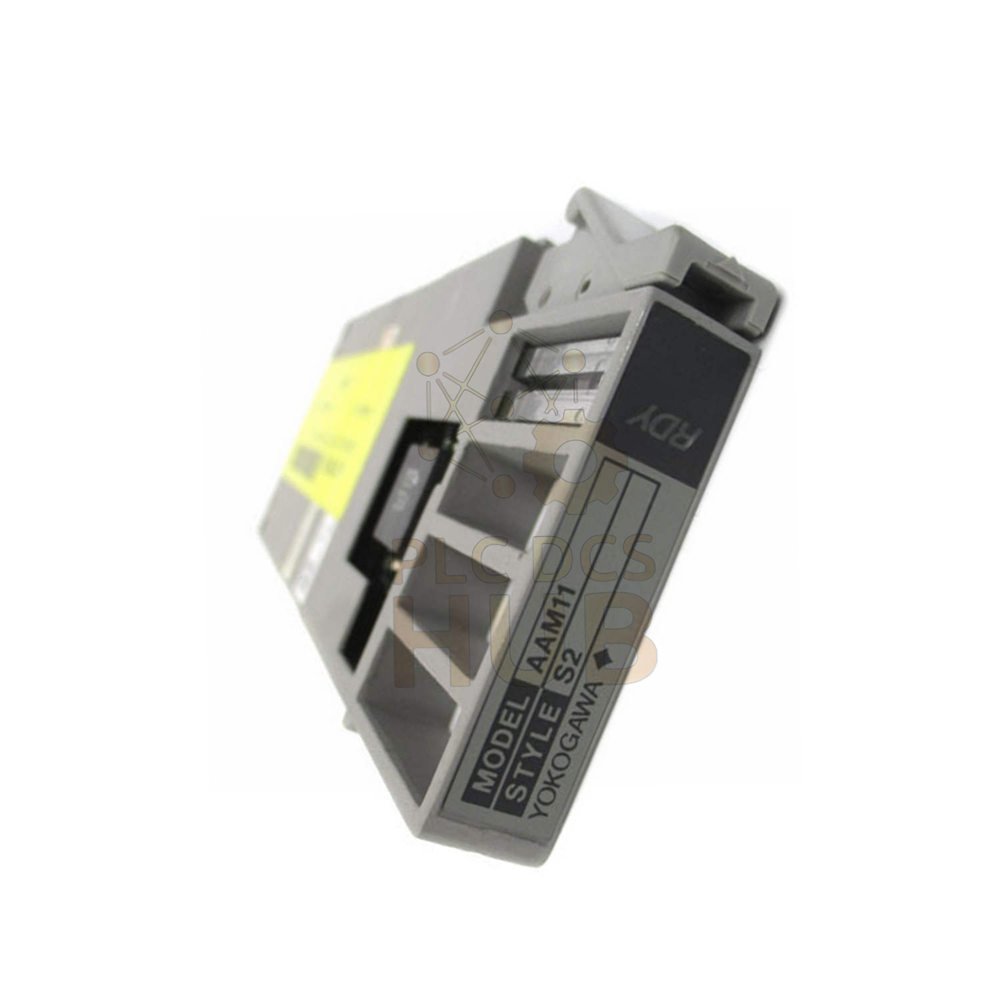

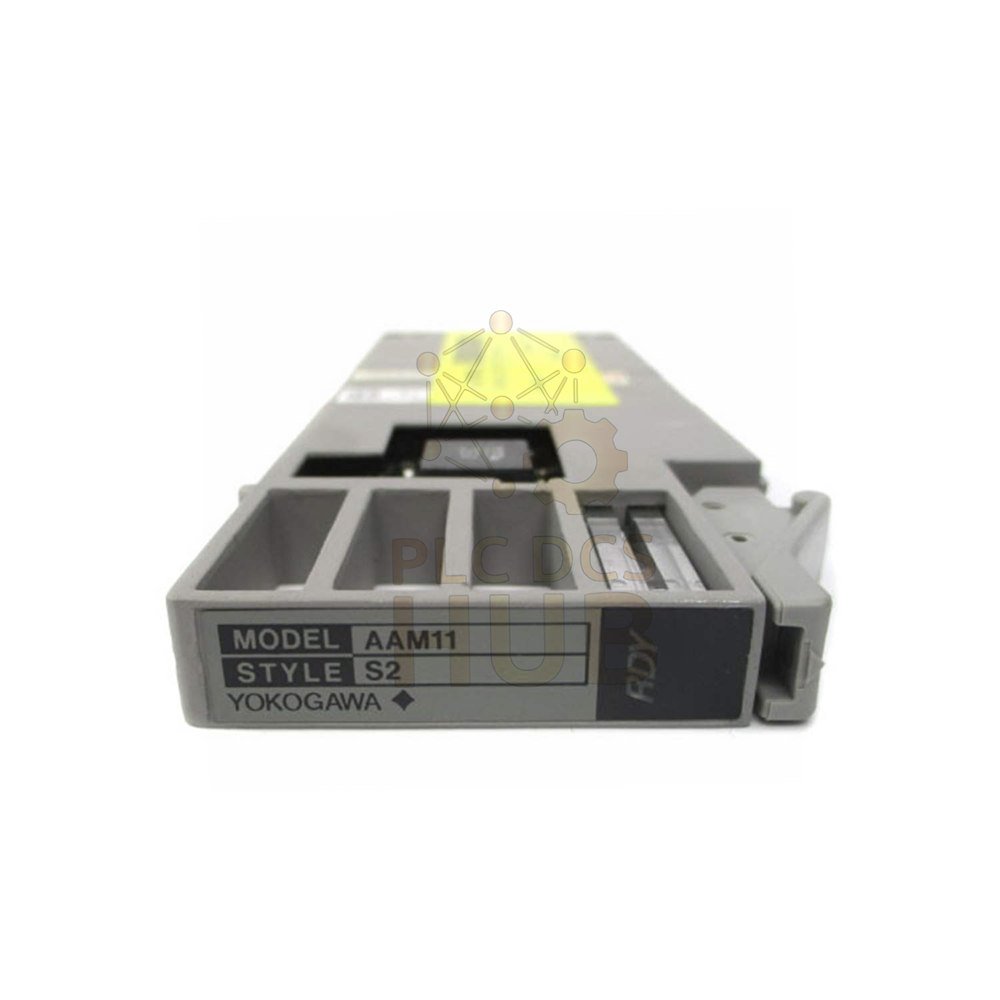

Product Introduction – Yokogawa AAM11 Analog Input Module
- Brand: Yokogawa
- Model: AAM11
- Series: Yokogawa Centum VP / CENTUM CS
- Module Type: Current / Voltage Analog Input Module
- Channel Type: Single-channel input
- The AAM11 converts analog signals into digital data.
- Designed for precise process monitoring tasks.
- Accepts transmitter and sensor signals directly.
- High accuracy ensures stable control decisions.
- Automatic range detection simplifies setup.
- Built for continuous industrial operation.
Main Product Advantages
- Automatic signal type recognition.
- Integrated square root calculation function.
- Fast fault detection improves safety.
- Alarm output supports system protection.
- Stable reading under electrical noise.
- Compact design saves cabinet space.
- Easy replacement reduces maintenance time.
Technical Specifications
- Input Signal: 4–20 mA DC or 0–10 V DC
- Input Accuracy: ±0.1% of reading
- Input Current Range: -10 to 30 mA DC
- Input Voltage Range: -10 to 30 V DC
- Digital Output: 0–4095 counts
- Resolution: 16-bit conversion
- Update Period: 50 ms
- Power Consumption: ≤300 mA at 5 V DC
- Operating Temperature: -20°C to 60°C
- Humidity: 10–90% RH non-condensing
- Signal Processing: Digital filtering included
- Input Impedance: High stability design
- Noise Immunity: Industrial EMC resistant
- Isolation Protection: Internal circuit protection
Extended Performance Data
- Conversion linearity better than ±0.05% typical.
- Long-term drift less than ±0.02% per year.
- Fast recovery after signal interruption.
- Supports continuous signal diagnostics.
- Designed for 24-hour plant operation.
- Stable measurement in vibration environments.
Configuration Breakdown (Tree Structure)
- AAM11 Base Model
- ├─ Signal Mode
- ├─ AI = Analog current input
- └─ AV = Analog voltage input
- ├─ Function Options
- ├─ SR = Square root extraction enabled
- └─ AL = Alarm output supported
- └─ System Compatibility
- └─ CENTUM VP / CENTUM CS systems
Installation Guidance
- Insert module into control system rack slot.
- Confirm signal wiring before powering.
- Separate analog cables from high voltage lines.
- Ensure cabinet grounding for accuracy.
- Verify signal type during commissioning.
Operation & Maintenance Benefits
- No manual range adjustment needed.
- Built-in diagnostics reduce troubleshooting time.
- Status monitoring improves maintenance planning.
- Hot maintenance supported in many systems.
- Simple calibration procedures.
Typical Applications
- Flow transmitter monitoring
- Pressure measurement systems
- Temperature process supervision
- Chemical plant automation
- Energy and utility control systems
Warranty & Shipping
- 12-month warranty after shipment.
- Delivery via FedEx, UPS, and DHL.
- Anti-static industrial packaging included.
Professional FAQ & Buying Advice
- How do I choose between current and voltage input use?
- Select current signals for long cable runs. Voltage suits short distance sensors.
- Why is square root extraction useful?
- It helps calculate flow signals from differential pressure transmitters.
- What causes unstable readings during startup?
- Signal grounding or loose terminals are common reasons.
- Is one channel enough for critical measurement?
- Use redundant modules when process safety is important.
- What should be checked before ordering?
- Confirm controller compatibility and signal type from field devices.
