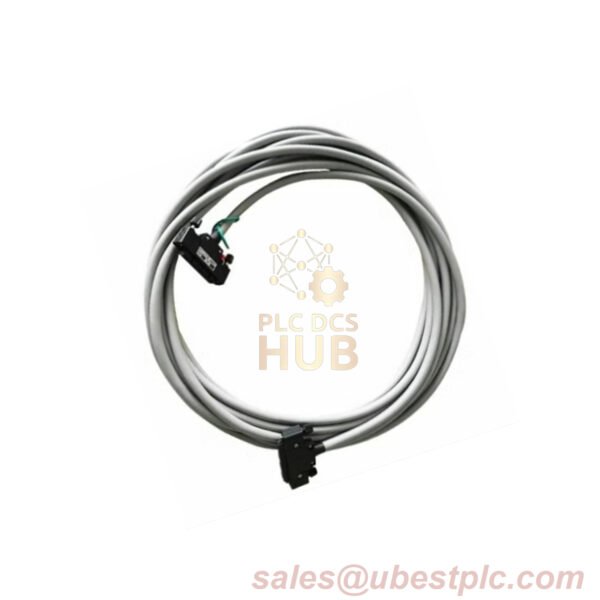

The Yokogawa YCB301 ESB Bus Cable (36-36 pins) YCB301-C100 is a high-reliability industrial-grade cable designed for seamless communication in Yokogawa’s ESB (Enhanced Serial Backbone) systems. Available in lengths from 20 cm to 8 meters, this shielded cable ensures noise-resistant data transmission between field devices and control systems. Precision-engineered with 36-pin connectors on both ends, it meets rigorous industrial standards for stability in harsh environments.
Technical Specifications
- Base Model: YCB301-C100 (36-36 pins)
- Suffix Code & Length Options:
- -C020: 20 cm (0.2 m)
- -C100: 1.0 m (3.28 ft)
- -C200: 2.0 m (6.56 ft)
- -C300: 3.0 m (9.84 ft)
- -C400: 4.0 m (13.12 ft)
- -C600: 6.0 m (19.68 ft)
- -C800: 8.0 m (26.24 ft)
- Electrical:
- Connector Type: 36-pin male to 36-pin male
- Shielding: Double-layer (foil + braided copper)
- Impedance: 110 Ω ±10% (1 MHz)
- Mechanical:
- Cable Jacket: PVC-free PUR (oil/abrasion-resistant)
- Bend Radius: ≥7.5x cable diameter
- Temperature Range: -20°C to +75°C (-4°F to +167°F)
