IMI Delivers Record-Sized Choke Valves for North Sea Unmanned Platform

IMI has achieved a significant milestone in industrial valve manufacturing. The company delivered the largest production choke valves ever made for an unmanned North Sea platform. This achievement demonstrates advanced capabilities in flow control technology for extreme environments.

Technical Specifications of the Giant Valves

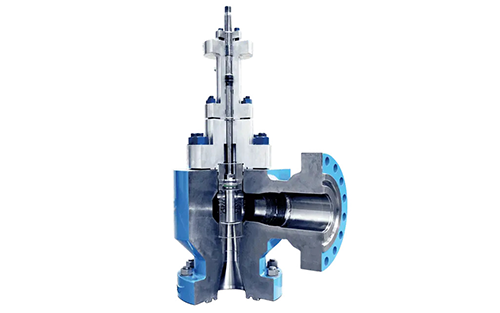

These massive 100D DRAG valves measure 20 by 20 inches with ASME 4500 rating. They withstand design pressures of 686 barg in demanding offshore conditions. The valve construction uses forged ASTM A182 F22 Cl materials for maximum strength. Additionally, internal Inconel 625 weld overlay provides superior corrosion resistance.

Advanced Technology for Extreme Conditions

IMI’s patented DRAG technology features solid tungsten carbide trim. This material choice ensures extreme durability against erosion. Moreover, the multi-stage, multi-turn design enables precise flow control. These features are crucial for high-pressure, high-flow applications in industrial automation systems.

Unmanned Platform Applications and Challenges

The valves serve a revolutionary unmanned production platform. This installation presents unique operational challenges for control systems. Remote environments demand exceptional reliability and safety standards. Consequently, these valves enable efficient production without constant human supervision.

Industry Significance and Market Context

This delivery represents a major engineering achievement for offshore automation. According to MarketsandMarkets, the global industrial valves market will reach $98.2 billion by 2027. Furthermore, the offshore sector increasingly adopts unmanned facilities for cost efficiency and safety. This trend drives demand for robust control systems and industrial automation components.

Integration with Industrial Control Systems

Large-scale valves like these require sophisticated control integration. They typically interface with DCS and PLC systems for automated operation. Proper integration ensures seamless communication with other factory automation equipment. From PLCDCSHUB’s perspective, such advanced valves demonstrate why reliable control components matter. For quality industrial automation components that support critical infrastructure, explore our selection at PLCDCSHUB.

Key Technical Advantages for Industrial Users

• Extreme Pressure Handling: 686 barg rating for high-pressure applications
• Superior Materials: Tungsten carbide trim for erosion resistance
• Corrosion Protection: Inconel 625 overlay for harsh environments
• Remote Operation: Designed for unmanned facility requirements
• Industry Compliance: Meets ASME and ASTM standards for quality assurance

Future Implications for Industrial Automation

This project sets new standards for remote operations in several ways. It demonstrates reliable performance in completely unmanned environments. The success also validates advanced materials for extreme service conditions. Therefore, similar approaches may spread to other industrial automation sectors. This includes chemical plants, power generation, and other critical control systems applications.

Frequently Asked Questions (FAQ)

• • What makes these choke valves unique for industrial automation? Their record size, extreme pressure rating, and unmanned operation capability represent significant advances in control valve technology for automated systems.

How do such large valves integrate with control systems? They typically connect to DCS or PLC systems using positioners and actuators, enabling precise automated flow control despite their massive size.

Why are unmanned platforms important for industrial automation? They reduce operational costs, improve safety by removing personnel from hazardous environments, and demonstrate fully automated industrial operations.
