Description

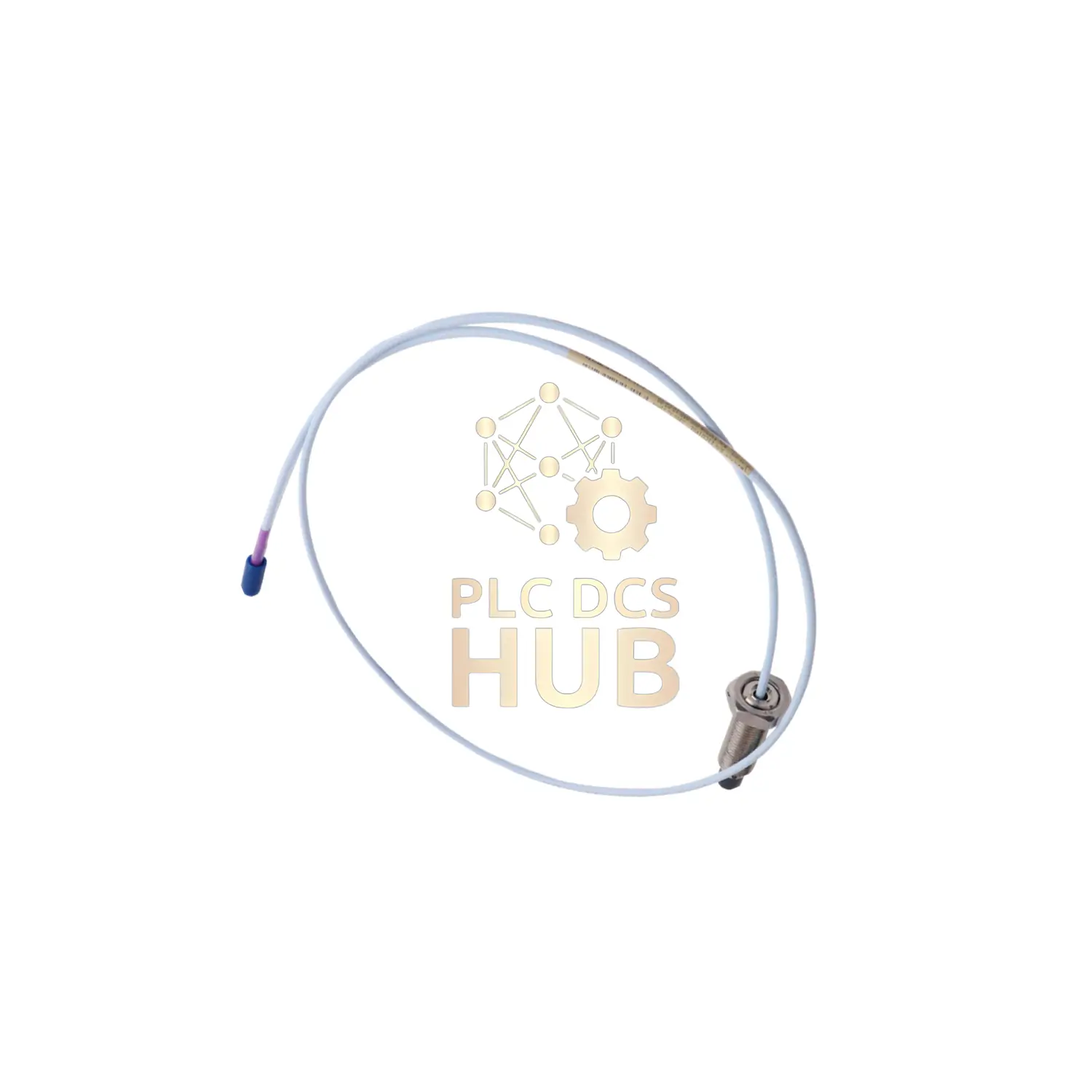

Bently Nevada 3300 XL Standard Cable Probe – 1 Meter
Product Identification Code
Complete Part Number: 330707-00-20-10-02-00
- Base Model: 330707 (11mm Probe)
- Thread: 5/8-18 UNF
- Unthreaded Section: 00 = 0 inch
- Case Size: 20 = 2.0 inch
- Wire Length: 10 = 1.0 meter
- Connector: 02 = Standard ClickLoc
- Approvals: 00 = Not required
Key Measurements
- Electrical Resistance: 5.9Ω ±0.5
- Thread Fit: 0.938 inch max depth
- Mounting Torque: 15.2 N•m (133 in•lb)
- Bend Limit: 25.4mm minimum
- Temperature: -51°C to +177°C
- Cable Type: 75Ω triaxial
- Weight: 0.17kg
Construction Details
- Probe Tip: PPS plastic
- Housing: 304 stainless steel
- Seal: Viton O-ring design
- Cable: FEP insulation
- Connector: Standard ClickLoc
Installation Guide
- Max torque: 45.2 N•m (400 in•lb)
- Connector torque: Finger tight only
- Min bend radius: 25.4mm (1 inch)
- Storage temp: Above -34°C
- No pre-use pressure testing
Quality & Shipping
- Made in USA
- COO document available
- 12-month product warranty
- FedEx/UPS/DHL delivery
Frequently Asked Questions
Q: What cable type does this model have?
A: Standard triaxial cable (non-FluidLoc)
Q: Are agency approvals included?
A: No certifications (option 00)
Q: Can I use this in cold environments?
A: Avoid storage below -34°C to protect seals
Q: What thread size is the housing?
A: Industrial 5/8-18 UNF thread
Q: Is this version armored?
A: No armor – standard stainless steel case
