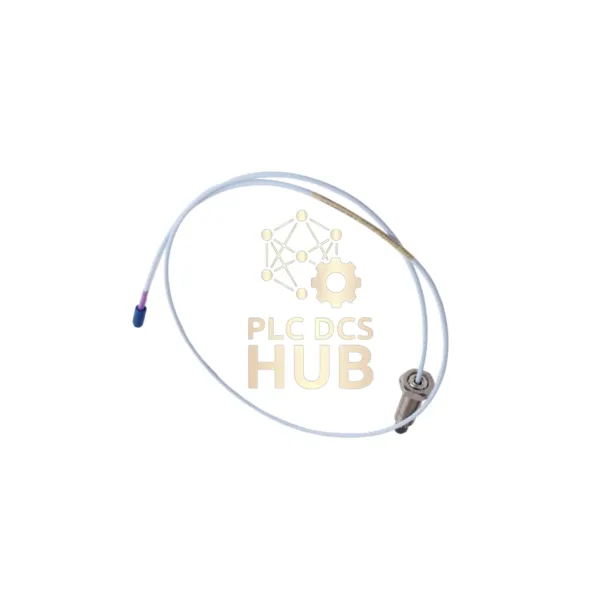

11 mm Proximity Probes Bently Nevada 330707-00-10-90-02-00

Description

Bently Nevada 3300 XL Proximity Probe: Precision Industrial Monitoring

New USA-made 3300 XL probe (Part 330707-00-10-90-02-00) in factory packaging. 12-month warranty. Ships worldwide via FedEx, UPS, DHL.

Part Number Details: 330707-00-10-90-02-00

• Main Features
  • 330707: 11mm probe, 5/8-18 UNF thread, no armor
  • -00: 0 inch unthreaded section
• Dimensions
  • -10: 1.0 inch case length
  • -90: 9.0 meter cable
• Connections
  • -02: ClickLoc connector + standard cable
  • -00: No special approvals needed

Technical Specifications

• Electrical: 8.5 Ω resistance ±1.1 Ω
• Thread Size: 5/8-18 UNF
• Thread Engagement: Max 0.938 inch
• Installation Torque: 15.2 N•m recommended
• Weight: 0.17 Kg
• Bend Radius: 25.4 mm minimum
• Seal Material: Viton O-ring
• Cable Type: 75 Ω triaxial FEP

Durability Features

• Stainless steel body (AISI 304)
• Chemical-resistant PPS tip
• Withstands extreme temperatures
• Pressure-sealed design

Installation Guide

• Finger-tighten connector (max 0.565 N•m)
• Keep above -34°C to protect seals
• Use proper thread engagement
• Avoid sharp cable bends

Warranty & Shipping

• 12-month warranty
• Fast global delivery options
• Original factory packaging

Expert Questions Answered

• Q: What thread types are available?
  A: Also compatible with M16x1.5 (24mm engagement) and M14x1.5 (21mm engagement).
• Q: Can I use this in freezing conditions?
  A: Avoid below -34°C to prevent seal damage.
• Q: Is the cable armored?
  A: This model (-00) has no armor; choose armored versions for rough areas.
• Q: What’s the probe tip material?
  A: Polyphenylene sulfide (PPS) for chemical resistance.
• Q: Can I get pressure testing?
  A: Contact us for custom pressure seal tests.
