Description

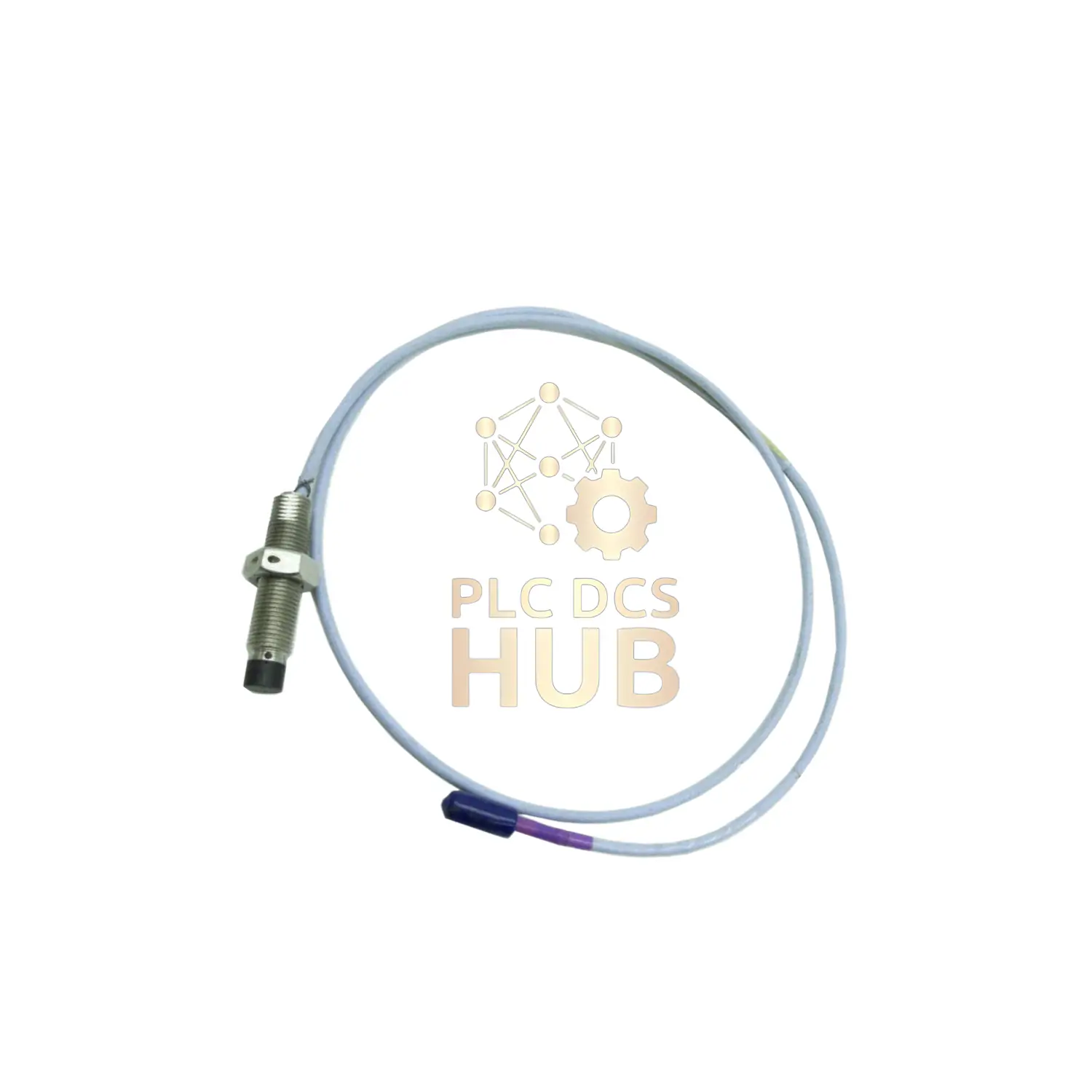

Bently Nevada Long-Reach Vibration Probe with 9m Cable
Industrial 11mm sensor with extended 9-meter cable for remote monitoring. Made in USA for reliable machinery protection.
Key Advantages
- Long 9.0m (29.5 ft) cable reach
- Standard FEP-insulated triaxial cable
- Works in -51°C to +177°C extremes
- Stainless steel construction
- Simple installation
Product Identification
Brand: Bently Nevada
Model: 3300 XL 11mm Probe
Full Code: 330707-00-24-90-02-00
Part Number Details:
Base: 330707 (5/8-18 UNF)
Unthreaded: 00 (0 inches)
Case: 24 (2.4 inches)
Cable: 90 (9.0 meters)
Connector: 02 (ClickLoc standard)
Approvals: 00 (Not required)
Technical Specifications
- Cable length: 9.0 meters (29.5 ft)
- Electrical resistance: 8.5 ohms ±1.1
- Cable type: 75 Ω triaxial
- Insulation: FEP material
- Thread: 5/8-18 UNF
- Weight: 0.17 kg
- Min bend radius: 25.4mm (1 inch)
Installation Guide
- Optimal torque: 15.2 N•m (133 in•lb)
- Max torque: 45.2 N•m (400 in•lb)
- Max thread depth: 0.938 inch
- Connectors: Hand-tighten only
- Avoid use below -34°C (-30°F)
Compatibility
- Bently Nevada 3300 systems
- Equipment needing long cable runs
- Standard monitoring setups
Package Contents
- 1 proximity probe with 9m cable
- ClickLoc connector
- Optional origin certificate
- 12-month product warranty
Shipping Information
- Package weight: 0.17 kg
- FedEx Ground
- UPS Standard
- DHL Economy
Frequently Asked Questions
Q: How long is the cable?
A: 9.0 meters (29.5 feet) – longest available option.
Q: Does it need special approvals?
A: No, standard version without certifications (option 00).
Q: What’s the max temperature limit?
A: +177°C (351°F) continuous operation.
Q: Can I bend the cable sharply?
A: Minimum bend radius is 25.4mm (1 inch).
Need setup guidance? Download complete manual:
Download Installation Guide
