Description

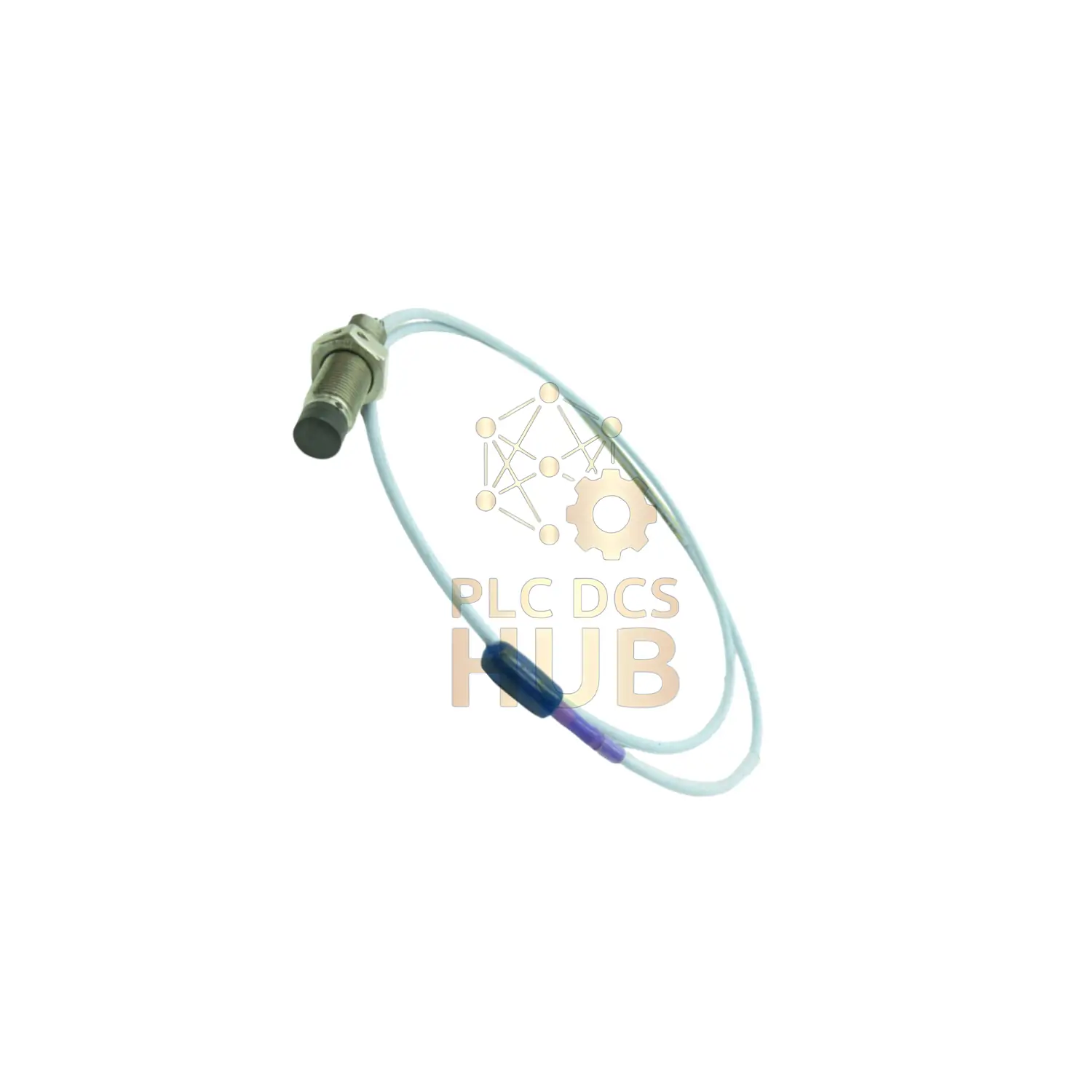

Precision Machinery Monitoring: Bently Nevada 3300 XL Proximity Probe
Monitor critical equipment with industrial-grade precision. This 11mm vibration probe features armored construction for harsh environments. Made in USA with global certifications.
Essential Specifications
- Brand: Bently Nevada
- Model: 330707-00-24-50-12-05
- Sensing Range: 11mm proximity detection
- Accuracy: ±0.8Ω resistance tolerance
- Signal Type: 75Ω triaxial output
- Temp Range: -51°C to +177°C (-60°F to +351°F)
- Cable Length: 5.0 meters with FluidLoc protection
- Thread Type: 1/2-20 UNF
Robust Construction
- Tip: Polyphenylene sulfide (chemical-resistant)
- Case: AISI 304 stainless steel
- Cable: FEP-insulated triaxial with SST armor
- Seal: Viton O-ring pressure barrier
Installation Guide
- Max torque: 15.2 N•m (133 in•lb)
- Thread engagement: Max 0.750 inch
- Bend radius: Minimum 25.4mm (1.0 inch)
- Use only with 5m Proximitor sensors
Certified Performance
Multiple agency approvals (Option 05) – meets global industrial standards. Certificate of Origin available.
Complete Package
- 1x 3300 XL Probe with ClickLoc connector
- Installation documentation
- 12-month warranty
- Shipping weight: 0.17kg
Global Shipping
Fast delivery via FedEx, UPS, or DHL. Tracking provided for all orders.
Common Questions
Q: Pressure rating?
A: Contact custom design for pressure testing
Q: Cold temperature use?
A: Below -34°C may affect seal longevity
Q: Cable options?
A: Available in 1m, 5m, or 9m lengths
