Description
Product Overview

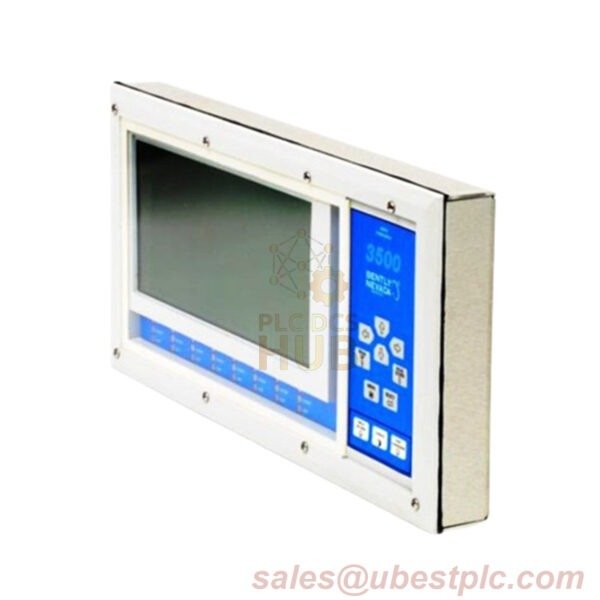

The Bently Nevada 135785-01 Display Unit (3500/93) is an API 670-compliant interface for the 3500 Machinery Protection System, providing real-time visualization of rack data including system alerts, channel status, and module diagnostics.
Key Features for 135785-01
- Triple Status Indicators: Rack OK/Alert/Danger LEDs
- 24-channel status LEDs (8x OK/Alert/Danger)
- API 670-compliant event logging
- Supports remote monitoring up to 4000 ft
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 203.2×412.8×31.2mm |
| Weight | 2.1 kg |
| Operating Temp | -20°C to +65°C |
Mounting Configurations
| Type | Range | Requirements |
|---|---|---|
| Face Mount | 0 ft | DIM in Slot 15 |
| Panel Mount | 100 ft | External power for 4000 ft |
Industrial Applications
- Gas turbine control rooms
- Power plant distributed control systems
- Offshore platform machinery monitoring
Technical Support: For API 670 compliance documentation or mounting diagrams:
sales@ubestplc.com
