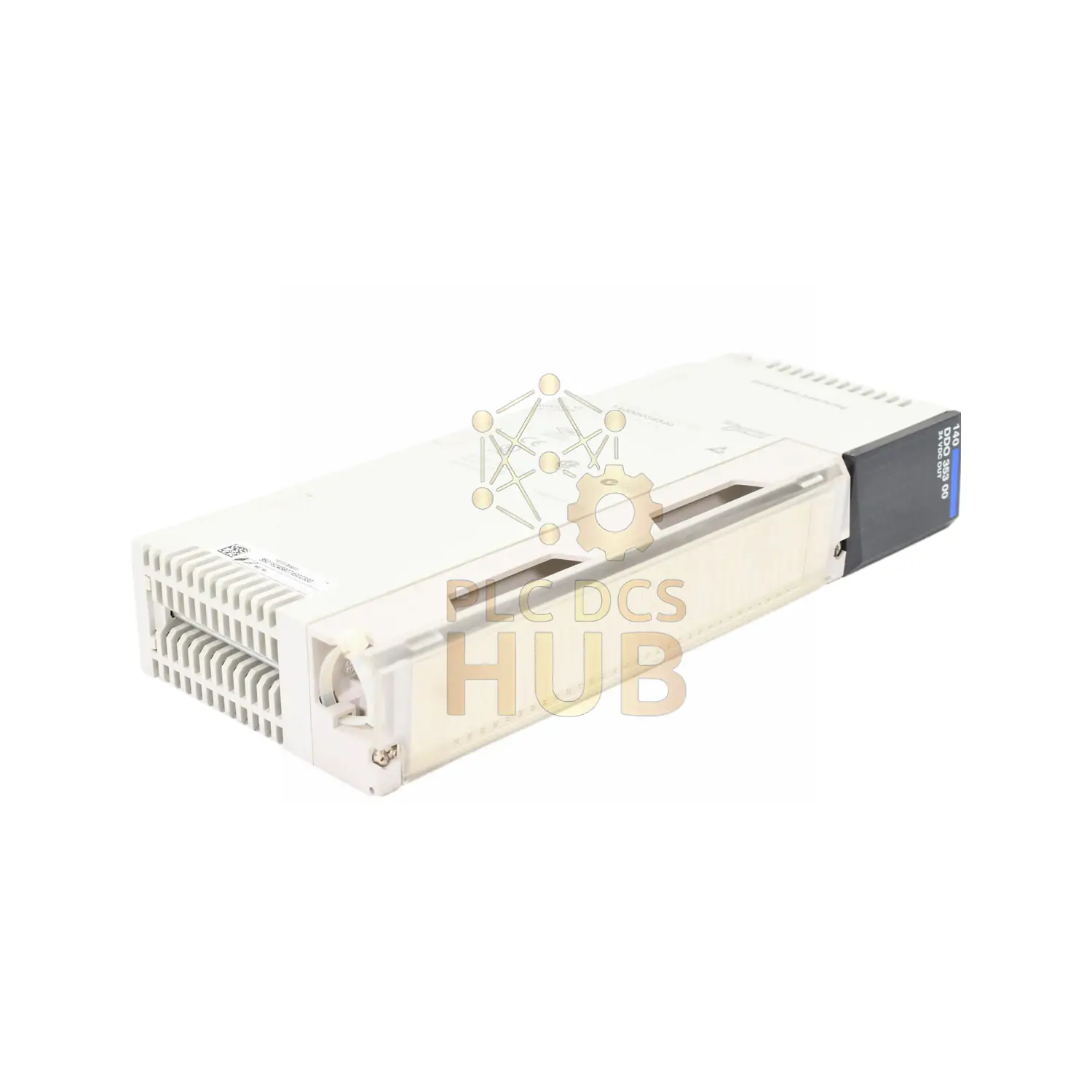

Schneider Electric 140DDO35301 – 24V DC Output Module
High-power discrete output module for industrial control systems. Delivers 16A total current with fuse protection. Built for demanding automation applications requiring reliable switching.
???? Technical Specifications
| Brand | Schneider Electric |
| Model | 140DDO35301 |
| Series | Modicon Quantum |
| Output Voltage | 24V DC (19.2-30V) |
| Max Current | 16A module / 4A group |
| Voltage Drop | <0.4V @ 0.5A |
| Bus Current | 330 mA |
| Power Dissipation | 5W |
Output Performance
- Absolute Max Voltage: 50V (1s pulse)
- Fuse Protection: 5A per group + 3A per point
- Load Management:
L(H) = 0.5 / (I² × fsw) - Leakage Current: 1mA @ 24V
Protection & Safety
- Dedicated 5A fuses per group
- Low voltage drop ensures stable operation
- CE certified for safety compliance
Installation Guide
- Mount in Quantum rack
- Maintain 5cm clearance for heat dissipation
- Verify 19.2-30V DC power supply
- Follow group current limits (4A max/group)
Packaging Details
- Output module
- Installation hardware
- Module Weight: 0.45 kg
- Package Dimensions: 31.2 × 16.3 × 4.5 cm
- Package Weight: 0.44 kg
Global Shipping
FedEx | UPS | DHL – Fast worldwide delivery
FAQ
Q: Max current per output point?
A: 3A continuous (fuse-protected)
Q: Voltage tolerance range?
A: 19.2-30V DC operating range
Q: Group current capacity?
A: 4A per group (4 groups total)
