Description

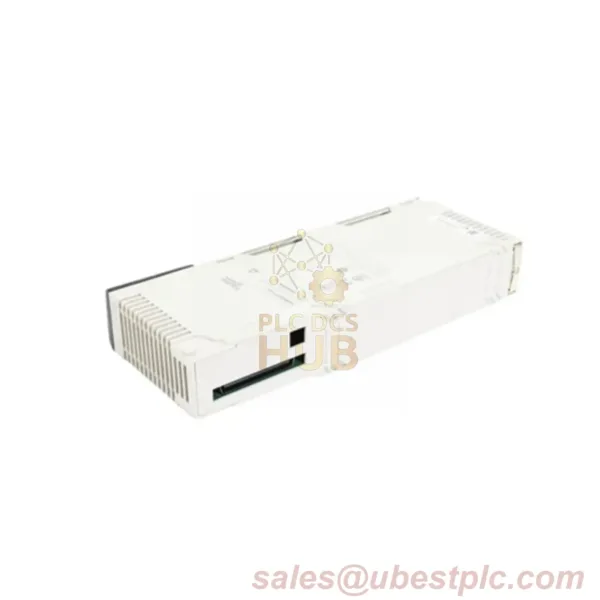

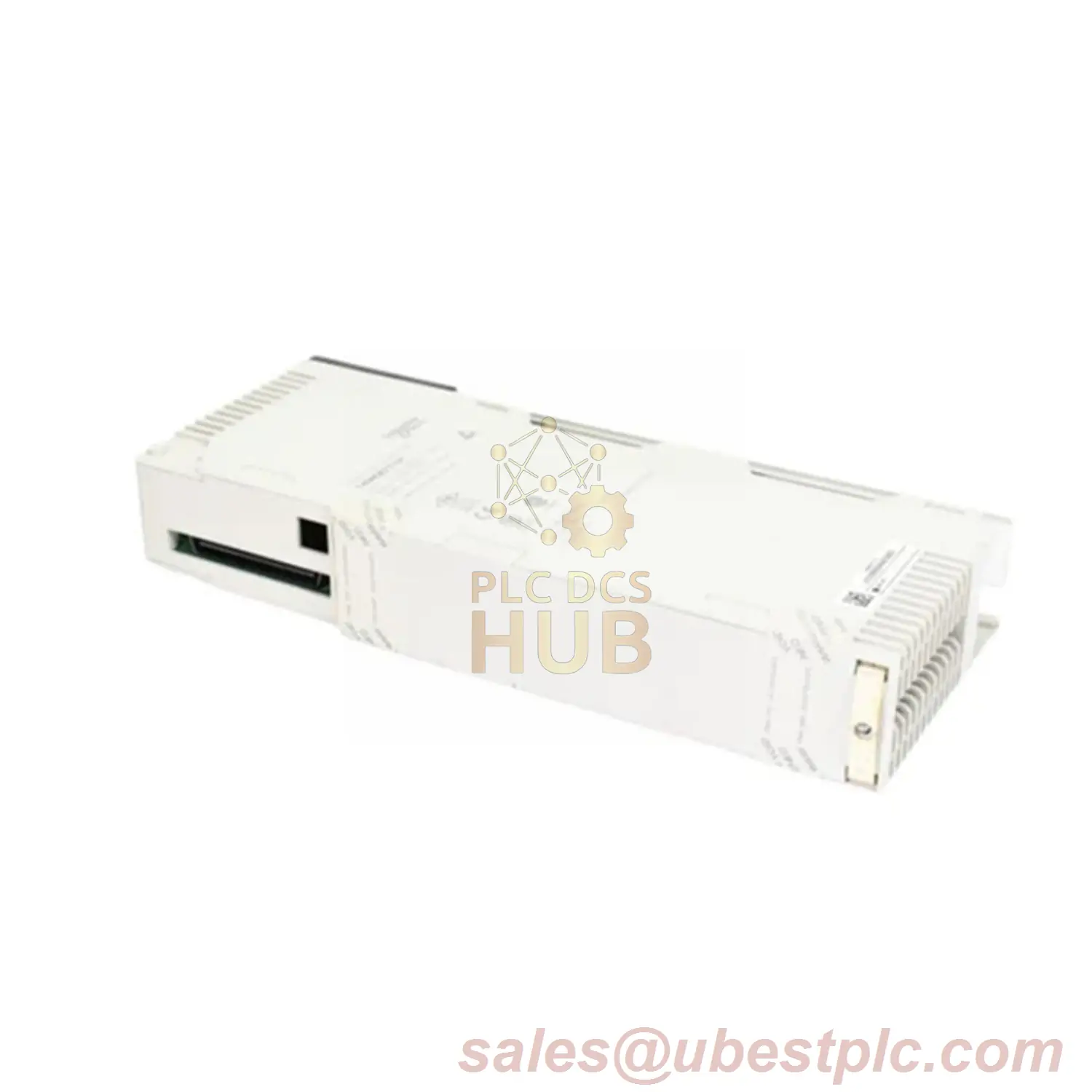

Schneider Electric 140NOC77100 Ethernet/IP Module
Connect your Modicon Quantum systems with this powerful network module. 12-month warranty included.
Technical Details
- Speed: 10/100 Mbps auto-switching
- Power Use: 500 mA at 5V DC
- Temperature Range: 0°C to 60°C
- Humidity: 10-95% (no condensation)
- Size: 5.0 x 17.0 x 32.0 cm
- Weight: 0.345 kg (0.76 lbs)
LED Status Lights
- TxActive: Green when sending data
- RxActive: Green when receiving data
- Net Status: Green=good, Red=problem
- 100MB: Green when at full speed
- Ready: Green when configured
Setup & Support
- Works with CIP messaging systems
- Uses standard Ethernet cables
- Install in IP20 protected areas
- Check lights for quick troubleshooting
Shipping Options
- Fast global delivery
- Choose: FedEx • UPS • DHL
- Tracking number included
- Usually ships same day
Common Questions
Q: How many devices can connect?
A: Up to 128 devices at the same time
Q: Does it need special cables?
A: No – uses standard Ethernet cables
Q: Can it work in hot areas?
A: Yes – works up to 60°C (140°F)
Q: What if it stops working?
A: Contact us – 12-month warranty
Q: Can I monitor the network?
A: Yes – 9 LED lights show all activity
