176449-04 3500/45 Bently Nevada Position Monitor

Description

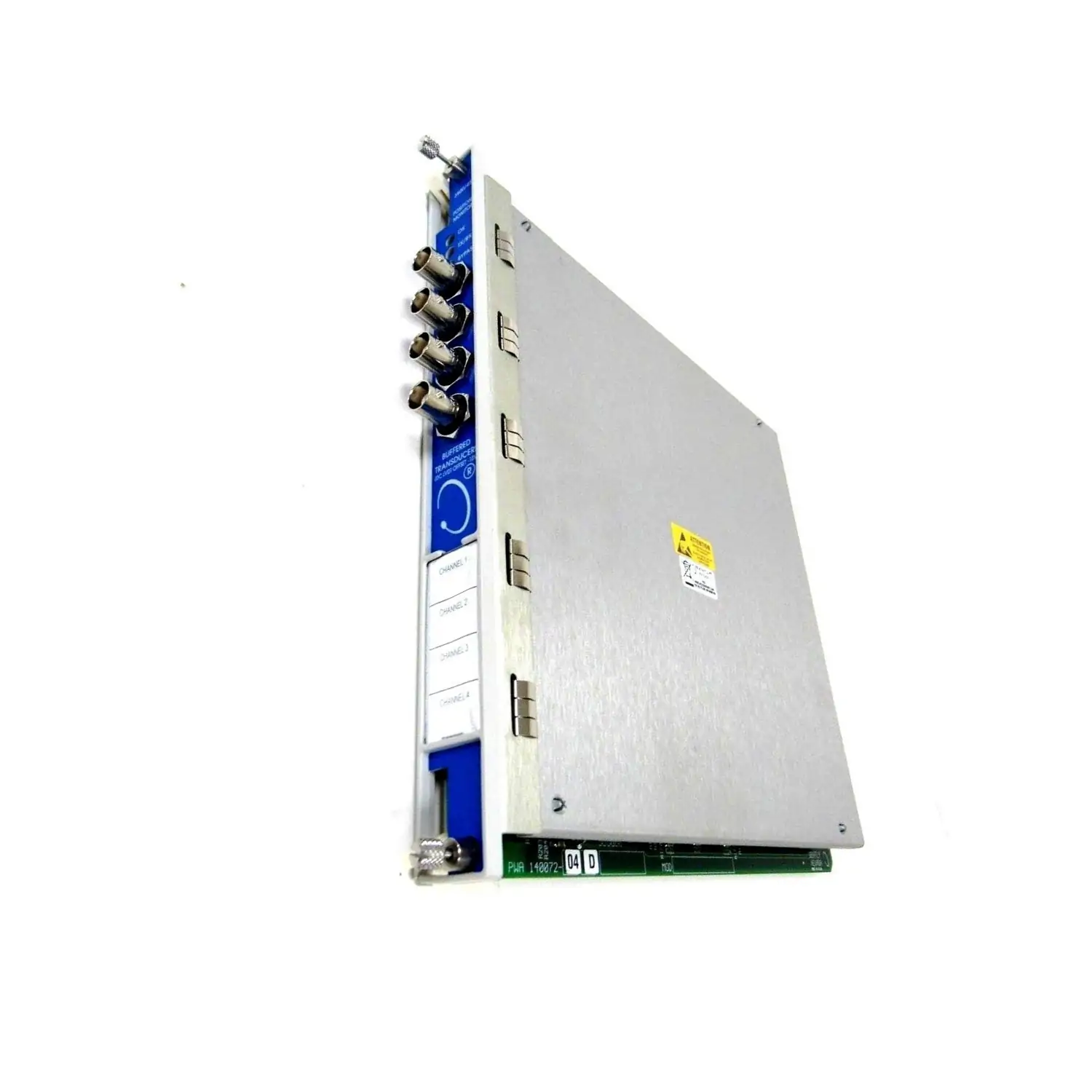

Bently Nevada 3500/45 Position Monitor Spare Parts

The 176449-04 is a **full-height position monitor module** designed for machinery health monitoring in the 3500 Series. It supports **4 input types** (LVDT, Proximitor®, AC LVDT, Rotary Potentiometer) with configurable power supplies and high-resolution outputs, ensuring precise position measurement in industrial systems.

Technical Data

• Brand: Bently Nevada
• Part No.: 176449-04
• Suffix Breakdown:
  • 176449: Base Model (Position Monitor)
  • -04: Revision/Configuration Code
• Input Types: DC LVDT, Proximitor®, AC LVDT, Rotary Potentiometer
• Input Impedance:
  • DC LVDT: 1MΩ
  • Proximitor®/RPT: 10kΩ
  • AC LVDT: 137kΩ
  • Rotary Pot: 200kΩ
• Power Consumption: 5.6W (Rotary Pot) to 8.5W (AC LVDT)
• Outputs:
  • Buffered Transducer: Coaxial connectors, 550Ω impedance
  • Recorder: 4–20mA, ±0.7% error (full temp range)
• Power Supply:
  • Proximitor®: -24Vdc
  • DC LVDT: +15Vdc
  • AC LVDT: 2.3Vrms @ 3.4kHz
  • Rotary Pot: -12.38Vdc
• Dimensions: 241.3mm x 24.4mm x 241.8mm
• Weight: 0.91kg (2.0 lbs)

Features

• Front-panel LEDs for **status monitoring** (OK, TX/RX, Bypass)
• Short-circuit protected outputs
• Supports **4–20mA recorder signals** with 12Vdc compliance

Installation

• Rack Space: 1 full-height front slot
• Compatibility: Integrates with all 3500 Series monitors and I/O modules.

Certifications

• Agency Approvals: Customizable per requirements (e.g., ATEX, SIL).

Applications

Used in automotive assembly line robotics to monitor hydraulic valve positions. Case Study: Installed in a steel rolling mill’s actuator system, achieving 99.5% position accuracy and reducing calibration downtime by 50%.
