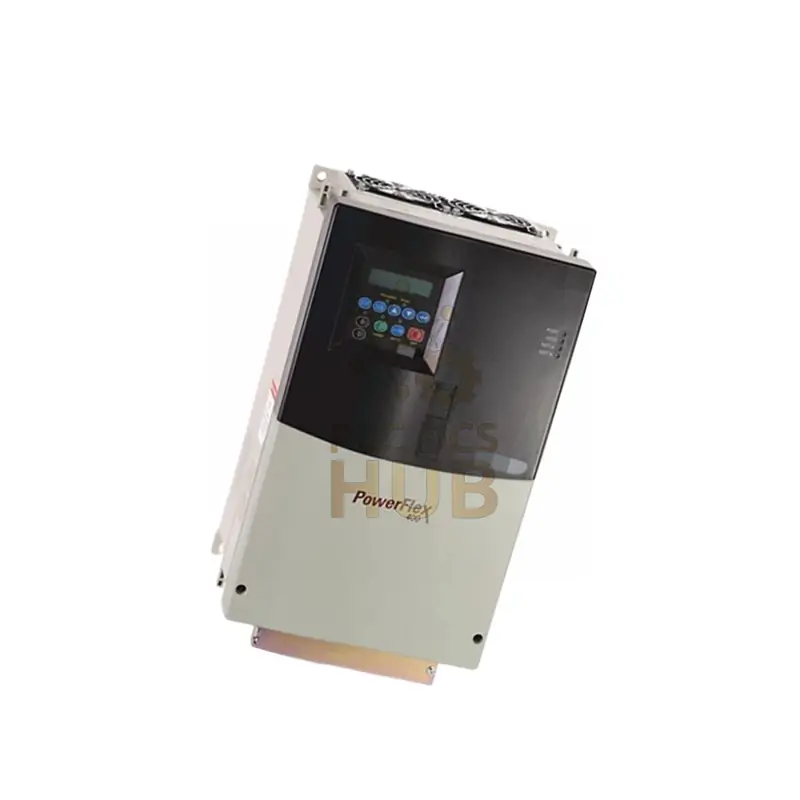

Allen-Bradley PowerFlex 400 AC Drive – 22C-B017N103 (5HP, 240V, 3-Phase)
Description
The Allen-Bradley 22C-B017N103 is a high-performance AC drive from the PowerFlex 400 series, ideal for fan and pump applications. It features a built-in PID controller for precise pressure/flow control and supports multiple communication protocols (BACnet, LonWorks, PROFIBUS). With ground fault protection and 6kV surge protection, it ensures reliable operation. The drive includes LED status indicators and accepts direct wiring for system commands.
Download the full manual: PowerFlex 400 Adjustable Frequency AC Drive Manual
Technical Data
- Brand: Allen-Bradley (Rockwell Automation)
- Model: PowerFlex 400 22C-B017N103
- Output: 5 HP (3.7 kW) | Current: 17.5A
- Voltage: 240V AC, 3-Phase
- Enclosure: Panel Mount (IP20, NEMA Open)
- Communication: RS485, BACnet, LonWorks, PROFIBUS, Ethernet/IP
- Protection: Ground fault, motor overload, 6kV transient
- Control: PID loop, on-screen speed adjustment
Installation & Compatibility
Mounts on standard panels (IP20). Compatible with DF1 port devices via serial converter. Supports multi-drop networks. Works with 3-phase motors up to 5HP.
Package & Warranty
- 1x PowerFlex 400 Drive (22C-B017N103)
- Quick-start guide
- 12-month warranty from purchase date
Shipping: FedEx, UPS, or DHL (express options available).
