Product Overview

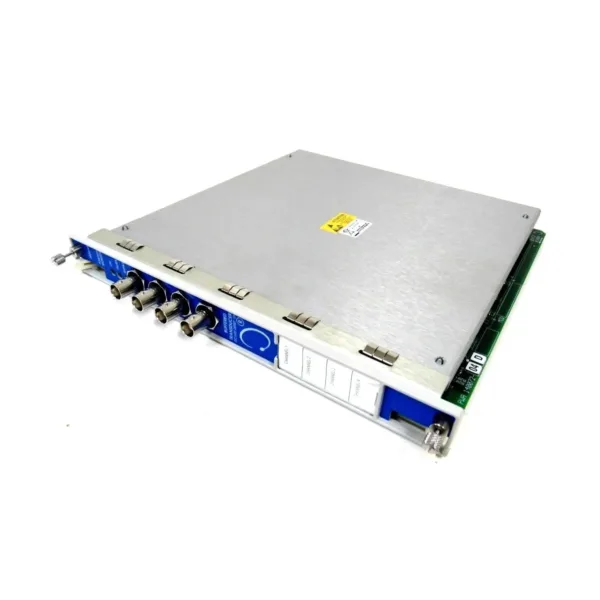

The Bently Nevada 288055-01 3500/22M Transient Data Interface (TDI) Module bridges 3500 monitoring systems with diagnostic software like System 1. Installed in Slot 1 adjacent to power supplies, it enables continuous data collection (static/dynamic) via Ethernet while maintaining machinery protection integrity.
Key Features
- Dual Functionality: Combines RIM and TDXnet capabilities
- Data Capture:
- Static data (default)
- Dynamic/high-res transient data (requires Channel Enabling Disk)
- Non-Intrusive: No impact on critical monitoring paths
- Interfaces: USB + Ethernet for software integration
Technical Specifications for 288055-01
| Parameter | Value |
|---|---|
| Operating Temp | -30°C to +65°C |
| Battery Life | 38 years (powered @50°C) 12 years (unpowered @50°C) |
| Dimensions | 241.3mm × 24.4mm × 241.8mm |
| Weight | 0.91 kg (2.0 lbs) |
Compatibility & Integration
- Monitors Supported: 3500/40M, 3500/42M, and other M-series
- Slot Requirement: 1 full-height front slot
- Software Integration: System 1, 3500 Configuration Software
Industrial Applications
- Power Plants: Turbine vibration waveform analysis
- Oil Refineries: Compressor transient data collection
- Manufacturing: Predictive maintenance systems
Support: For configuration guidance, contact sales@ubestplc.com.
