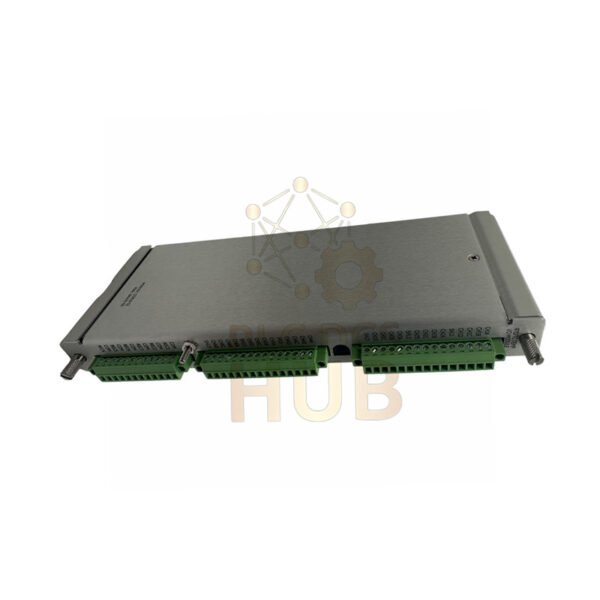

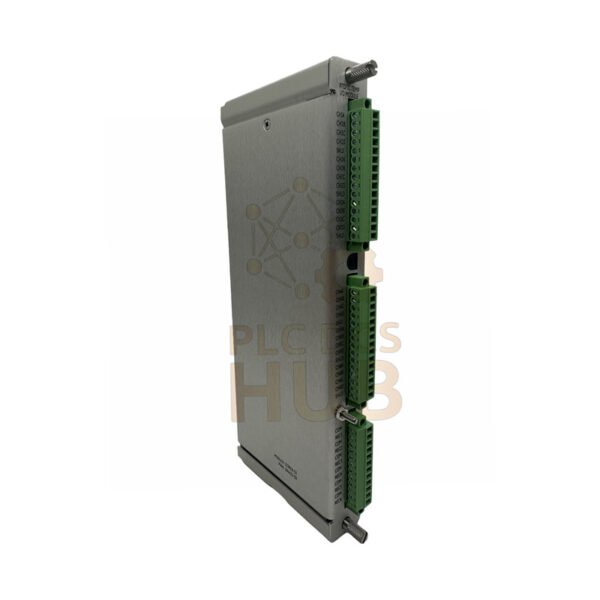

Bently Nevada 133819-02 3500 Series RTD TC Temperature I/O Module

Description

Module Role and Use Case

• Bently Nevada 133819-02 is an RTD and TC temperature I/O module.
• It belongs to the 3500 monitoring system family.
• The module reads surface and bearing temperatures.
• It supports both resistance and thermocouple sensors.
• Designed for continuous industrial operation.

Supported Sensor Inputs

• RTD Channels
  • 100 ohm platinum sensors
  • High stability for long-term use
  • Low drift over temperature range
• Thermocouple Channels
  • Type J for general heating
  • Type K for high temperature zones
  • Type T for low temperature areas
  • Type E for fast response needs

Temperature Measurement Capability

• Wide sensing range
  • -200°C to +800°C
  • -328°F to +1472°F
• Resolution suitable for process monitoring.
• Stable readings during load changes.

Accuracy and Signal Quality

• Measurement accuracy
  • ±0.1 percent of full scale
• Repeatability
  • ±0.05 percent of full scale
• Low noise signal processing.
• Consistent results across channels.

Alarm and Shutdown Interface

• Relay output configuration
  • Two SPDT relays
  • Rated 5A at 120 or 240 VAC
• Supports alert and shutdown logic.
• Reliable contact performance.

Electrical Supply Details

• Input supply voltage
  • 24 VDC nominal
• Current requirement
  • 0.5 A maximum
• Designed for rack power distribution.

Environmental Endurance

• Operating temperature
  • -30°C to +65°C
• Suitable for control room and field racks.
• Stable performance in harsh conditions.

Mechanical Characteristics

• Physical size
  • Height 142 mm
  • Width 126 mm
  • Depth 41 mm
• Module weight
  • 0.46 kg
• Compact design saves rack space.

Application Advantages

• Accurate temperature insight.
• Early warning for overheating.
• Supports critical asset protection.
• Reduces unplanned downtime.
• Trusted industrial-grade design.

Warranty and Delivery

• 12-month warranty from delivery date.
• Carefully packed before shipment.
• Fast delivery via FedEx, UPS, or DHL.

FAQ

• Can this module read both sensor types at once?
  • Yes. RTD and thermocouple inputs are supported.
• Is this suitable for bearing metal temperature?
  • Yes. It is commonly used for that purpose.
• What should be checked before purchase?
  • Confirm sensor type and rack compatibility.
• Does it support shutdown logic?
  • Yes. Relay outputs can trigger shutdown systems.
• Is this module for standalone use?
  • No. It must be installed in a 3500 rack.
