Description

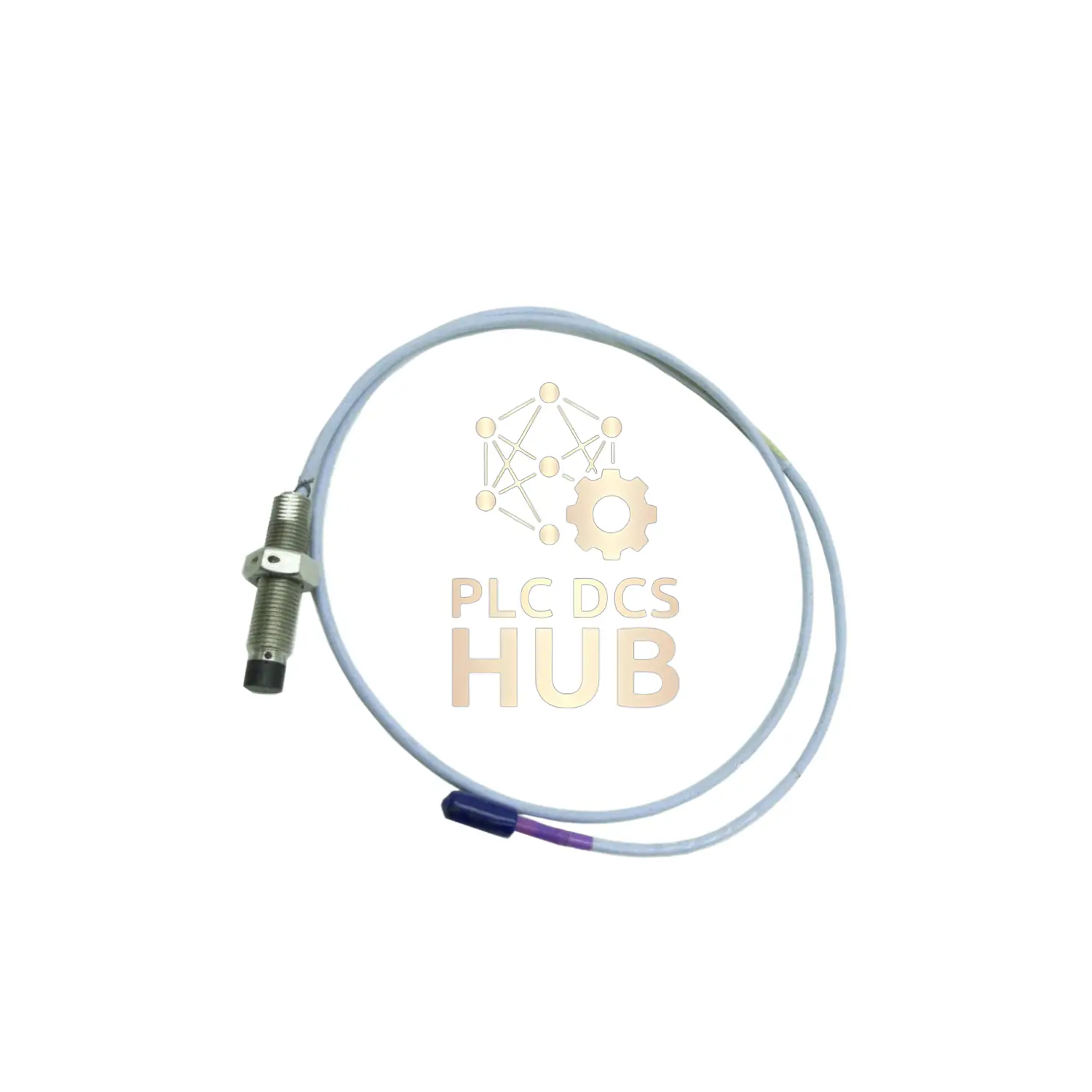

Bently Nevada 3300 XL 11mm Proximity Probe – Premium Vibration Monitoring
Industrial-grade 11mm proximity probe for precise machinery vibration measurement. Made in USA with PPS tip and stainless steel casing. Withstands extreme temperatures (-51°C to +177°C). Ideal for turbines, compressors, and rotating equipment.
Key Specifications
- Brand: Bently Nevada
- Full Model: 330708-00-24-10-12-00
- Cable Length: 1.0 metre (3.3 ft)
- Thread: 5/8-18 UNF
- Case Length: 2.4 in
- Connector: ClickLoc with FluidLoc cable
Technical Data
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | AISI 304 Stainless Steel |
| Resistance | 5.9 Ω ±0.5 (Center to Outer Conductor) |
| Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Cable Type | 75 Ω triaxial FEP insulated |
| Pressure Seal | Viton O-ring (Not pressure-tested) |
Installation Guide
- Maximum Torque: 45.2 N•m (400 in•lb)
- Recommended Torque: 15.2 N•m (133 in•lb)
- Thread Engagement: Max 0.938 in
- Connector Torque: Finger tight (Max 0.565 N•m)
- Bend Radius: Minimum 25.4 mm (1.0 in)
Compatibility
Works with Bently Nevada 3300 monitoring systems. Compatible with GE and AB vibration monitors using 11mm probes.
Package Includes
- 1x 3300 XL 11mm Proximity Probe
- Product documentation
- 12-month warranty
Shipping Options
Fast worldwide delivery via FedEx, UPS, DHL. Weight: 0.17 kg
FAQ
Q: Can I get different cable lengths?
A: Yes! Available in 1m, 5m, and 9m options
Q: Is this probe pressure-rated?
A: Features Viton O-ring seal but not pressure-tested. Contact us for custom testing
Q: Minimum operating temperature?
A: Avoid below -34°C (-30°F) to prevent seal damage
Q: Warranty coverage?
A: 12-month protection against manufacturing defects
