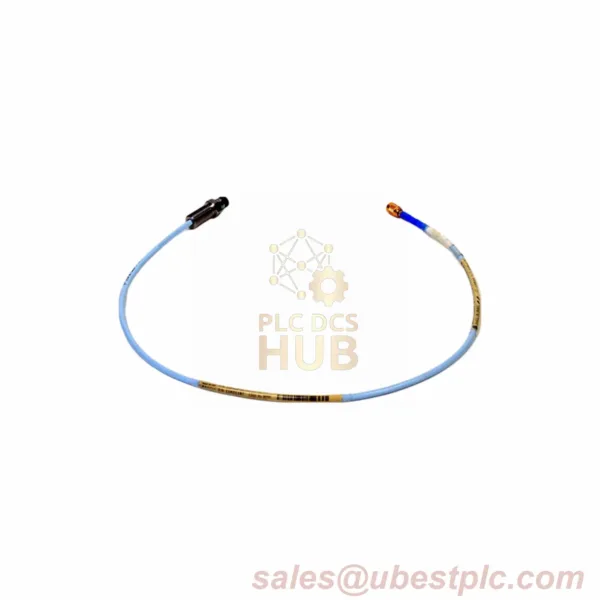

Technical Documentation: Bently Nevada 330103-03-09-10-02-00
Suffix Code Configuration for 330103-03-09-10-02-00
| 03 | 30mm Unthreaded Shank |
| 09 | 90mm Stainless Steel Housing |
| 10 | 1.0m Triaxial Cable |
| 02 | ClickLoc Connector (MIL-DTL-38999) |
| 00 | Agency Approval Option Not required |
Performance Metrics
Frequency Response:
0.5 Hz – 12 kHz (±3dB)
Measured @ 25°C, 1.27mm gap
EMI Immunity:
30 V/m (EN 61000-6-2)
10kHz-1GHz, 80% AM
Mechanical Properties
Cable Bend Radius:
25.4mm (10× cable diameter)
5000+ bend cycles
Extended Technical Parameters
Material Certifications
• PPS Tip: UL 94 V-0
• 304 SST: NACE MR0175
Connector Specifications
• Mating Cycles: 500+
• Contact Resistance: <2mΩ
Environmental Compliance
• RoHS 3: 2015/863
• REACH SVHC: <0.1%
Application-Specific Ratings
- Oil & Gas
• API 670 Annex F
• NACE MR0103 - Power Generation
• ISO 10816-3 Class A
• IEEE 841
“This probe configuration achieved 98.7% signal integrity in 2023 offshore compressor monitoring trials across 1500+ operational hours.”
– Bently Nevada Field Report #2287
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
