Product Description

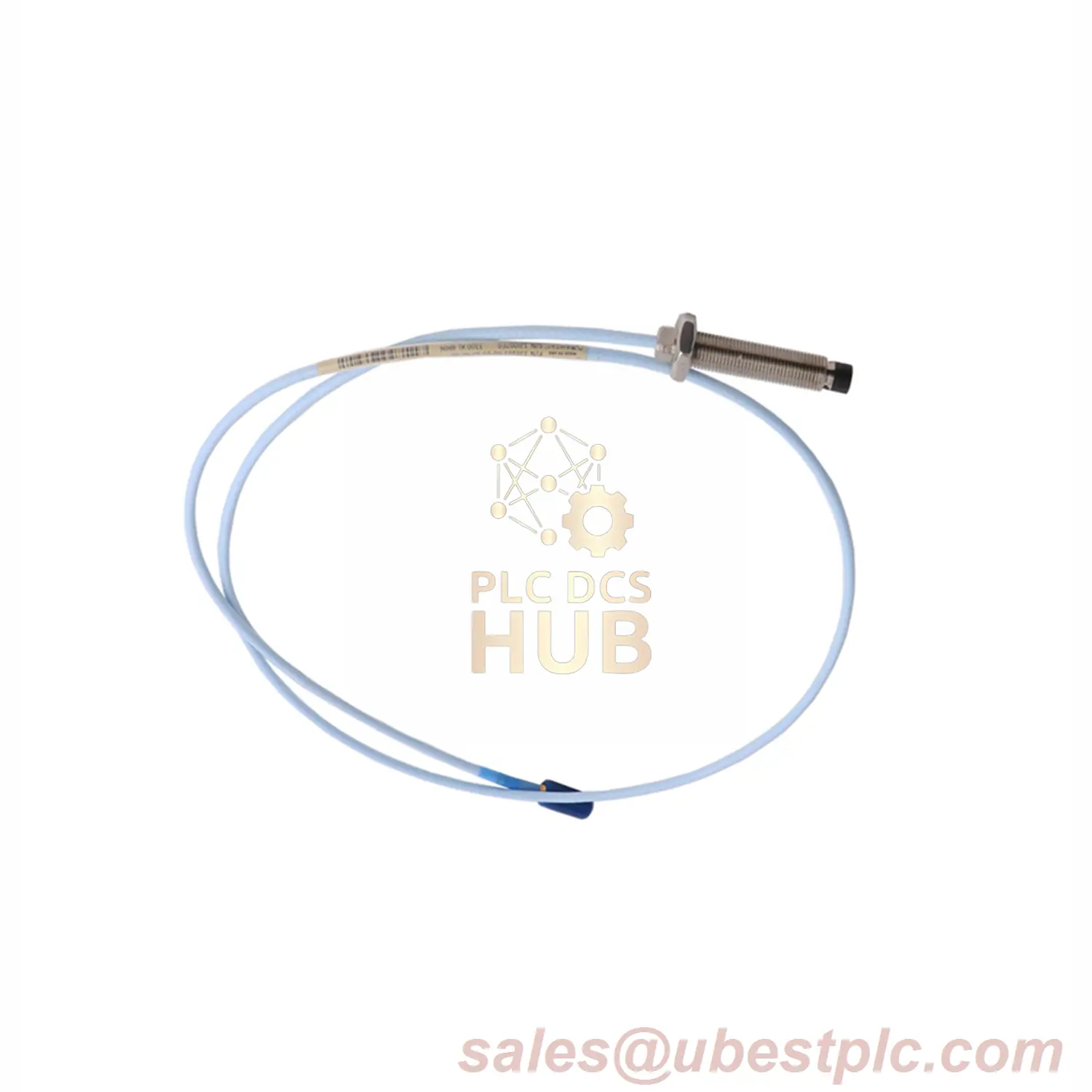

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-44-10-02-CN) is a high-performance vibration sensor designed for industrial applications. Featuring a 3/8-24 UNF thread and 8 mm rugged casing, it ensures durability in harsh environments. The probe includes TipLoc and CableLoc technologies for enhanced tip bonding and cable pull strength (75 lbf). Optional FluidLoc prevents fluid leakage through cables.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-44-10-02-CN
- Suffix Breakdown:
- 44: 4.4 in. case length
- 10: 1.0 m total length
- 02: ClickLoc connector
- CN: Country-specific approval
- Range: 2 mm (80 mils)
- Accuracy: ±5% (1m/5m systems), ±6.5% (9m)
- Output: 7.87 V/mm (200 mV/mil)
- Temp Range: -52°C to +177°C (Standard), -52°C to +260°C (Extended)
- Resistance: 7.59 Ω ±0.50 (1m cable)
- Material: Stainless steel case, PPS tip
Installation Guide
- Mount using 3/8-24 UNF thread.
- Set radial vibration gap to -9 Vdc (~1.27 mm).
- Avoid temps below -34°C to prevent seal damage.
Compatibility
- Works with 3300 XL Proximitor Sensors.
- Use shielded triad cable (0.2–1.5 mm²).
- Max wiring length: 305 meters.
Certifications
- Agency Approval: CN Country-Specific
- Complies with IEC 68-2-3 humidity standards.
Packaging & Warranty
- Includes: Probe, COO (optional).
- Warranty: 1-year limited warranty.
Applications
- Vibration monitoring in turbines, compressors, generators.
- Industrial machinery health management.
