Description
Industrial Monitoring Solution

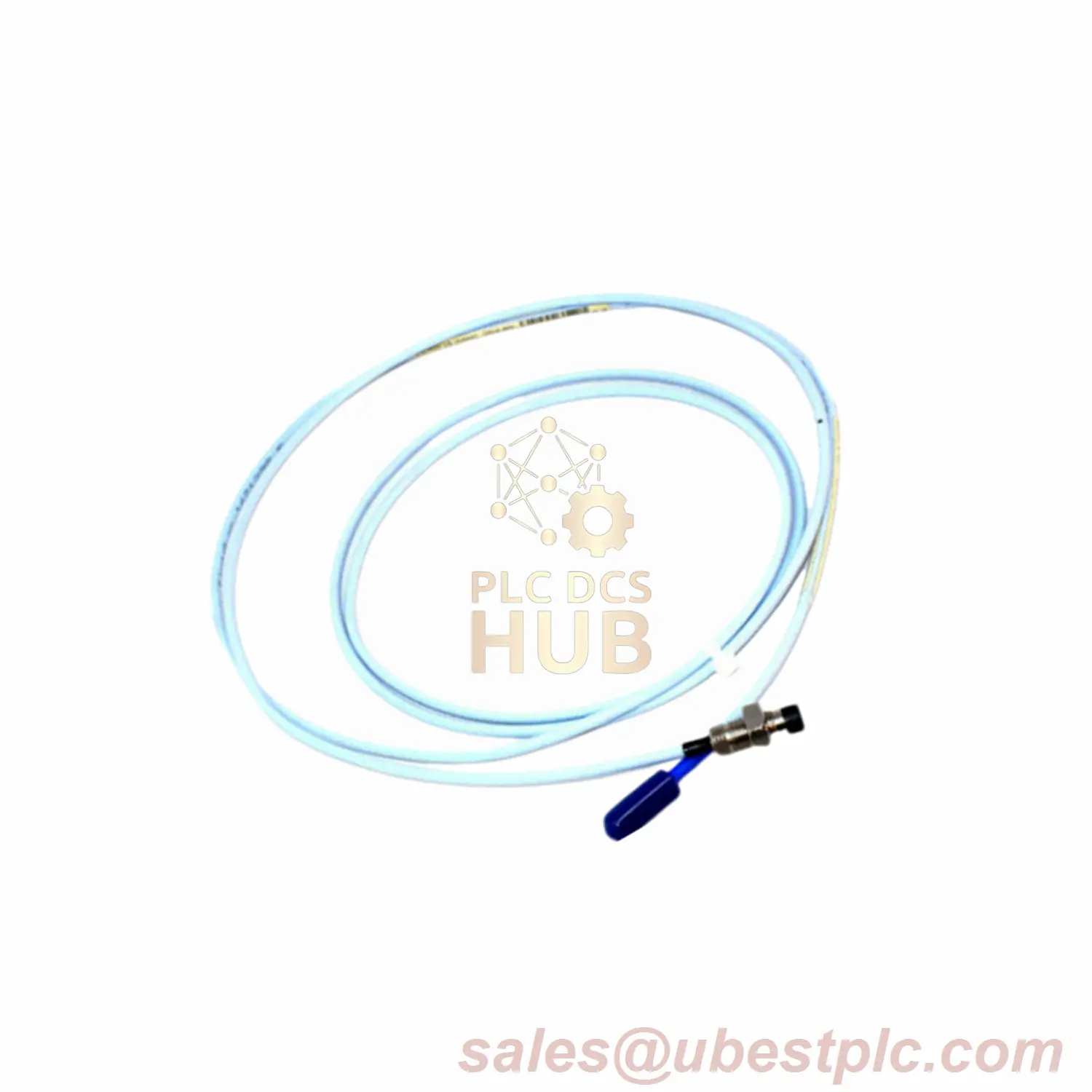

Bently Nevada 3300 XL 8mm Probe
Model: 330101-00-36-10-02-CN
3.6in Case • 1m Cable • China-Certified
Full Product Code Breakdown for 330101-00-36-10-02-CN
- 00 = 0.0in Unthreaded
- 36 = 3.6in (91.4mm) Case
- 10 = 1.0m (3.3ft) Cable
- 02 = ClickLoc Mini-Coaxial Connector
- CN = China Certifications
Core Specifications
▷ Electrical
• Resistance: 7.59Ω ±0.5
• Capacitance: 69.9pF/m
• Sensitivity: 200mV/mil
▷ Mechanical
• Weight: 323g/m (11.4oz/ft)
• Cable Pull Strength: 330N (75lbf)
• Thread: 3/8-24 UNF
Material & Durability
- Probe Tip: PPS Plastic (Chemical-Resistant)
- Case: AISI 303/304 Stainless Steel
- Seal: Viton® O-Ring (Pressure-Tight)
Environmental Limits
| Parameter | Standard | Extended Range |
|---|---|---|
| Temperature | -52°C to +177°C | -52°C to +260°C (Cable) |
| Humidity | <3% ASF change @93% RH for 56 days | |
Industrial Applications
Food ProcessingMonitors mixer bearings in washdown-ready stainless steel equipment
PharmaceuticalsTracks tablet press vibrations in cleanroom environments
Certifications (CN Code)
- GB/T 17626-2018 (EMC)
- CCC Mark: CNCA-08-012024
- HJ 212-2017 (Chemical Resistance)
Special Features
- FluidLoc® Cable Option: Prevents liquid ingress
- TipLoc™ Molding: 2x stronger tip-body bond
- CableLoc™ Design: 75lb pull-out resistance
Package Contents
- 1x Probe (3.6in case)
- 1m Standard Cable with ClickLoc
- 1-Year Sanitation Warranty
Technical Support
Email sales@ubestplc.com for cleanroom installation guides
