Product Description

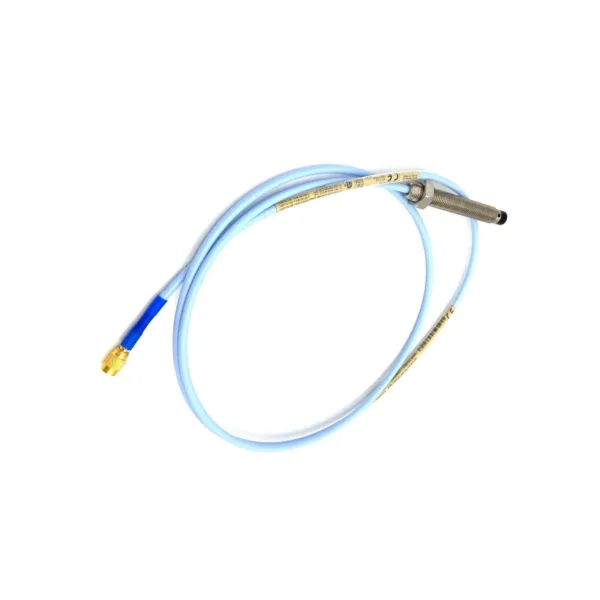

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-52-10-02-CN) is a high-performance vibration monitoring sensor designed for industrial machinery. Featuring a 3/8-24 UNF thread and 8 mm rugged PPS plastic tip, it ensures durability in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Probe (330101-00-52-10-02-CN)
- Unthreaded Length: 0.0 in (00)
- Case Length: 5.2 in (52)
- Cable Length: 1.0 m (10)
- Connector: Miniature coaxial ClickLoc (02)
- Range: 2 mm (80 mils)
- Accuracy: ±5% (1/5m system), ±6.5% (9m/ETR)
- Output: 7.87 V/mm (200 mV/mil)
- Operating Temp: -62°F to +350°F (Standard), -62°F to +425°F (ETR)
- Resistance: 7.59Ω ±0.50 (1.0m cable)
- Material: AISI 303/304 stainless steel case, PPS tip
Installation Guide
Mount using 3/8-24 UNF thread. Use shielded triad cable (16-24 AWG). Max field wiring: 305m (1,000 ft). Recommended gap: 1.27mm (50 mils/-9Vdc). Avoid temps below -30°F to prevent seal damage.
Compatibility
Works with 3300 XL Proximitor Sensors and monitors.
Compatible with 3-conductor shielded cables.
Package Contents
- 3300 XL 8 mm Probe
- Miniature ClickLoc Connector
- Installation Manual
Warranty
12-month limited warranty against defects. Excludes physical damage or improper use.
Applications
Used in turbines, compressors, pumps, and motors for vibration monitoring.
