Description
Product Overview

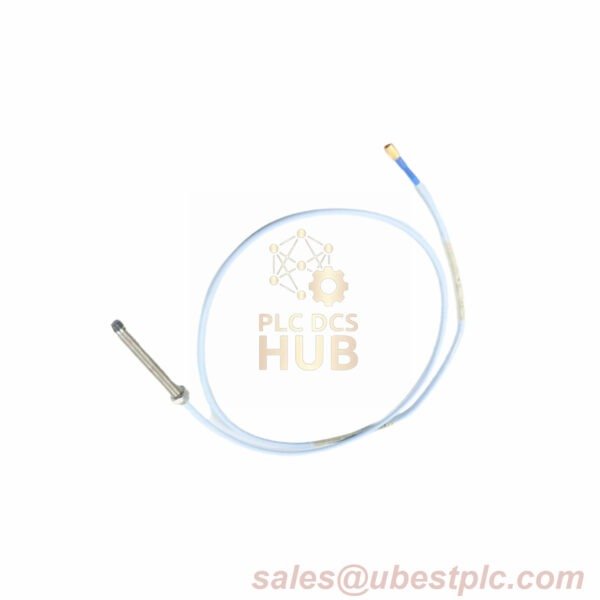

The Bently Nevada 330104-10-13-05-02-05 3300 XL 8 mm Proximity Probe combines precision monitoring with global safety compliance. Designed for hazardous environments, it features CSA, ATEX, and IECEx certifications alongside a 100 mm unthreaded section for flexible mounting. Its armored M10x1 thread and Viton® O-ring ensure leak-proof performance under extreme pressures. The PPS tip and stainless steel case deliver corrosion resistance, while the compact 130 mm length suits space-sensitive installations.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-10-13-05-02-05 Suffix Breakdown:
- 10: 100 mm unthreaded length
- 13: 130 mm overall case length
- 05: 0.5-meter cable (1.6 feet)
- 02: Miniature ClickLoc connector (standard cable)
- 05: CSA, ATEX, IECEx certifications
- Mechanical:
- Case Material: AISI 304L stainless steel (enhanced weldability)
- Tip Material: PPS with 15% glass fiber reinforcement
- Thread Design: M10x1 with anti-loosening serrations
- Pressure Rating: 30 bar differential pressure tolerance
- Environmental:
- Operating Temp: -50°C to +150°C (-58°F to +302°F)
- Altitude: 3000 meters (9842 ft)
- Hazardous Certifications: ATEX II 2G Ex ia IIC T6 Ga
- Target Gap: 2.0 mm (optimized for AISI 4140 steel)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
