Description
Product Description

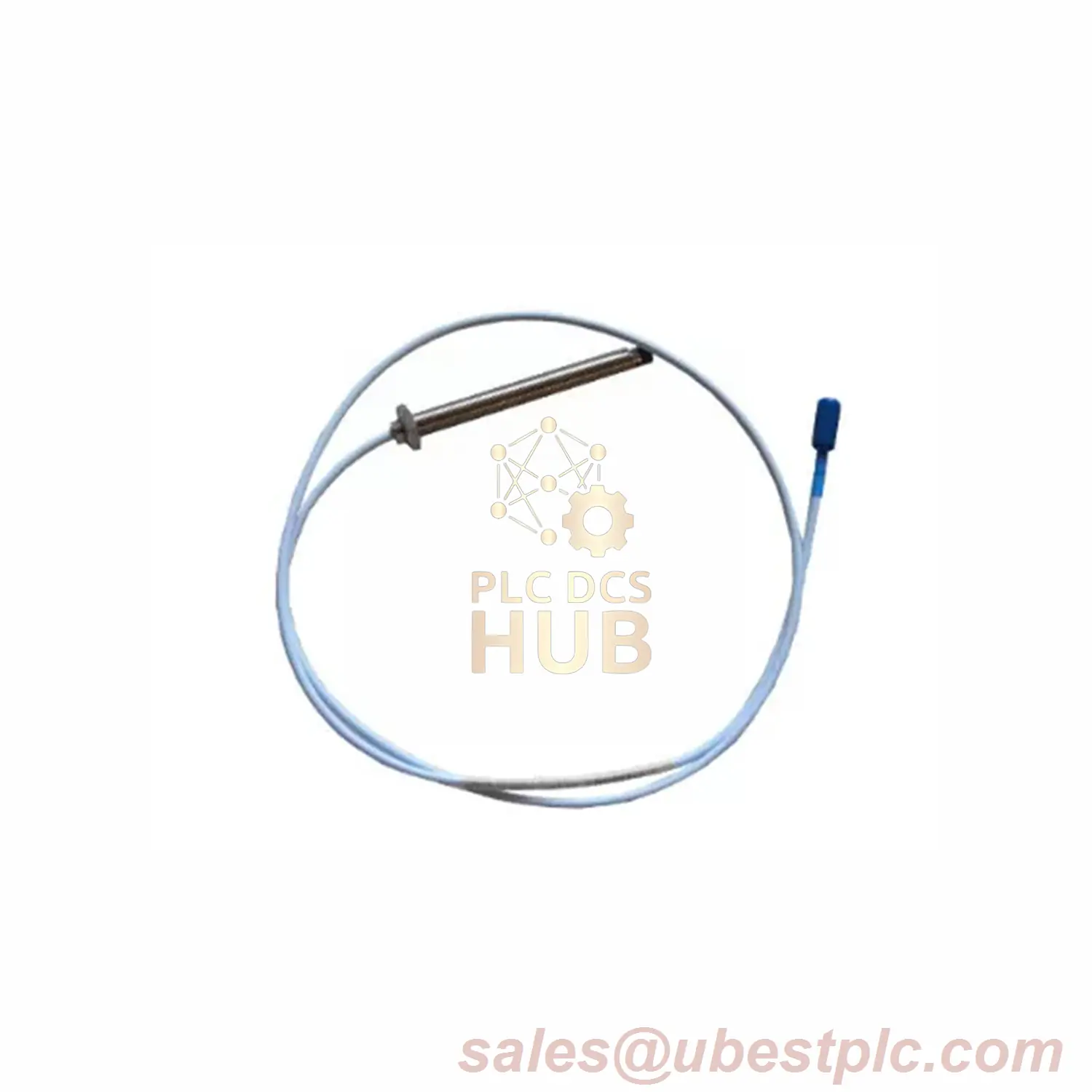

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-15-10-02-CN) is a high-performance vibration monitoring sensor designed for industrial machinery. Featuring a rugged PPS plastic tip and stainless steel case, it ensures durability in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-15-10-02-CN
- Probe Type: 8 mm, 3/8-24 UNF thread, no armor
- Linear Range: 2 mm (80 mils)
- Accuracy: ±0.025 mm (Standard), ±0.038 mm (Extended)
- Output Signal: 7.87 V/mm (200 mV/mil)
- Operating Temp: -52°C to +177°C (Standard), -52°C to +218°C (Extended)
- Resistance: 7.59 Ω ±0.50 (1.0m cable)
- Cable Pull Strength: 330 N (75 lbf)
Installation Guide
- Set radial vibration gap to -9 Vdc (~1.27 mm/50 mils).
- Use shielded triad cable (16-24 AWG) for field wiring.
- Max cable length: 305 meters (1,000 feet).
Compatibility
- Works with 3300 XL Proximitor Sensors.
- Supports Miniature Coaxial ClickLoc Connector.
Package & Warranty
- Includes: Probe
- Warranty: 1-year limited warranty.
Real-World Applications
- Gas turbine vibration monitoring.
- Industrial pump health assessment.
- Compressor shaft displacement tracking.
