330141-08-30-02-05 Bently Nevada – Proximity Probes

Description

Product Overview

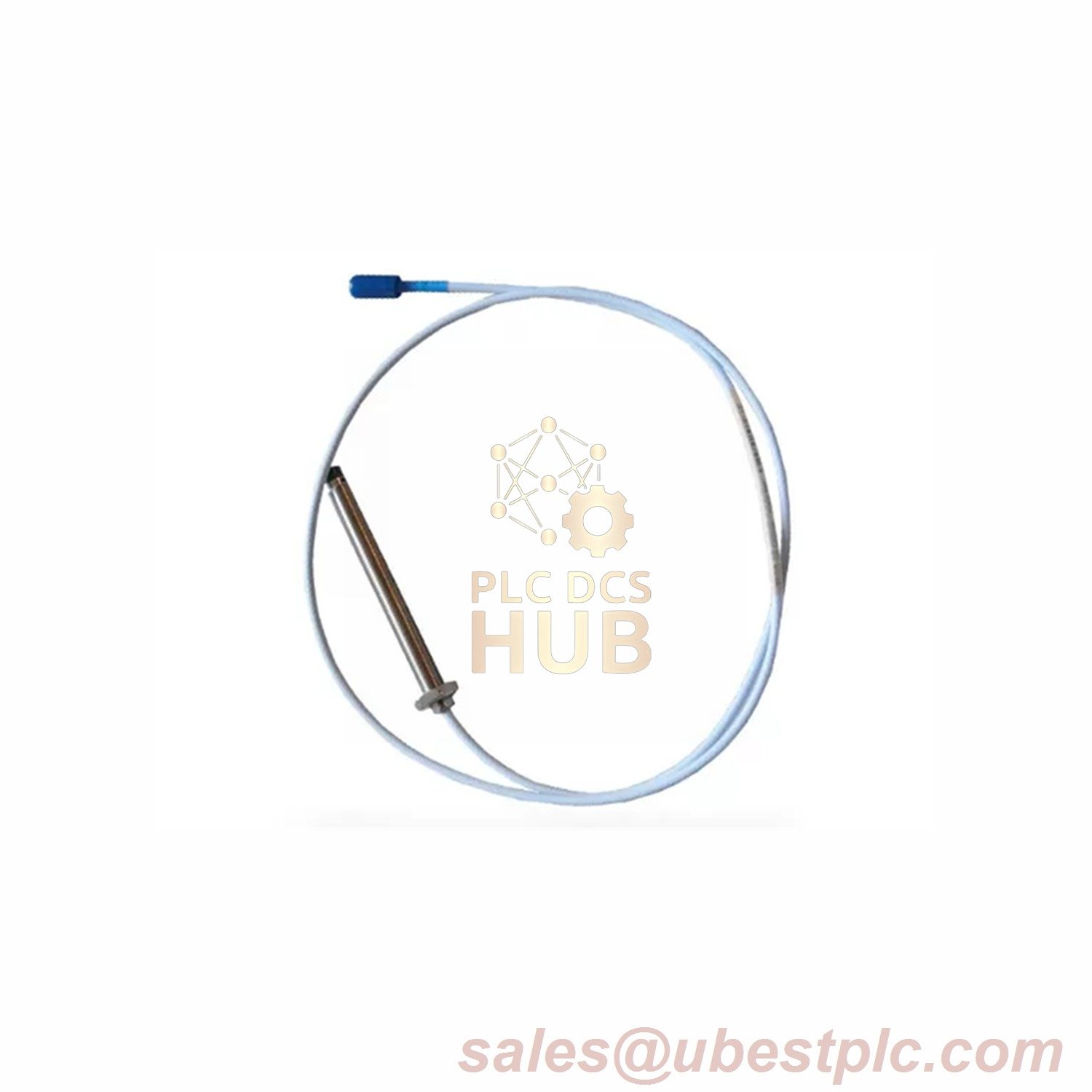

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-30-02-05) is a certified, industrial-grade sensor engineered for hazardous environments requiring extended cable reach and rugged durability. Featuring CSA, ATEX, and IECEx approvals, this probe combines compliance with robust performance. Its 3.0-meter armored cable and ClickLoc connector ensure secure connectivity in high-vibration applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141-08-30-02-05
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 30: 3.0-meter cable (9.8 feet)
    • 02: Miniature coaxial ClickLoc connector + standard cable
    • 05: CSA, ATEX, IECEx certifications
• Probe Tip: Polyphenylene sulfide (PPS)
• Armor Material: 316L stainless steel braided shielding (0.5 mm thickness)
• Temperature Range:
  • Standard: -62°F to +350°F (-52°C to +177°C)
  • Extended: Tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
• Hazardous Area Compliance: ATEX II 2G Ex ia IIC T4 Ga / IECEx Ex ia IIC T4 Ga
• Crush Resistance: 3,000 N (674 lbf) per ISO 1813
• Cable Flexibility: 25,000+ bend cycles at 40 mm radius
• Shock Resistance: 100 g peak (6 ms, IEC 60068-2-27)
• Cable Jacket: Polyurethane (PUR) with -40°C cold flexibility
• Signal Integrity: <0.1% hysteresis error over full measurement range

Contact Information
For inquiries or custom configurations, email sales@ubestplc.com. Our team will gladly assist with technical details or order processing.

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
