Description
Description:

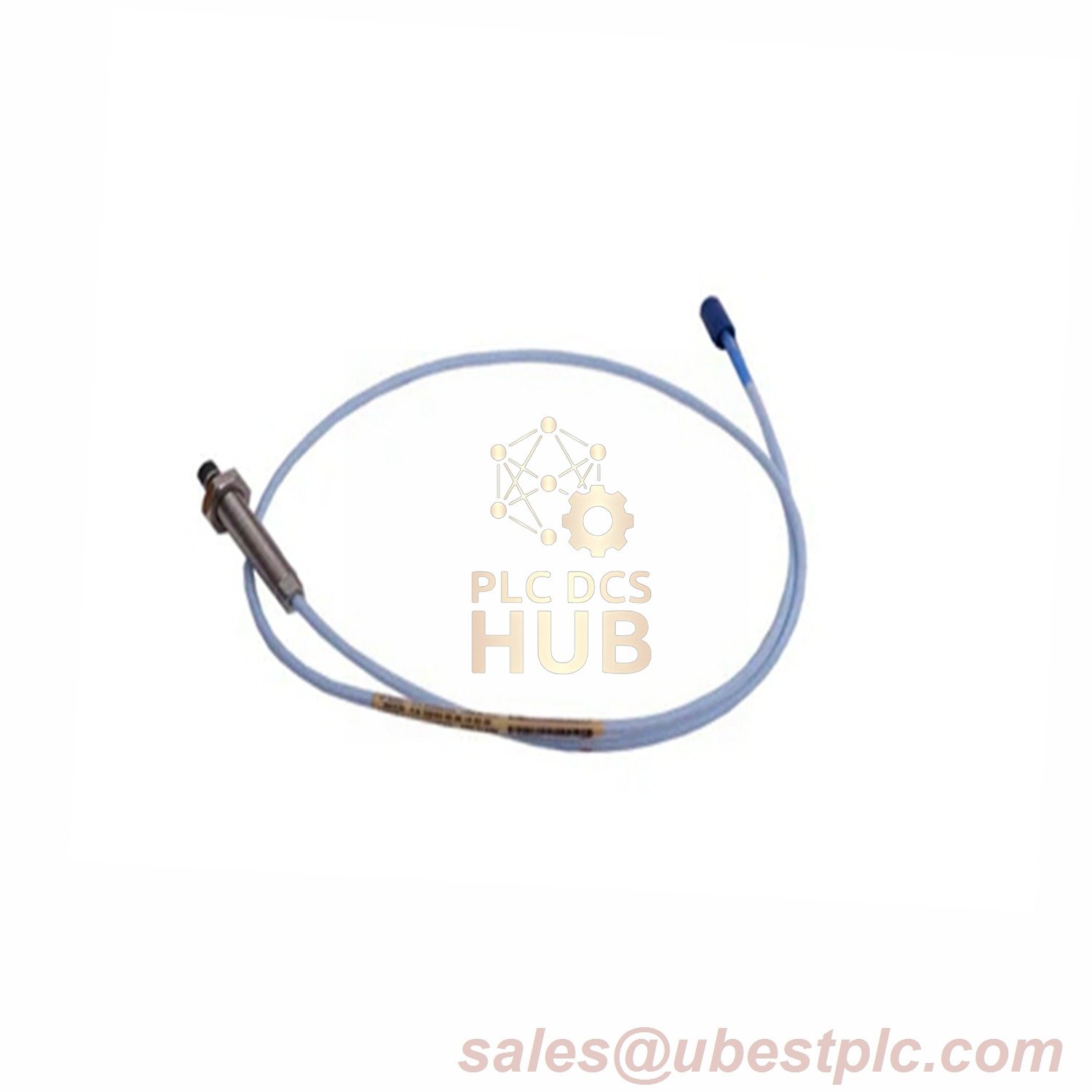

The Bently Nevada 3300 XL 8 mm Probe 330141-08-50-11-05 with Armor is a high-performance vibration monitoring probe designed for industrial applications. This probe features a robust 8 mm diameter, providing enhanced durability and resistance to physical abuse. It is equipped with a patented TipLoc molding method for a stronger bond between the probe tip and body, and a CableLoc design that ensures a secure attachment with a pull strength of 330 N (75 lbf).
Technical Data:
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Probe
- Series: 330141-08-50-11-05
- Probe Length: 5.0 meters (16.4 feet)
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Probe Case Material: AISI 303 or 304 Stainless Steel
- DC Resistance (RPROBE): 8.73 ± 0.50 Ω
- Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ± 5%
- Temperature Range:
- Standard: -52°C to +177°C (-62°F to +350°F)
- Extended: -52°C to +218°C (-62°F to +425°F) for probe tip; -51°C to +260°C (-60°F to +500°F) for cable and connector
- Pressure Seal: Viton® O-ring
- Relative Humidity: Less than 3% change in ASF at 93% humidity (IEC 68-2-3)
- Weight: 323 g/m (11.4 oz)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
