Description

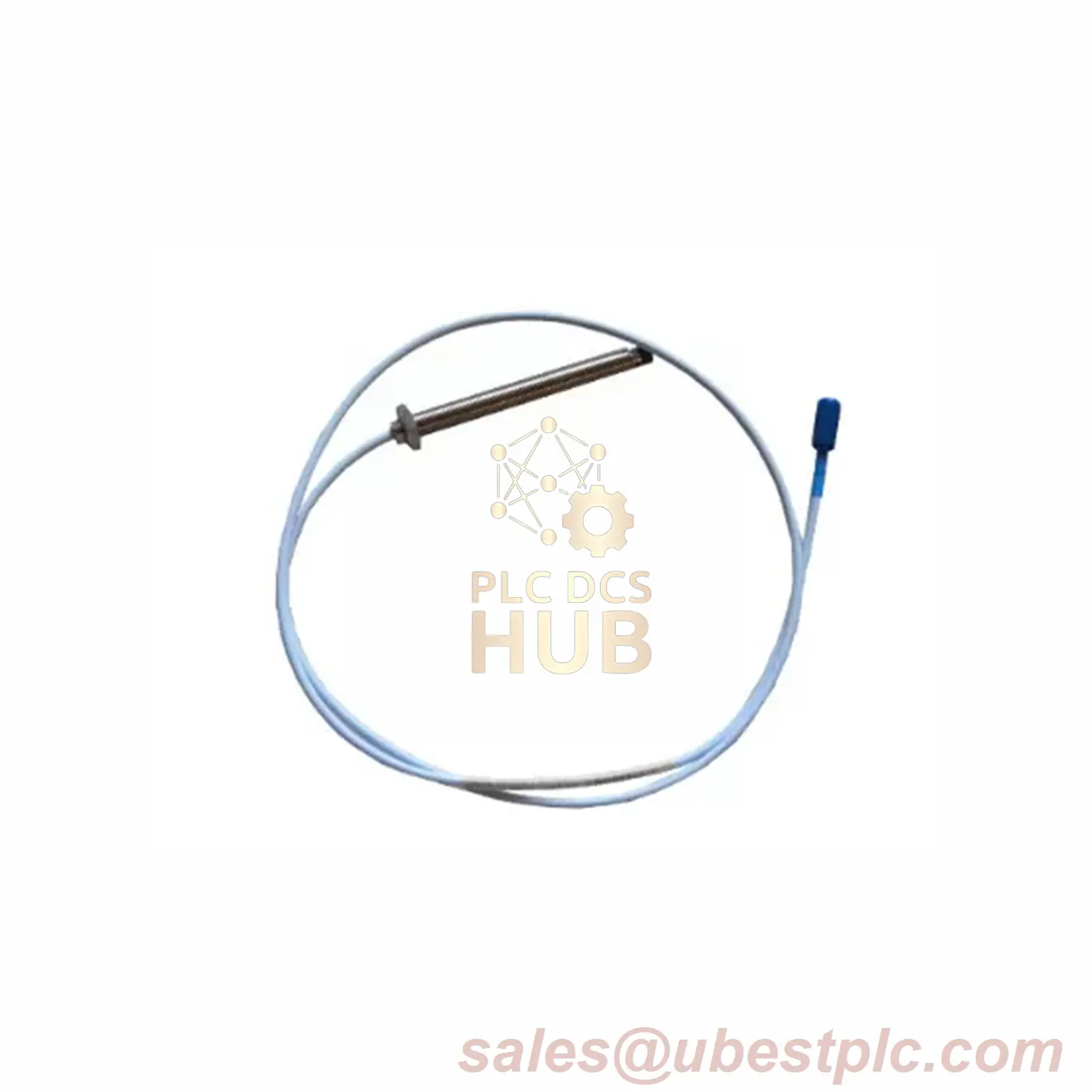

Bently Nevada 330195-02-12-10-05 – High-Performance Reverse Mount Probe
???? Core Features
- ???? Thread: 3/8-24 UNF | Cable: 1.0m (3.3ft)
- ????️ Temp Range:
Standard: -52°C to +177°C |
Extended: Tip +218°C / Cable +260°C - ????️ Certifications: CSA, ATEX, IECEx
- ⚡ Resistance: 7.59Ω ±0.50
???? Compare Models
| Model | Cable | Approvals | Key Use | Link |
|---|---|---|---|---|
| 330195-02-12-10-05 | 1.0m | CSA/ATEX/IECEx | Hazardous areas | Current |
| 330195-02-12-05-00 | 0.5m | Standard | General industry | View |
| 330195-02-12-05-CN | 0.5m | CN-specific | Regional compliance | View |
???? Key Applications
- ⚡ Oil Refineries: Explosion-proof monitoring in ATEX zones
- ???? Power Plants: High-temp turbine vibration analysis
- ???? Chemical Reactors: PPS tip resists corrosive media
⚠️ Critical Notes
- ❌ Avoid installation below -34°C to protect Viton® seals
- ???? Max thread engagement: 14.3mm (0.563in)
- ???? Pressure testing available via custom request
???? Package & Support
- 1x Probe with ClickLoc connector
- COO available (upon request)
- ???? 12-month warranty
