330195-02-12-05-CN | 3300 XL 8 mm ETR Reverse Mount Probe

Description

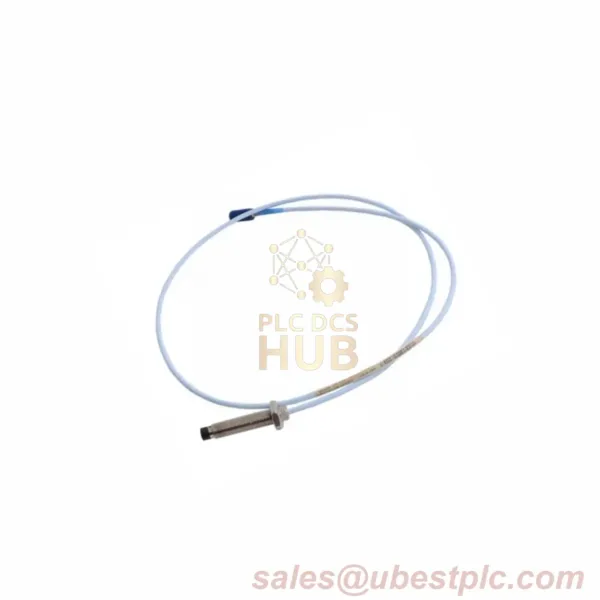

Bently Nevada 330195-02-12-05-CN – 8mm Reverse Mount Proximity Probe

???? Core Specifications

• ???? Thread: 3/8-24 UNF | Cable: 0.5m (1.6ft)
• ????️ Temp Range:
  – Standard: -52°C to +177°C
  – Extended Tip: +218°C | Cable: +260°C
• ???? Seal: Viton® O-ring (pressure-resistant)
• ⚡ Resistance: 7.45Ω ±0.50 (center to outer conductor)

????️ Build & Certifications

• ????️ Case: AISI 304 stainless steel
• ???? Tip: PPS (chemical-resistant)
• ???? Approvals: Country-specific (CN) | CE/RoHS compliant

???? Key Applications

• ⚙️ High-Pressure Pumps: Seal integrity monitoring
• ???? Industrial Ovens: Extended temp range for heat zones
• ????️ Chemical Processing: Corrosion-resistant material

???? Package Details

• 1x 330195-02-12-05-CN probe
• Optional COO (Certificate of Origin)
• ???? 12-month factory warranty

⚠️ Critical Notes

• ❌ Avoid temps below -34°C to prevent seal damage
• ???? Max thread engagement: 0.563in (14.3mm)
• ???? Humidity tolerance: <3% ASF change at 93% RH

???? Global Shipping

Fast delivery via DHL/FedEx/UPS – Trackable within 24hrs
