Description

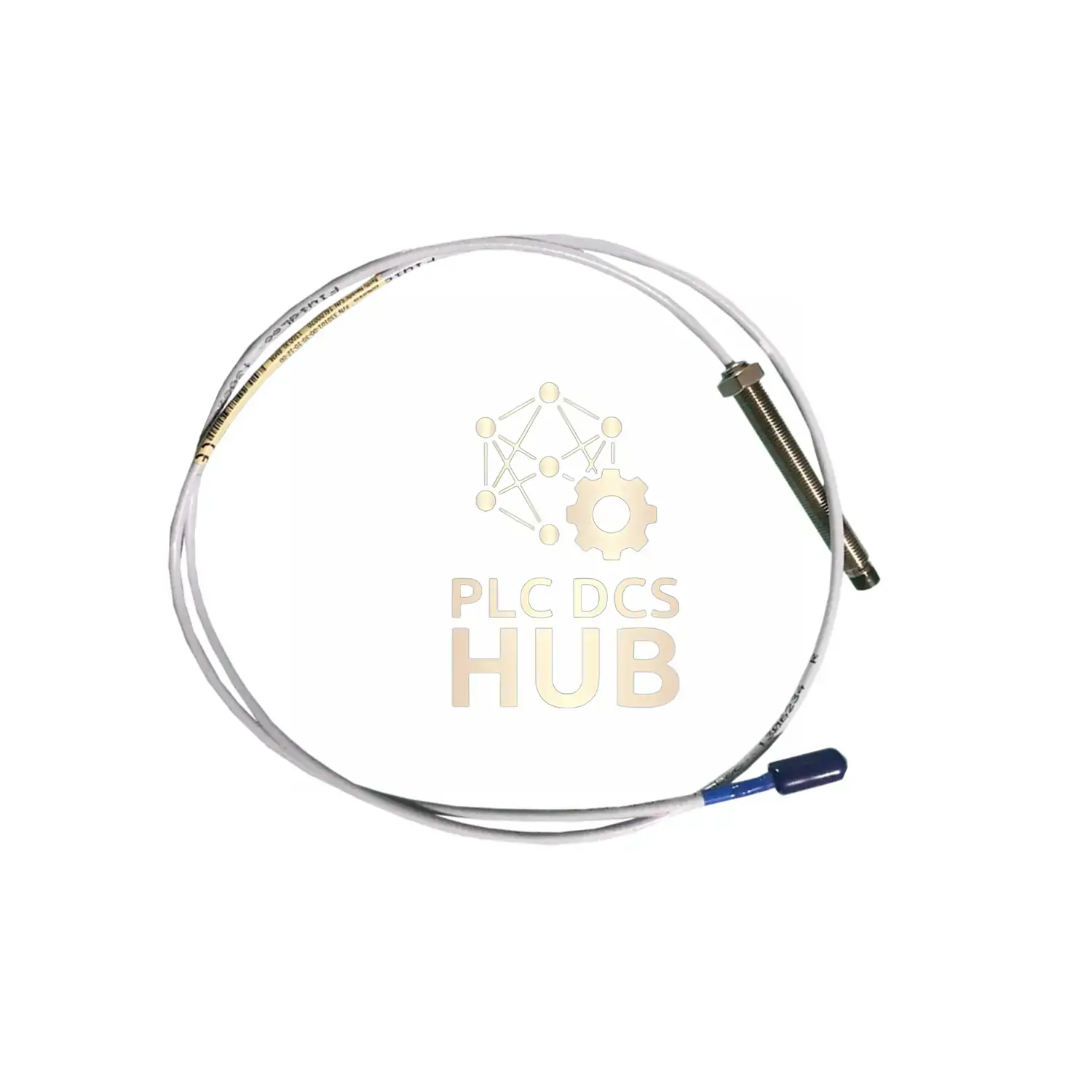

Bently Nevada 3300 XL Proximity Probe 330702-00-10-50-01-00 – 5m Armored Sensor
Technical Specifications
| Model Number | 330702-00-10-50-01-00 |
| Cable Length | 5.0 meters (16.4 ft) |
| Resistance | 7.2Ω ±0.8Ω |
| Thread Size | ½-20 UNF |
| Max Torque | 45.2 N•m (400 in•lb) |
| Bend Radius | 25.4 mm (1.0 in) |
| Weight | 0.17 kg |
| Seal Material | Viton O-ring |
Part Number Breakdown
330702
Base Model
00
0″ Unthreaded
10
1.0″ Case
50
5.0m Cable
01
ClickLoc Connector
00
No Approvals
Installation Notes
- Use with 5m Proximitor Sensors only
- Recommended torque: 15.2 N•m (133 in•lb)
- Minimum bend radius: 25.4mm (1.0″)
- Keep above -34°C (-30°F) for seal integrity
Shipping & Support
- Fast worldwide shipping: FedEx, UPS, DHL
- 12-month warranty
- Includes connector protector
Technical Questions
- Q: Can I use this with 9m sensors?
A: No, designed for 5m sensors only - Q: Is the O-ring chemical resistant?
A: Viton resists most oils and fuels - Q: What’s the probe tip material?
A: Polyphenylene sulfide (PPS) - Q: Can I remove the armor?
A: No, armor is permanently attached - Q: Warranty coverage?
A: 12 months against defects
Download Resources
Get complete product details:
- Installation guide
- Technical specifications
- Safety instructions
