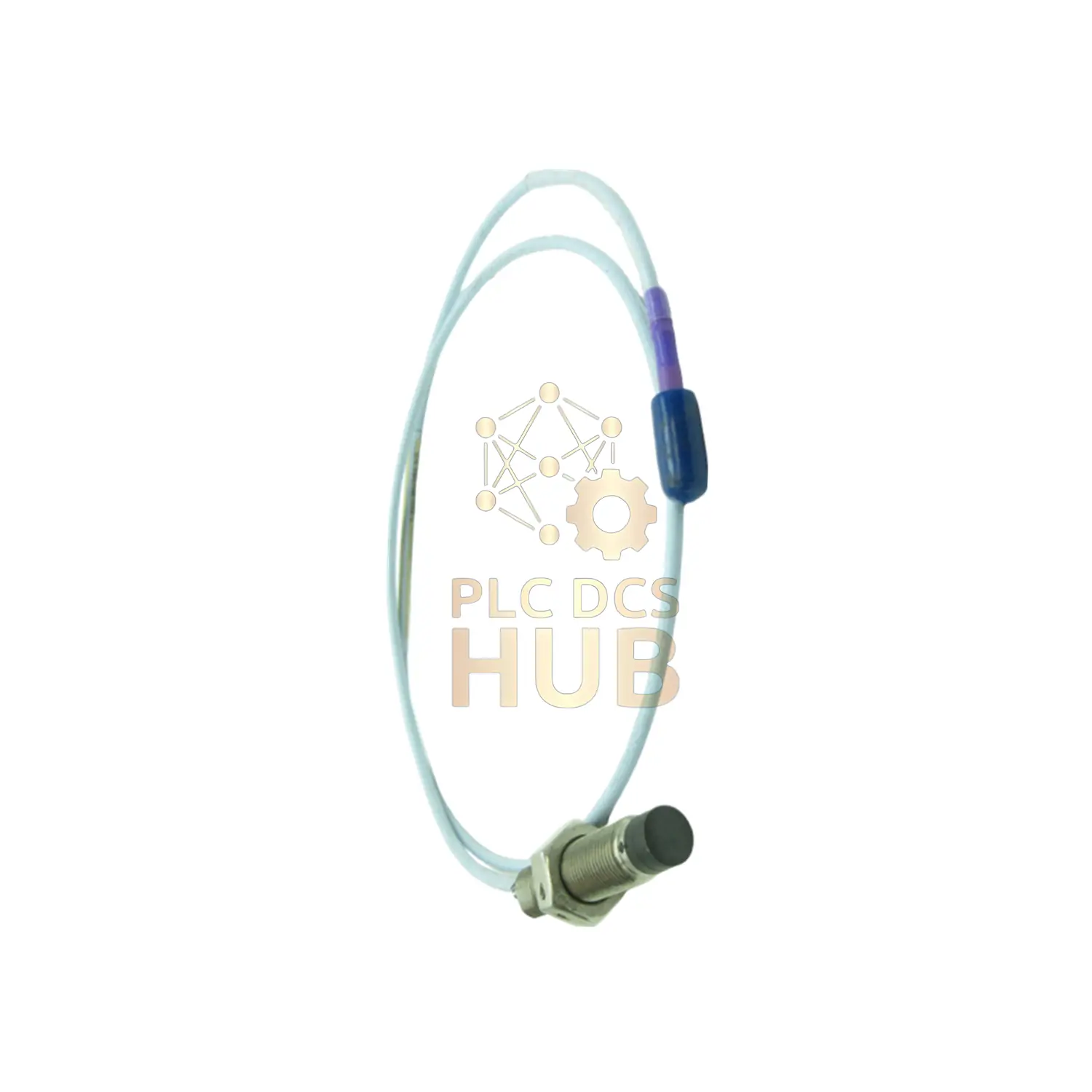

330707-00-10-10-01-05 Bently Nevada 3300 XL 11 mm Probe

Description

Bently Nevada 330707-00-10-10-01-05: Industrial-Grade Proximity Probe

???? Part Number Explained

• 330707 – 3300 XL 11mm Probe
• -00 – No unthreaded length
• -10 – 1.0 inch case length
• -10 – 1.0 meter cable
• -01 – ClickLoc connector
• -05 – Multi-certified safety

⚙️ Key Technical Specs

• Resistance: 5.9Ω ±0.5Ω
• Temp Range: -51°C to +177°C
• Cable Type: 75Ω Triaxial FEP
• Weight: 0.17kg (0.37lbs)
• Min Target Size: 11mm diameter
• Max Torque: 45.2 N•m (400 in•lb)
• Seal Material: Viton O-ring
• Bend Radius: 25.4mm min

???? Warranty & Shipping

• 12-month factory warranty
• FedEx Priority: 2-3 days
• UPS Worldwide: 3-5 days
• DHL Express: 1-3 days

❓ Expert Questions Answered

• Q: Can it monitor small shafts?
  A: Yes! Designed for 11mm+ shafts
• Q: Freeze resistant?
  A: Works down to -51°C (-60°F)
• Q: Max installation torque?
  A: 45.2 N•m – use torque wrench
• Q: Chemical resistant?
  A: Yes! PPS tip handles oils/solvents
• Q: Pressure test available?
  A: Custom testing on request
