Description

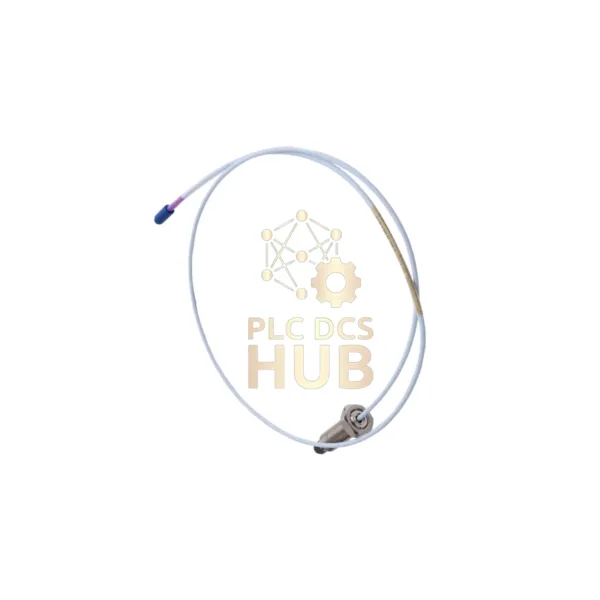

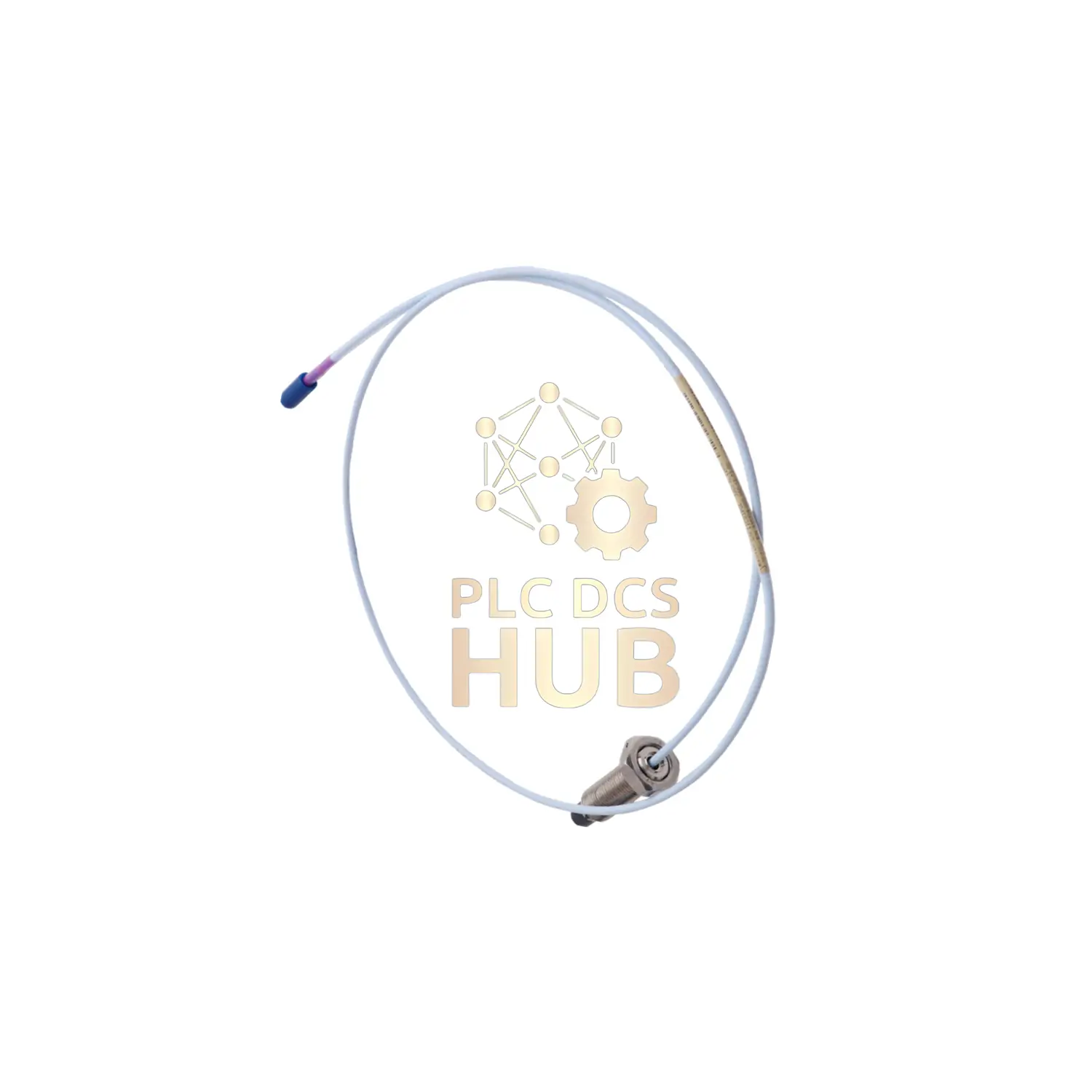

Bently Nevada 3300 XL Probe: Industrial Precision
New 330707-00-10-50-11-05 vibration sensor with FluidLoc cable. Made in USA. Factory sealed. Ships via FedEx/UPS/DHL.
Part Number Explained
- Core Model: 330707 (XL 11mm Probe)
- ▸ -00: 0″ unthreaded section
- ▸ -10: 1.0″ case length
- ▸ -50: 5.0m cable (16.4 ft)
- ▸ -11: ClickLoc + FluidLoc connector
- ▸ -05: Multi-certified
Technical Specifications
- Electrical:
- Probe resistance: 7.2Ω ±0.8
- Cable type: 75Ω triaxial
- Insulation: FEP
- Mechanical:
- Thread: 1/2-20 UNF
- Max torque: 15.2 N•m
- Min bend radius: 1.0 inch
- Environmental:
- Temp range: -51°C to +177°C
- Seal: Viton O-ring
- Housing: AISI 304 stainless steel
Installation Notes
- ⚠️ For use with 5m Proximitor only
- Set thread engagement: Max 0.75″
- Hand-tighten plus ¼ turn (15.2 N•m)
- Keep above -34°C to protect seal
Unique Benefits
- ???? FluidLoc cable resists liquids
- ???? Precision machining in USA
- ???? Only 0.17kg – easy to install
- ⚙️ Triaxial design for stable signals
Shipping & Warranty
- ???? FedEx/UPS/DHL options
- ???? 12-month warranty
- ⏱️ Ships same day
Expert Questions
- Q: What is FluidLoc cable?
A: Special sealing resists fluid entry - Q: Can I use with other Proximitors?
A: No – only for 5m Proximitor - Q: Minimum operating temperature?
A: -34°C to avoid seal damage - Q: What certifications does it have?
A: Multiple global approvals - Q: How to check pressure seal?
A: Contact for custom testing
