Description

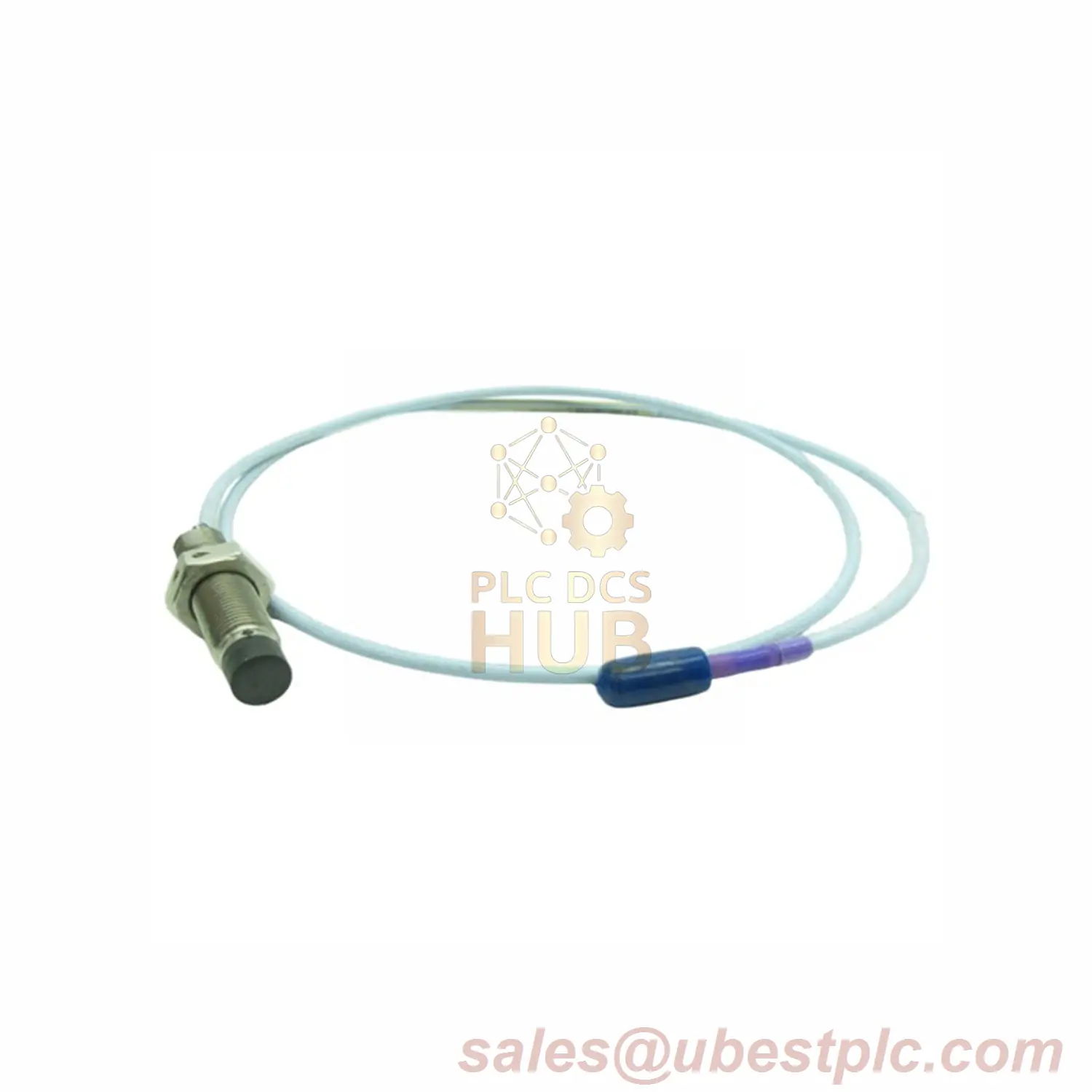

Bently Nevada 3300 XL Proximity Probe: Precision Vibration Monitoring
Key Features
Industrial-grade 11mm proximity probe for vibration measurement in demanding environments. Features PPS tip for chemical resistance and stainless steel (AISI 304) casing. Operates in extreme temperatures from -51°C to +177°C. Includes 9-meter FEP-insulated triaxial cable with ClickLoc connector.
Technical Specifications
| Brand | Bently Nevada |
| Full Model | 330708-00-10-90-02-00 |
| Thread Type | 5/8-18 UNF (no armor) |
| Cable Length | 9 meters / 29.5 ft |
| Connector | Miniature coaxial ClickLoc |
| Impedance | 75 Ω triaxial |
| Max Torque | 45.2 N•m (400 in•lb) |
| Tip Material | Polyphenylene sulfide (PPS) |
Installation Guide
- Use 15.2 N•m (133 in•lb) recommended case torque
- Max thread engagement: 0.938 in (23.8 mm)
- Connector torque: Finger tight + max 0.565 N•m
- Maintain minimum 25.4mm (1.0 in) bend radius
- Avoid temperatures below -34°C to prevent seal damage
Compatibility
Works with Bently Nevada 3300 XL monitoring systems. ClickLoc connector ensures secure connections with compatible interfaces.
Package Includes
- 3300 XL 11mm proximity probe
- Standard documentation
- Optional COO when selected
Warranty & Shipping
12-month warranty. Ships via FedEx/UPS/DHL worldwide. Weight: 0.17 kg.
FAQ
Q: Pressure rating?
A: Not pressure-tested. Contact for custom pressure seal validation.
Q: Can I use below -34°C?
A: Not recommended – may damage Viton O-ring seal.
Q: Cable armor available?
A: This model (330708) ships without armor.
