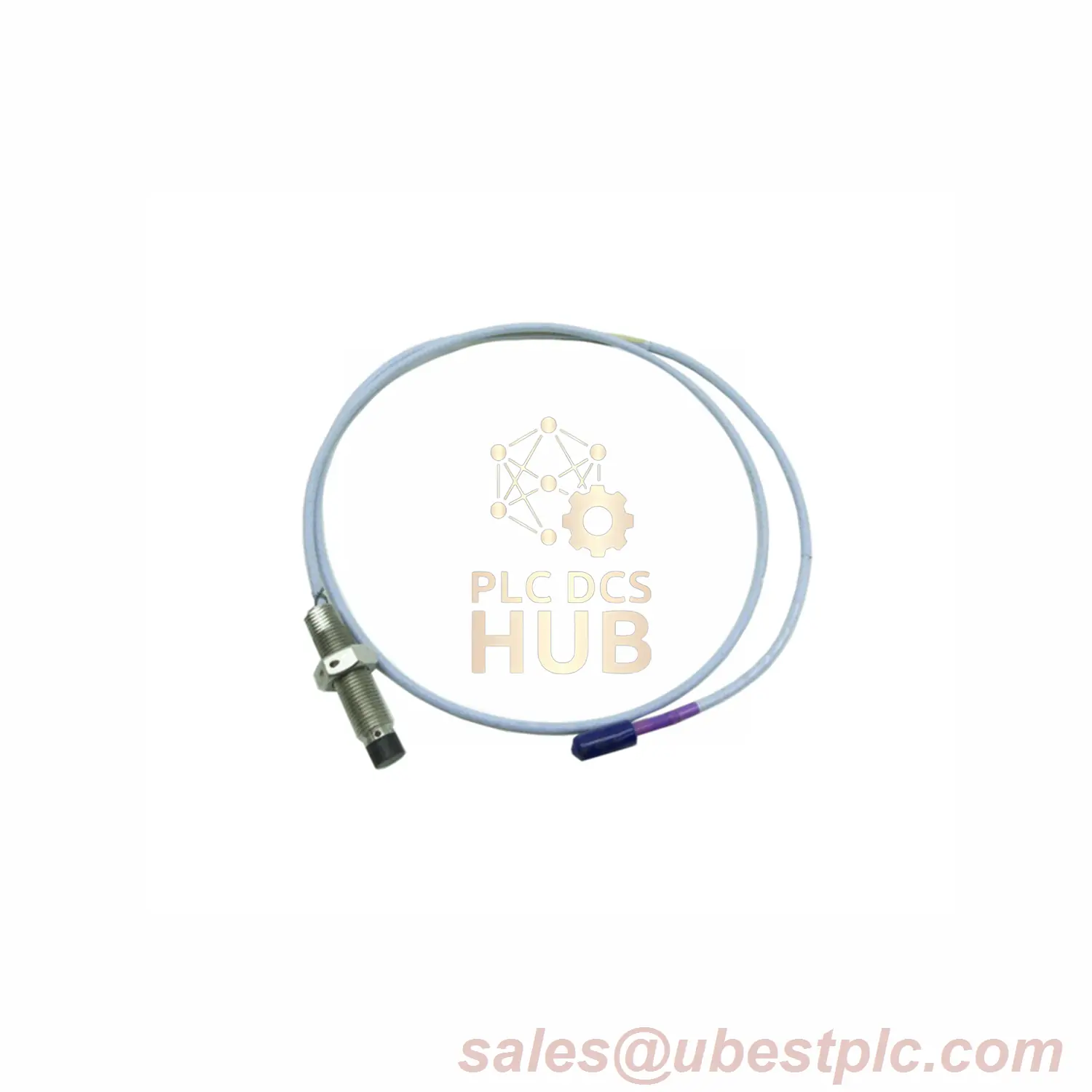

Bently Nevada 3300 XL Proximity Probe – Industrial-Grade Precision
Description
Professional 11mm vibration sensor for critical machinery monitoring. Features a PPS tip and stainless steel body for harsh environments. Measures shaft vibration/position in turbines, compressors, and rotating equipment. Includes 9-meter cable with ClickLoc connector.
Technical Specifications
- Brand/Model: Bently Nevada 330708-00-24-90-01-05
- Sensing Range: 11mm diameter
- Thread: 5/8-18 UNF
- Case Length: 2.4 in (24 option)
- Cable Length: 9.0 meters (90 option)
- Output Signal: 75 Ω triaxial
- Temp Range: -51°C to +177°C (Avoid below -34°C)
- Resistance: 5.9 ± 0.5 Ω (center to outer conductor)
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
Installation Guide
- Mounting Torque:
- Max: 45.2 N•m (400 in•lb)
- Recommended: 15.2 N•m (133 in•lb)
- Connector Torque: Finger tight (Max 0.565 N•m)
- Min Bend Radius: 25.4mm (1.0 in)
- Max Thread Engagement: 0.938 in
Compatibility
Works with Bently Nevada 3300 monitoring systems. Miniature coaxial ClickLoc connector ensures secure hookup. Triaxial cable matches industry-standard interfaces.
Package & Warranty
Includes:
- 1x Proximity Probe
- Connector protector
- Standard cable
12-Month Warranty: Covers manufacturing defects. Shipping weight: 0.17kg.
Global Shipping
Fast delivery via FedEx, UPS, DHL. Worldwide tracking included. Ships from USA warehouses.
FAQ
Q: Pressure rating?
A: Seals differential pressure (Viton O-ring). Not pressure-tested by default.
Q: Other cable lengths?
A: Also available in 1m and 5m versions.
Q: Cold weather use?
A: Avoid sustained temperatures below -34°C to prevent seal damage.
