Product Description

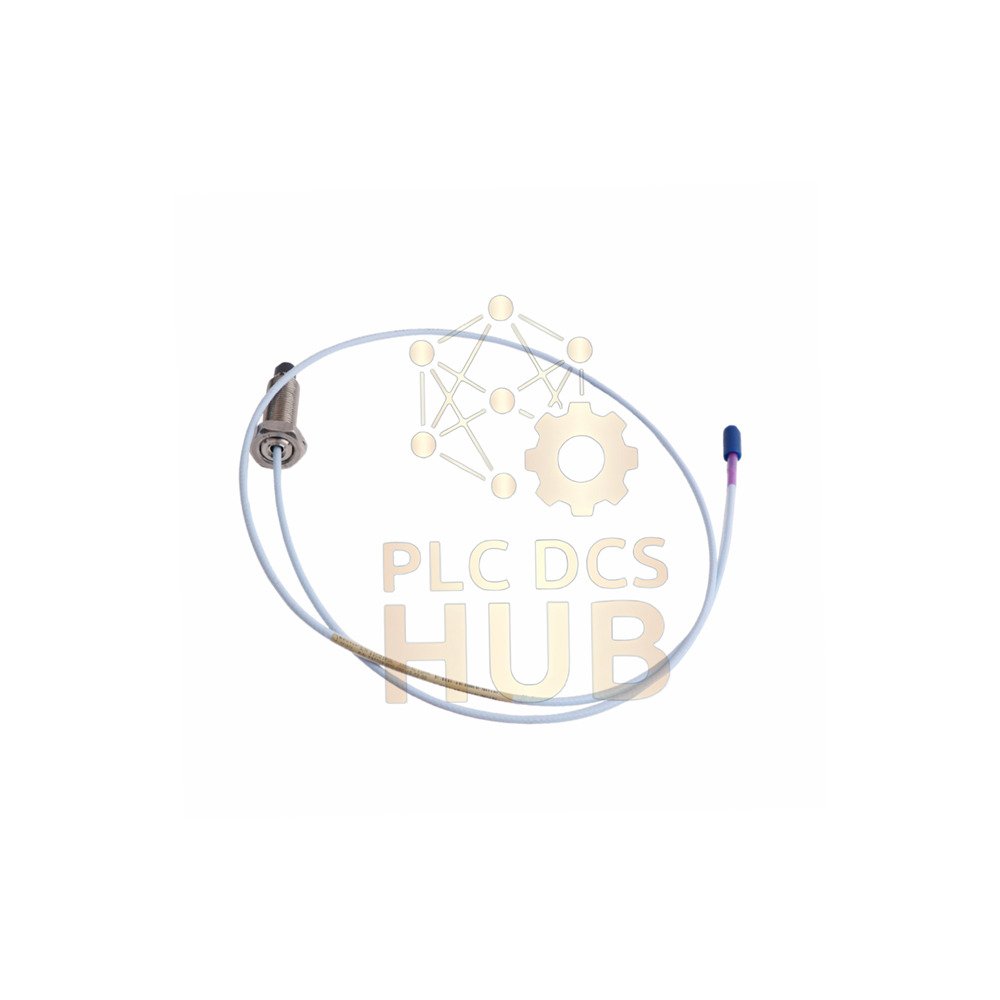

The 3300 XL 11 mm Proximity Probes measure vibration and shaft position. This model 330709-000-080-50-11-00 has no armor and no agency approval. It uses a M16 x 1.5 thread for mounting. This probe works only with the 5 meter Proximitor Sensor. Made in U.S.A by Bently Nevada.
Key Features
– Temperature range: -52°C to +177°C – Total length: 5.0 meters (16.4 feet) – Probe resistance: 7.2 ± 0.8 ohms – Minimum shaft diameter: 152 mm (6.0 inches) – Probe tip material: Polyphenylene sulfide (PPS) – Probe case material: AISI 304 stainless steel – Cable type: 75 ohm triaxial FEP insulated – Connector: Miniature coaxial ClickLoc with protector – Cable type: FluidLoc – Minimum bend radius: 25.4 mm (1.0 inch) – Agency approval option: 00 (not required)
Technical Specifications
– Brand: Bently Nevada – Model number: 330709-000-080-50-11-00 – Product type: 3300 XL 11 mm Proximity Probes – Measurement range: 11 mm probe tip diameter – Sensitivity: Factory set for 5m cable system – Linearity: Excellent with flat targets ≥30.5 mm – Resolution: High resolution for small position changes – Temperature range (operating): -52°C to +177°C – Temperature range (storage): -52°C to +177°C – Environmental tolerance: FEP cable resists oil and chemicals – Noise immunity: Triaxial design reduces electrical interference – Probe case torque (recommended): 21.1 N•m (187 in•lb) – Probe case torque (maximum): 63.3 N•m (560 in•lb) – Connector torque: Finger tight only, max 0.565 N•m – Thread size: M16 x 1.5 – Max thread engagement: 24 mm – Unthreaded length: 0 mm – Overall case length: 80 mm
Model Number Breakdown
– 330709 = 3300 XL 11 mm Probe, M16x1.5 thread, no armor – 000 = Unthreaded length (0 mm) – 080 = Overall case length (80 mm) – 50 = Total length (5.0 meters) – 11 = ClickLoc connector + FluidLoc cable + protector – 00 = Agency approval not required
Installation Guide
– Tighten probe case to 21.1 N•m (187 in•lb) – Do not exceed 63.3 N•m (560 in•lb) maximum torque – Turn connector finger tight only – Maximum connector torque is 0.565 N•m – Keep cable bend radius at least 25.4 mm – Use flat target of 30.5 mm diameter or larger – Use shaft diameter of 152 mm or larger – Keep probe above -34°C to protect pressure seal
Debugging & Maintenance
– Check probe health by measuring resistance – Normal resistance: 7.2 ± 0.8 ohms (center to outer conductor) – No special tools needed for connector – FluidLoc cable prevents fluid damage – ClickLoc connector gives secure connection each time
Compatibility
– This 5m probe works only with 5m Proximitor Sensor – Do not pair with 1m or 9m Proximitor sensors – Fits standard Bently Nevada monitoring systems
Certifications & Approvals
– Agency approval option: 00 (not required for this version) – For reference – temperature schedule applies: – EPL Ga and Gc: T1 (-55°C to +232°C), T2 (-55°C to +177°C) – EPL Ga and Gc: T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C) – EPL Dc: T280°C, T225°C, T170°C, T130°C, T105°C, T90°C
What’s in the Box
– 1 x 3300 XL 11 mm probe with 5m cable – 1 x Miniature coaxial ClickLoc connector – 1 x Connector protector – 1 x FluidLoc cable (pre-attached) – No mounting hardware or Proximitor sensor included
Warranty & Shipping
– 12 months warranty from purchase date – Covers factory defects and material issues – Shipping carriers: FedEx, UPS, DHL – Fast worldwide delivery available
Typical Applications
– Vibration monitoring on steam turbines – Shaft position measurement on compressors – Bearing wear detection on pumps – Unbalance diagnosis on fans and blowers – Rotor expansion tracking on generators
Diagnostic Capabilities
– Detects subsynchronous vibration – Identifies shaft rubs – Finds rotor imbalance – Measures slow shaft roll – Tracks bearing wear progression
FAQ – Frequently Asked Questions
Q1: Can I use this probe with a 9 meter Proximitor sensor?
A: No. This 5m probe requires a 5m Proximitor sensor.
Q2: Why does this version have 00 approval?
A: 00 means no agency approval needed. Choose this for non-hazardous areas.
Q3: What torque should I use for the probe case?
A: Use 21.1 N•m. Never exceed 63.3 N•m.
Q4: How do I know if my cable is damaged?
A: Measure resistance. Normal is 7.2 ± 0.8 ohms. Different values mean damage.
Q5: My site temperature is 150°C. Will this probe work?
A: Yes. The probe works up to 177°C. Keep above -34°C for seal life.
Q6: The ClickLoc connector feels loose. Is this a problem?
A: No. It only needs a light click. Do not force it tighter.
Q7: Can I bend the cable around a tight corner?
A: No. Minimum bend radius is 25.4 mm. Sharper bends break the cable.
Q8: What happens if I use a smaller shaft?
A: Readings become less accurate. Minimum shaft diameter is 152 mm.
Q9: Experience tells me to extend this cable. Can I do that?
A: No. Extending changes calibration. Order the right length instead.
Selection Guide
– Step 1: Choose total length (1m, 5m, or 9m). This model is 5m. – Step 2: Match probe length to Proximitor sensor length. – Step 3: Select thread type. This uses M16 x 1.5 metric. – Step 4: Pick unthreaded length. 000 = 0 mm is standard. – Step 5: Choose case length. 080 = 80 mm fits most. – Step 6: Decide on armor. 000 = no armor for standard use. – Step 7: Select approval option. 00 = not required for safe areas. – Pro tip: For high vibration areas, pick armored cable version. For hazardous areas, choose 05 approval option.
