Description
Product Description

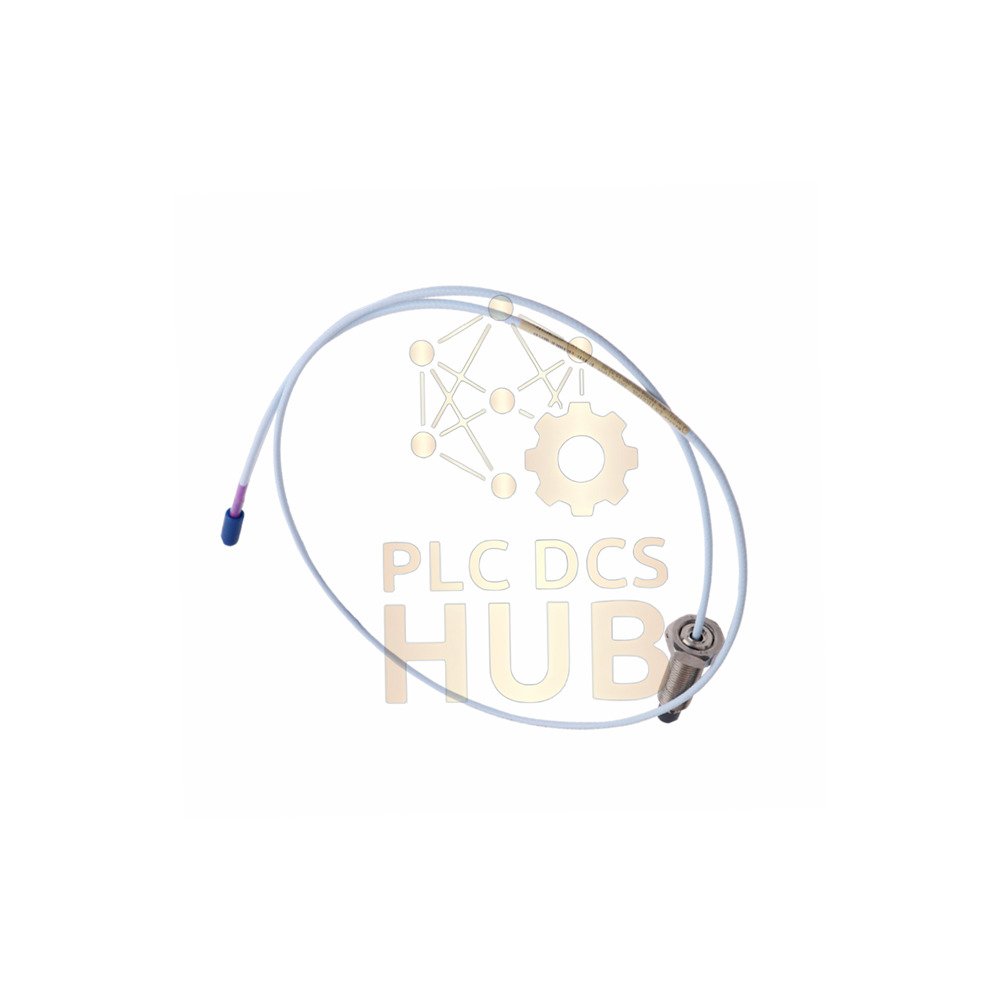

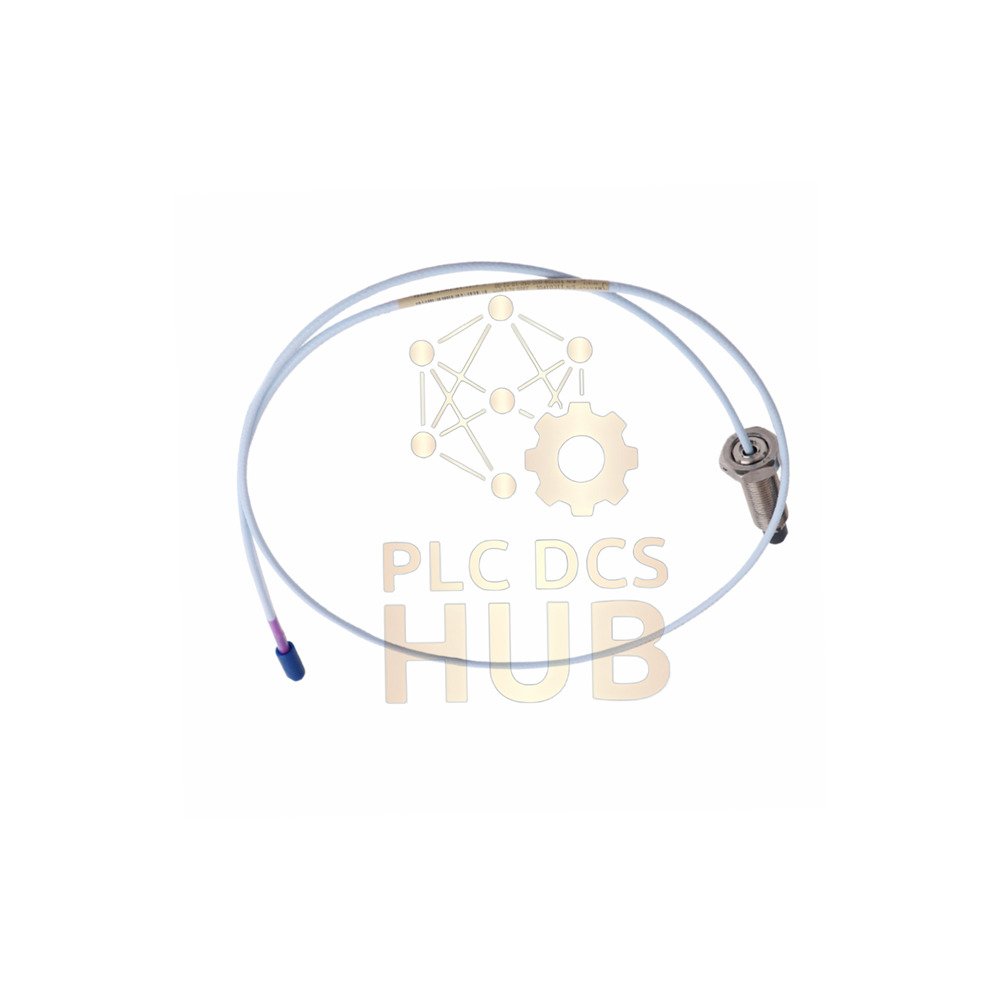

The 3300 XL 11 mm Proximity Probes from Bently Nevada measure shaft vibration and position. Model 330709-000-050-10-12-05 uses a M16 x 1.5 thread without armor. It has a 50 mm overall case length and a 1.0 metre total cable length. The probe includes a miniature coaxial ClickLoc connector with FluidLoc cable. This sensor resists moisture and works well in humid environments. Each unit ships new in original factory packing with a 12-month warranty.
Ordering Code Breakdown
- 330709 = 3300 XL 11 mm Probe, M16x1.5 thread, no armor
- 000 = 0 mm unthreaded length
- 050 = 50 mm overall case length
- 10 = 1.0 metre total length (3.3 feet)
- 12 = Miniature coaxial ClickLoc connector + FluidLoc cable
- 05 = Multiple agency approvals (global use)
Technical Specifications
- Brand: Bently Nevada
- Model: 330709-000-050-10-12-05
- Series: 3300 XL 11 mm Metric
- Measurement range: 0 to 4.6 mm (0 to 180 mil)
- Frequency response: 0 to 10 kHz
- Sensitivity: 7.87 mV/µm (200 mV/mil)
- Linearity: ±0.05 mm from 0.5 to 2.5 mm gap
- Resolution: 0.1 µm typical
- Probe tip: Polyphenylene sulfide (PPS)
- Probe case: AISI 304 stainless steel (SST)
- Cable type: 75 Ω triaxial, FEP insulated
- FluidLoc cable: Extra moisture protection for wet areas
- DC resistance: 5.9 ± 0.5 ohms (1.0 m cable)
- Operating temp: -52°C to +177°C (-62°F to +351°F)
- Storage temp: -52°C to +105°C (-62°F to +221°F)
- Humidity rating: 100% condensing (non-submersible)
- Low temp caution: Below -34°C may damage pressure seal
- Cross-talk limitation:
- Target flat surface min diameter: 30.5 mm
- Shaft min diameter: 152 mm
- 60 Hz magnetic immunity (5m system, mV pp/gauss):
- 0.5 mm gap: 0.001
- 2.5 mm gap: 0.009
- 4.6 mm gap: 0.027
Mechanical & Torque Values
- Probe case thread: M16 x 1.5
- Max thread engagement: 24 mm
- Recommended torque (case): 21.1 N·m (187 in·lb)
- Max torque (case): 63.3 N·m (560 in·lb)
- Connector torque (max): 0.565 N·m (5 in·lb)
- Connector torque (recommended): Finger tight only
- Minimum bend radius: 25.4 mm (1.0 in)
Installation Notes
- Keep probe above -34°C before and during install
- Do not over-tighten the ClickLoc connector
- Protect connectors from direct water spray
- Use recommended target and shaft sizes to avoid cross-talk
Calibration & Maintenance
- Factory calibrated – no field calibration needed
- Wipe probe tip gently with a soft cloth
- Check cable for cuts or kinks every 6 months
- FluidLoc cable needs no special maintenance
Compatibility
- Works with all Bently Nevada 3300 XL extension cables
- Fits 3300 XL proximity monitoring systems
- Compatible with 8 mm and 5 mm probes on same machine
- Requires 75 ohm coaxial extensions only
Certifications & Approvals
- Multiple approvals (Option 05) for global use
- EPL Ga, Gc for gas environments
- EPL Dc for dust environments
- Tested to IEC 68-2-3 damp heat
- Made in U.S.A
Packaging & Warranty
- Condition: New & original factory packing
- Warranty: 12 months from Bently Nevada
- Includes probe with FluidLoc cable and ClickLoc connector
- No extra parts needed for installation
Shipping Options
- FedEx Priority
- UPS Express Worldwide
- DHL International Freight
Typical Applications
- Vibration monitoring on gas and steam turbines
- Position measurement on large compressors
- Thrust monitoring on pumps and generators
- Eccentricity and expansion measurements
- Diagnoses bearing wear, unbalance, misalignment
Diagnostic Capability
- Real-time gap voltage output
- Works with 3300 XL monitors for trend analysis
- Detects subsynchronous vibration
- Helps identify shaft rub and looseness
Professional FAQ
- What is FluidLoc cable and when should I use it? FluidLoc cable resists moisture wicking inside the connector. Use it in high humidity or condensing environments like paper mills or offshore platforms.
- Why does this probe have multiple approvals (Option 05)? Option 05 means the probe meets safety standards for many countries. You can install it in Europe, North America, and Asia without extra certification.
- Can I use this M16 probe with an M14 mounting hole? No. The thread size is different. Use the correct adapter or order the M14 version (330703 or 330704).
- What happens if I exceed the minimum bend radius? The internal cable may break or change impedance. This causes noisy signals or complete failure. Keep bends larger than 25.4 mm.
- The pressure seal is not factory tested. Should I test it? Only if your application involves high differential pressure. Contact Bently Nevada custom design for pressure testing before installation.
Selection Guide (Buying Advice)
- Pick 330709 for M16 x 1.5 mounting holes without armor
- Choose unthreaded length 000 for standard flush mount
- Select overall case length 050 (50 mm) for most industrial machines
- Use total length 10 (1 meter) for short runs to junction boxes
- Pick connector option 12 with FluidLoc cable for wet or condensing areas
- Choose approval option 05 if your equipment ships to multiple countries
- Need 9 meter cable? Order total length option 90
- Need armor for crush protection? Order 330704 or 330706 instead
- Check your shaft diameter: Must be at least 152 mm for this probe
- Verify target flat diameter: At least 30.5 mm minimum
