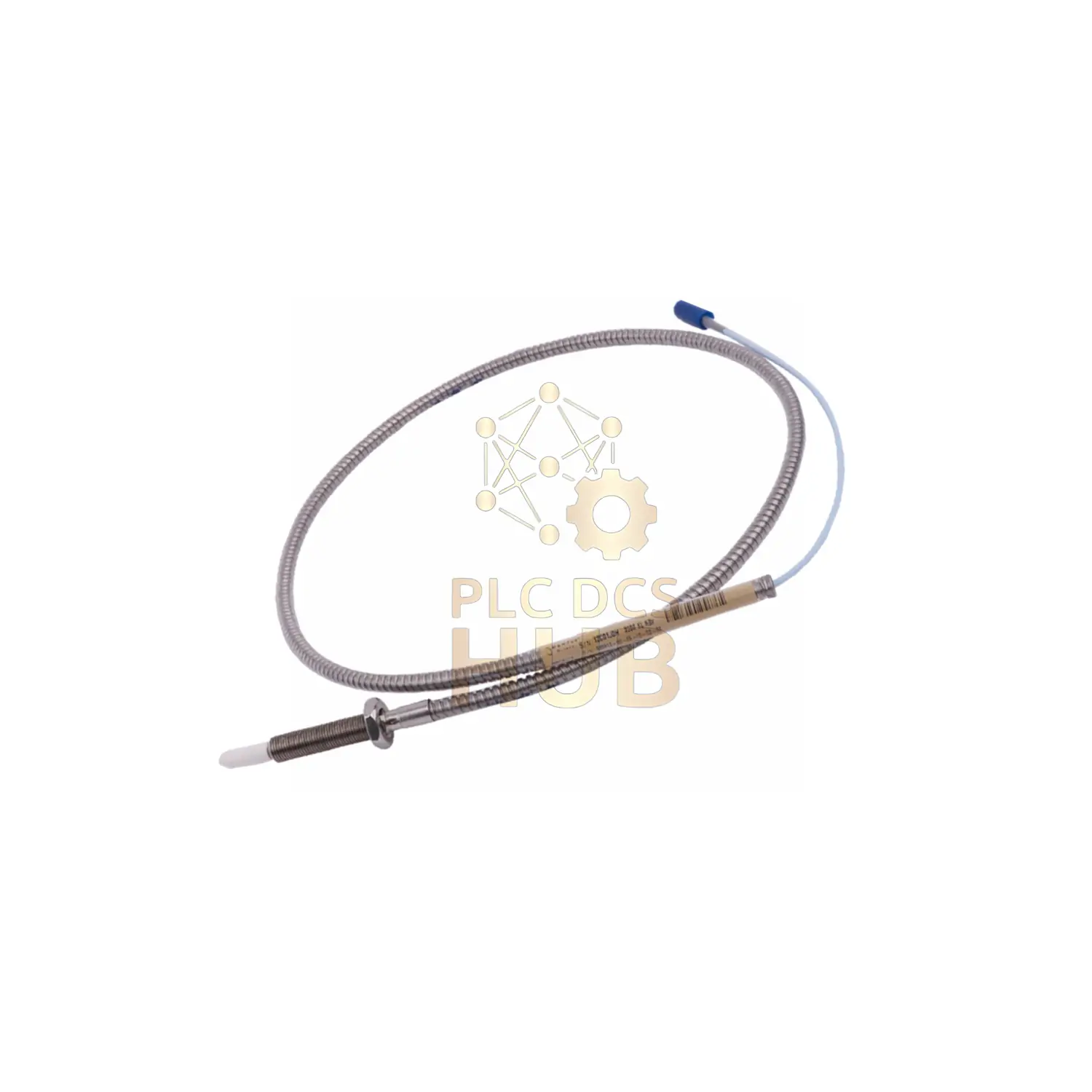

330904-00-10-05-01-00 Bently Nevada 3300 NSv Probe With Armor

Description

Bently Nevada 3300 NSv Proximity Probe: Precision Industrial Sensing

Product Description

New factory-packed Bently Nevada 330904-00-10-05-01-00 proximity probe. Features M8X1 threading, 100mm case length, and 0.5m armored cable. Direct replacement for 3300 RAM probes with improved chemical resistance and side-view performance. Ships with 12-month warranty.

Technical Specifications

• Brand/Model: Bently Nevada 330904-00-10-05-01-00
• Range: 1.5 mm (60 mils), linear from 0.25–1.75 mm
• Accuracy: ±0.06 mm (±2.3 mils)
• Output: -1 to -13 Vdc (7.87 V/mm scale factor)
• Temp Range: -52°C to +177°C operating & storage
• Cable: 0.5m FEP coaxial (75Ω) with ClickLoc connector
• Materials: PPS tip, AISI 304 stainless steel case

Installation Guide

• Gap Setting: Recommended 1.0 mm (40 mils)
• Torque: Finger tight (max 0.56 N•m)
• Min Target Size: 13 mm diameter
• Max Thread Engagement: 12 mm (M8X1)

Compatibility & Approvals

• Fully compatible with 3300 RAM systems
• Agency Approval: 00 (Not Required)

Packaging & Warranty

• New in original factory packaging
• 12-month manufacturer warranty
• Shipping: FedEx, UPS, or DHL

FAQ

• Q: Minimum target size?
  A: 8.9 mm diameter (13 mm recommended)
• Q: Max cable length?
  A: 305 meters field wiring
• Q: Pressure sealed?
  A: Viton O-ring seal (contact for testing)
• Q: Chemical resistance?
  A: Superior to 3300 RAM probes
