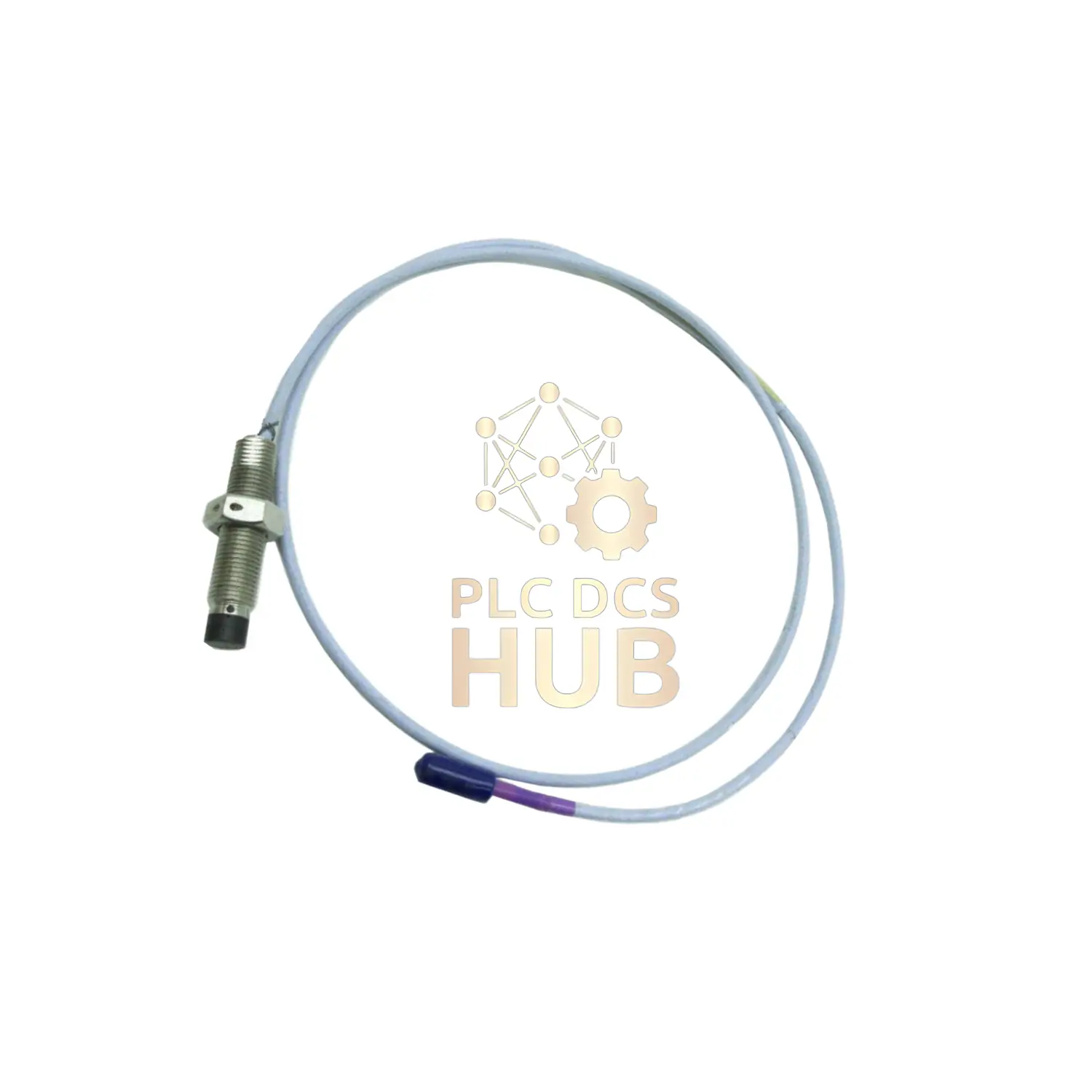

Bently Nevada 330904-08-10-70-01-05 NSv Probe – Long-Reach Vibration Sensor
New M8-threaded proximity probe with 7.0m extended cable and connector protector. Perfect for hard-to-reach machinery. Direct RAM probe replacement with multiple certifications. 12-month warranty.
Full Model Configuration
- 330904: Core vibration sensor
- -08-: 80mm unthreaded section
- -10-: 100mm total case length
- -70-: 7.0 meter cable (23 feet)
- -01-: Protected ClickLoc connector
- -05-: Multiple agency approvals
Detailed Specifications
- Resistance: 5.9Ω ±0.9Ω (7m cable)
- Frequency Range: 0-10kHz (±3dB)
- Temp Range: -52°C to +177°C
- Scale Factor: 7.87 V/mm ±12.5%/-20%
- Cable Type: 75Ω FEP coaxial
- Max Pressure: Viton O-ring sealed
- Accuracy: ±0.06mm linearity
Installation Notes
- Set 1.0mm gap from target
- Apply 5.1 N•m maximum torque
- Minimum 13mm target diameter
- Maintain >25.4mm cable bend
- Use shielded triad field wiring
Packaging & Delivery
- New in factory-sealed packaging
- 12-month warranty
- Shipped via FedEx/UPS/DHL
- Global delivery with tracking
Technical Questions
- Q: What’s the maximum cable length?
A: 7 meters standard – no extension needed - Q: Included certifications?
A: Multiple international approvals - Q: Resistance for 7m vs 1m cable?
A: 5.9Ω vs 4.2Ω due to length - Q: Suitable for offshore platforms?
A: Yes, corrosion-resistant materials - Q: Can I cut the cable if too long?
A: No – will damage calibration
