330907-05-30-70-12-05 Bently Nevada Reverse Mount Probe

Description

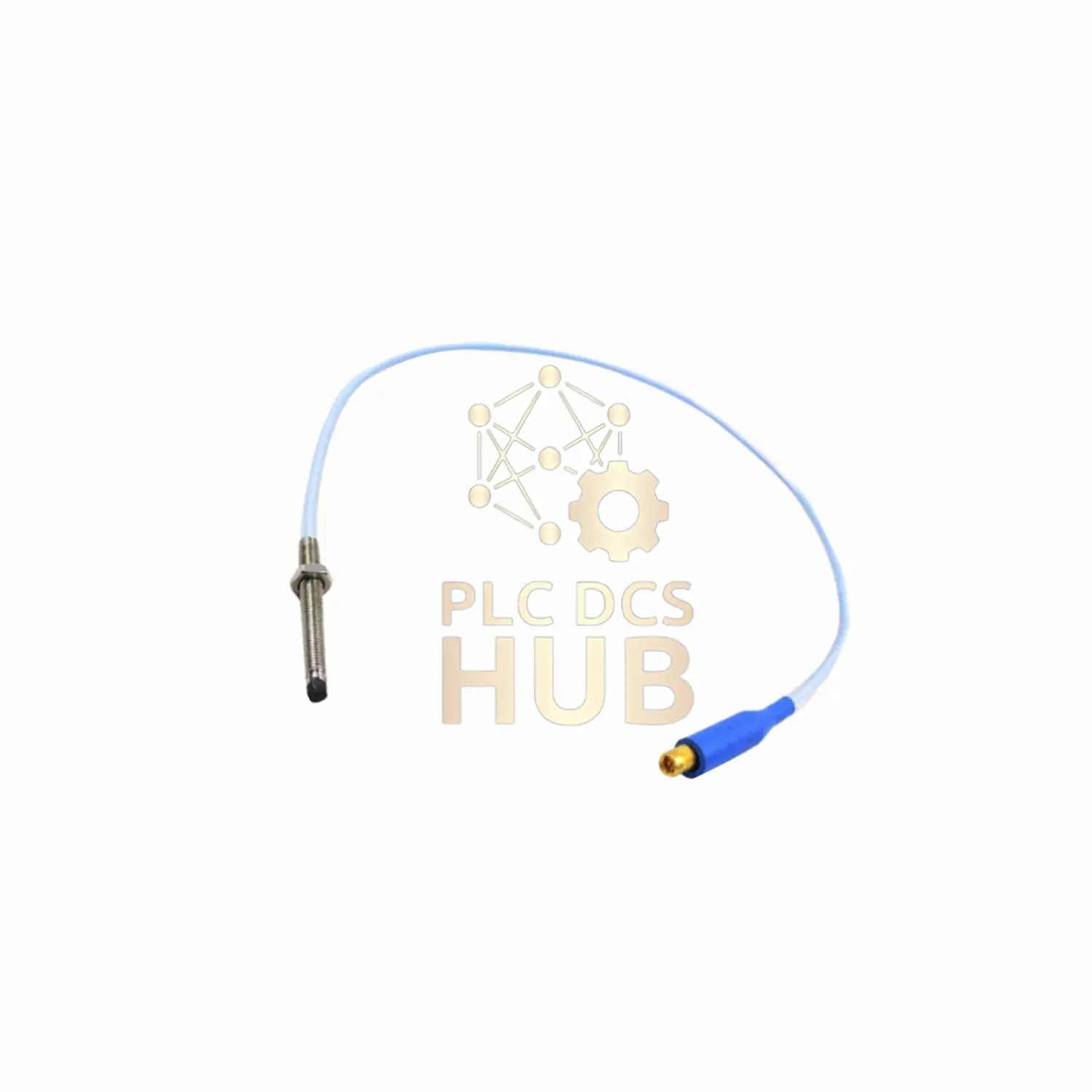

Bently Nevada 3300 NSv Reverse Mount Probe with Extended FluidLoc Cable

Product Overview

This 330907-05-30-70-12-05 reverse-mount probe features chemical-resistant construction and specialized FluidLoc cable for harsh industrial environments. With 7.0m cable length and global certifications, it delivers superior performance in process compressors.

Suffix Breakdown

• 330907: Base model
• 05: M10X1 thread size
• 30: Standard configuration
• 70: 7.0 meter cable length
• 12: FluidLoc cable with ClickLoc connector
• 05: Multiple agency approvals

Key Specifications

• Brand: Bently Nevada
• Resistance: 5.9 ± 0.9 ohms (7m cable)
• Linear Range: 0.25-1.75mm
• Cable Type: FluidLoc chemical-resistant
• Output: -1 to -13 Vdc
• Seal Material: Viton O-ring
• Pressure Rating: Differential pressure sealing
• Weight: 14-150g

Installation Details

• Optimal Gap: 1.0mm from target
• Max Torque: 7.5 N•m (66 in•lb)
• Thread Engagement: 15mm max
• Wiring: Shielded triad cable required
• Temp Warning: Avoid below -34°C sustained

Cable Advantages

The FluidLoc cable provides enhanced protection against oils, coolants, and chemicals.

Combined with gold-plated ClickLoc connectors, it ensures reliable signal transmission in wet environments.

Packaging Contents

• NSv Probe assembly
• Installation documentation

Global Shipping

FedEx | UPS | DHL express options available

Technical Questions

• Q: What’s the advantage of 7.0m length?
  A: Enables flexible mounting in large equipment with sensor distance
• Q: Difference between standard and FluidLoc cable?
  A: FluidLoc provides superior fluid resistance for wet environments
• Q: Can this probe handle high pressure?
  A: Viton O-ring seals differential pressure effectively
