Description

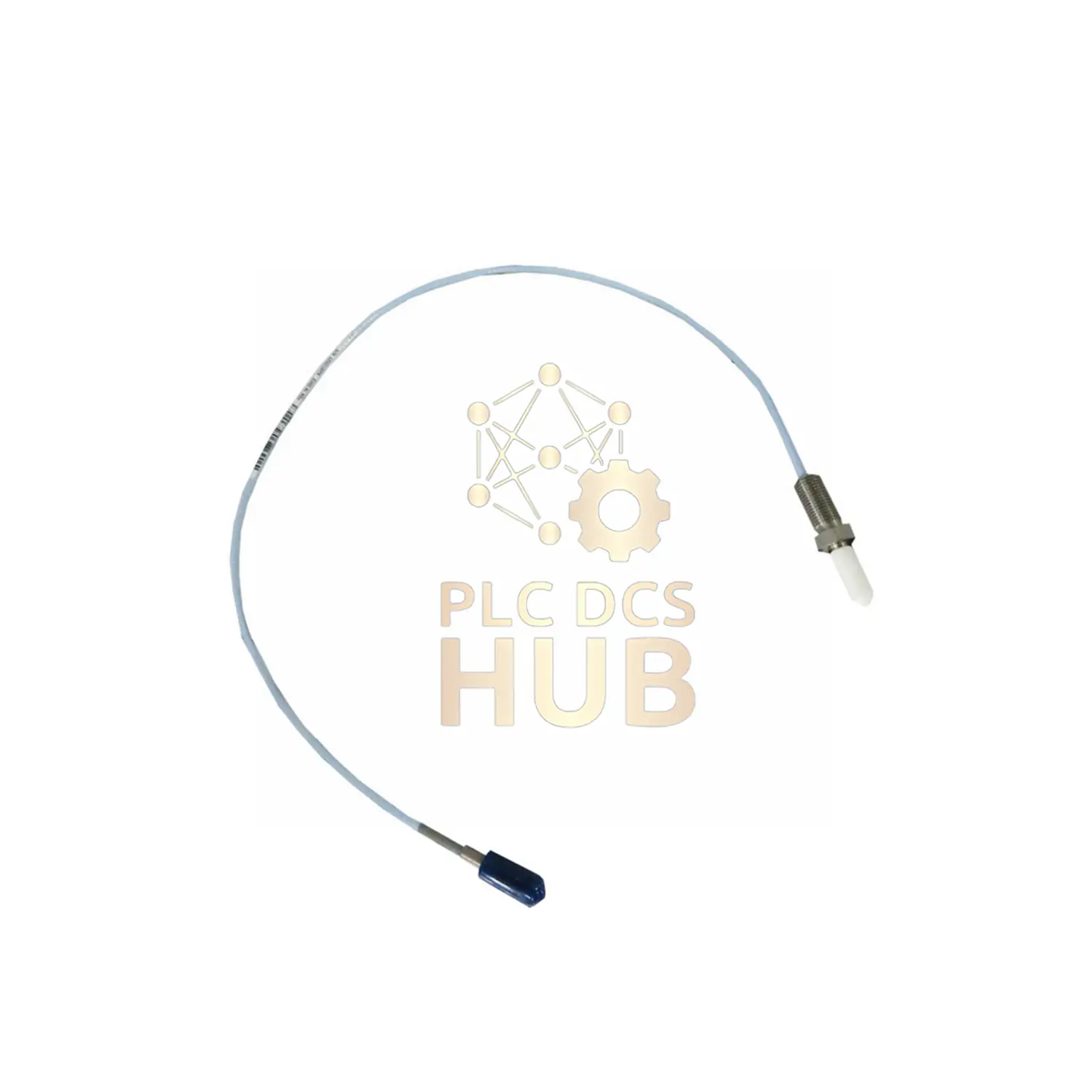

Bently Nevada 3300 NSv Reverse Mount Probe
Advanced Machinery Monitoring
The 330907-05-30-50-02-CN NSv probe delivers industrial-grade precision with country-specific certifications. Featuring M10X1 reverse threading and 5.0m standard cable, this U.S.-manufactured sensor provides enhanced chemical resistance for critical applications like process compressors. Gold-plated ClickLoc connectors ensure vibration-proof connections, while Viton O-ring seals maintain integrity under pressure differentials.
Complete Suffix Breakdown
- 330907 – Base product number
- 05 – Version identifier
- 30 – M10X1 thread configuration
- 50 – 5.0 meter cable length
- 02 – Standard cable with ClickLoc connector
- CN – Country-specific agency approvals
Technical Parameters
| Frequency Response | 0-10 kHz (±3dB) |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Dielectric Strength | 500 VAC for 1 minute |
| Vibration Limit | 20 g peak (10-2000 Hz) |
| Shock Resistance | 100 g (11 ms duration) |
Installation & Operation
Mounting: Reverse configuration with M10X1 threads
Gap Calibration: 1.0mm target distance optimal
Cable Routing: Avoid sharp bends >30mm radius
Signal Verification: -2.5 VDC at 1.0mm gap
Break-in Period: 48 hours continuous operation
Package Contents
- NSv probe assembly
- Thread protection cap
- Installation torque guide
- Optional COO documentation
- 12-month performance warranty
Model Comparison
| Model | Cable Length | Connector | Key Difference |
|---|---|---|---|
| 330907-05-30-50-02-CN | 5.0m | Standard | Current model |
| 330907-05-30-05-02-CN | 0.5m | Standard | Compact applications |
| 330907-05-30-10-12-CN | 1.0m | FluidLoc | Oil-resistant jacket |
Technical Questions
- What’s the maximum pressure differential?
Designed for 35 bar (500 psi) differential pressure
- Can I repair damaged cable?
No – cable is permanently molded to probe body
- How often should probes be recalibrated?
Every 24 months or after physical impact
- Is EMI protection included?
Triad shielding reduces RF interference by 90%
- What countries accept CN approval?
China, Brazil, India and 15+ industrial nations
