Description

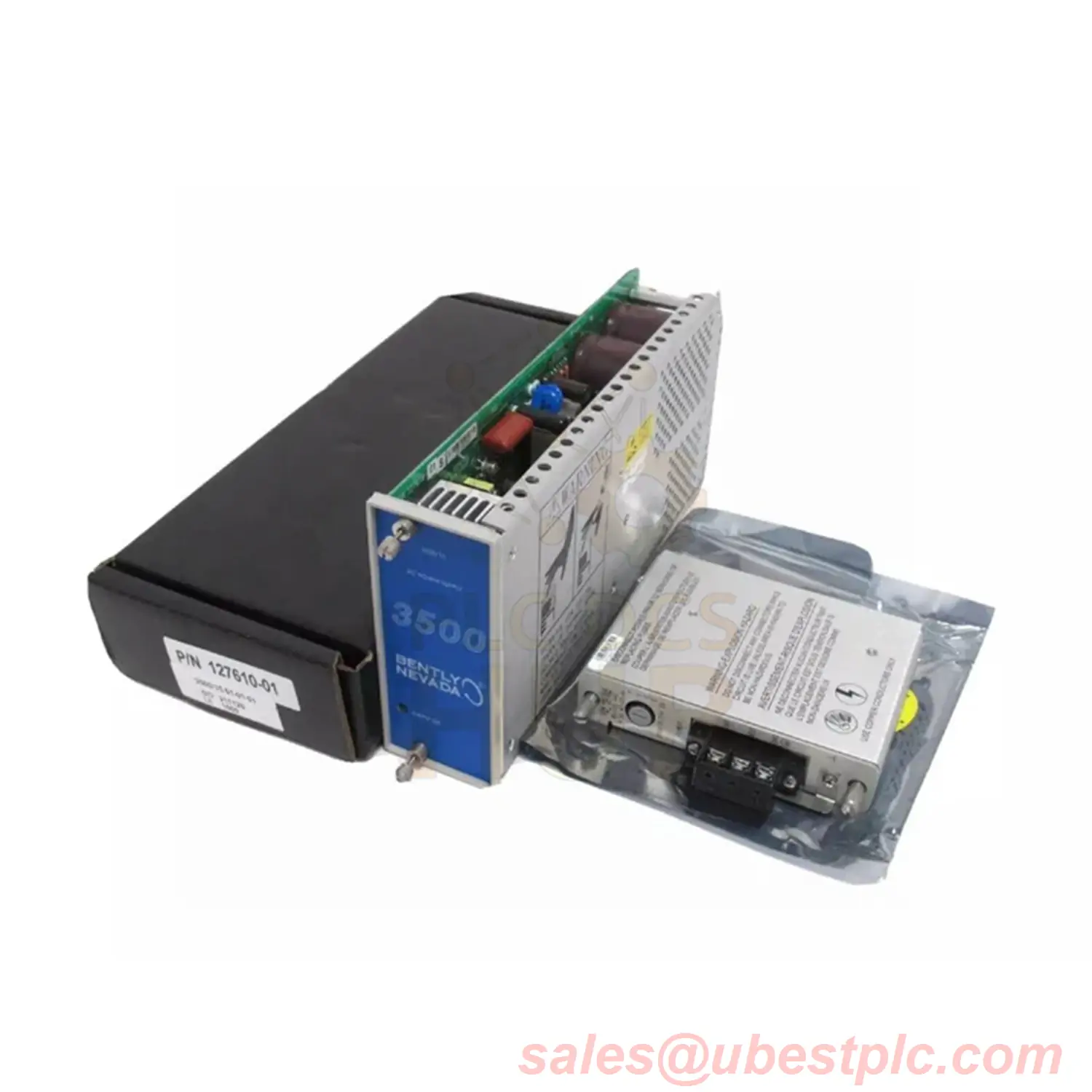

Bently Nevada Power Supply
A dual-input power module (3500/15-02-03-00) engineered for the 3500 Series Machinery Protection System. Manufactured in the U.S.A. with industrial-grade durability and wide voltage compatibility.
Key Specifications
- Part Number: 3500/15-02-03-00
- Input Configuration:
Top Slot: 175-264V AC
| Bottom Slot: 88-140V DC - Temp Range: -30°C to +65°C (Operational)
- Humidity Tolerance: 95% non-condensing
- Dimensions: 120.7×50.8×251.5mm (4.75″x2″x9.9″)
- Weight: 1.39kg (3.06lb) main module + 0.34kg (0.75lb) input modules
Critical Features
- Simultaneous AC/DC high-voltage input support
- Half-height design for space-optimized rack integration
- MIL-spec connectors for vibration resistance
- Short-circuit/overload protection circuits
Industrial Implementation
Deployed at Coastal Petrochemical Plant Delta, providing redundant power to 42 vibration monitors in Class I Div 2 areas with 99.98% uptime over 3 years.
Configuration Notes
- Requires dedicated left-side rack slots (positions 1-2)
- Minimum 25mm clearance above/below module
- Not compatible with legacy 3300 series racks
