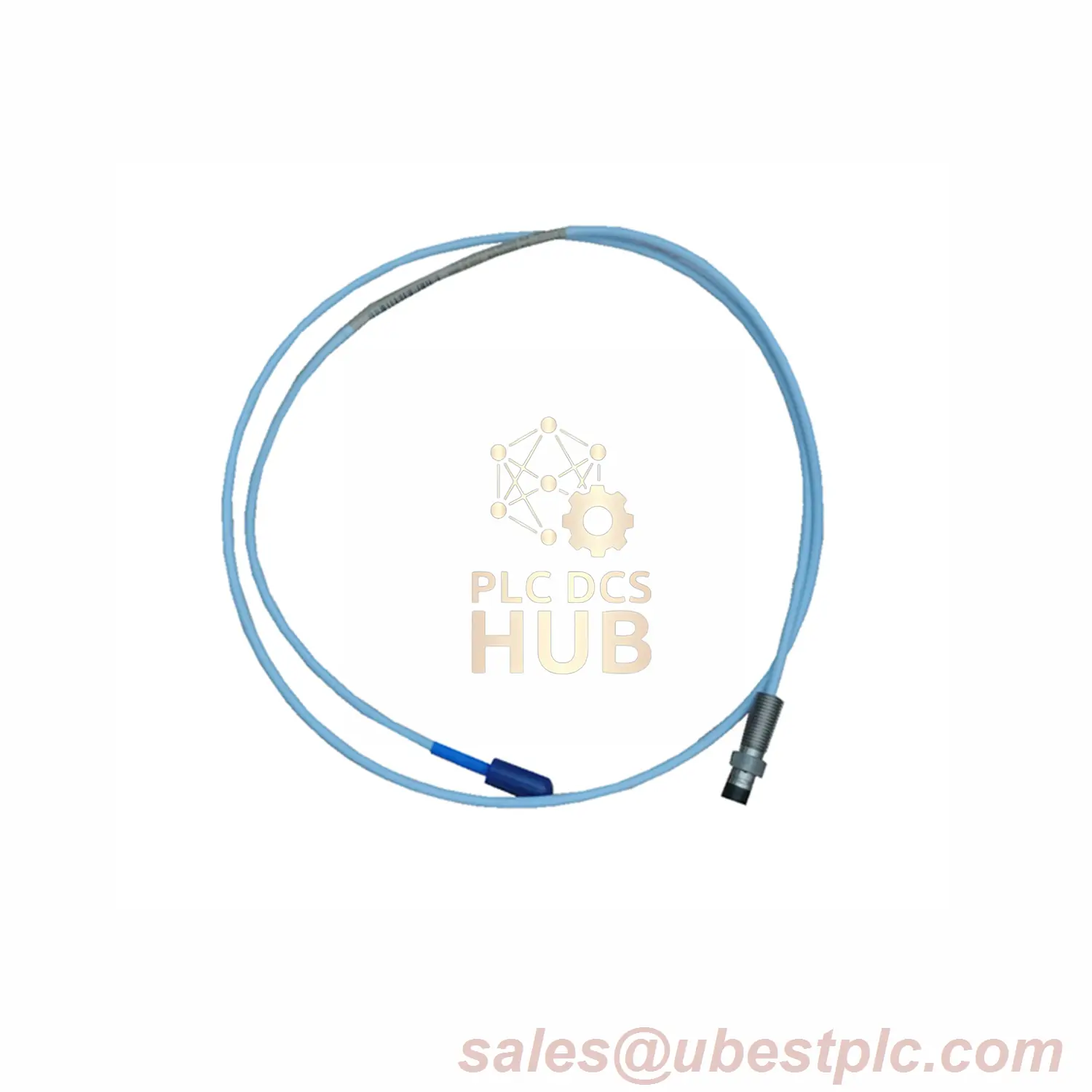

8 mm Proximity Probe – 330102-10-45-10-02-00 Bently Nevada

Description

Product Overview

The Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330102-10-45-10-02-00) delivers high-accuracy vibration monitoring for heavy-duty machinery. Built with a 3/8-24 UNF threaded stainless steel case and PPS tip, it resists wear in extreme conditions.

Key Features

• Unthreaded Length: 1 in (Option 10)
• Case Length: 4.5 in (Option 45)
• Connector: ClickLoc, no protector (Option 02)
• Seal Material: Viton® O-ring (not pressure-tested)

Technical Specifications

• Brand: Bently Nevada
• Model Suffix: 10-45-10-02-00
• Range: 0.25–2.3 mm (10–90 mils)
• Resistance: 7.59Ω ±0.5 (1.0m cable)
• Gap Setting: -9 Vdc (1.27 mm)
• Weight: 323 g/m (11.4 oz)
• Max Temp: +177°C (Probe), +260°C (Cable)

Installation Tips

Use 3/8-24 UNF thread with max 0.563 in engagement. Avoid bending the cable near the connector. For cold environments (below -34°C), inspect the O-ring regularly.

Compatible Systems

• Works with 5m/9m Proximitor sensors (1.0m cable).
• Do NOT mix 3m cables with 5m Proximitors.

Certifications

• Class I, Zone 2: AEx/Ex nA IIC T5-T1 Gc
• IEC 68-2-3: Humidity tested (93% for 56 days).

What’s Included

• Probe, 1.0m cable
• 12-month warranty.

Need Help? Email sales@ubestplc.com or call +86 158 8020 0923

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
