ABB V18345-1021120001 TZIDC HART Positioner Double Acting Fail Freeze

Description

Brief Introduction

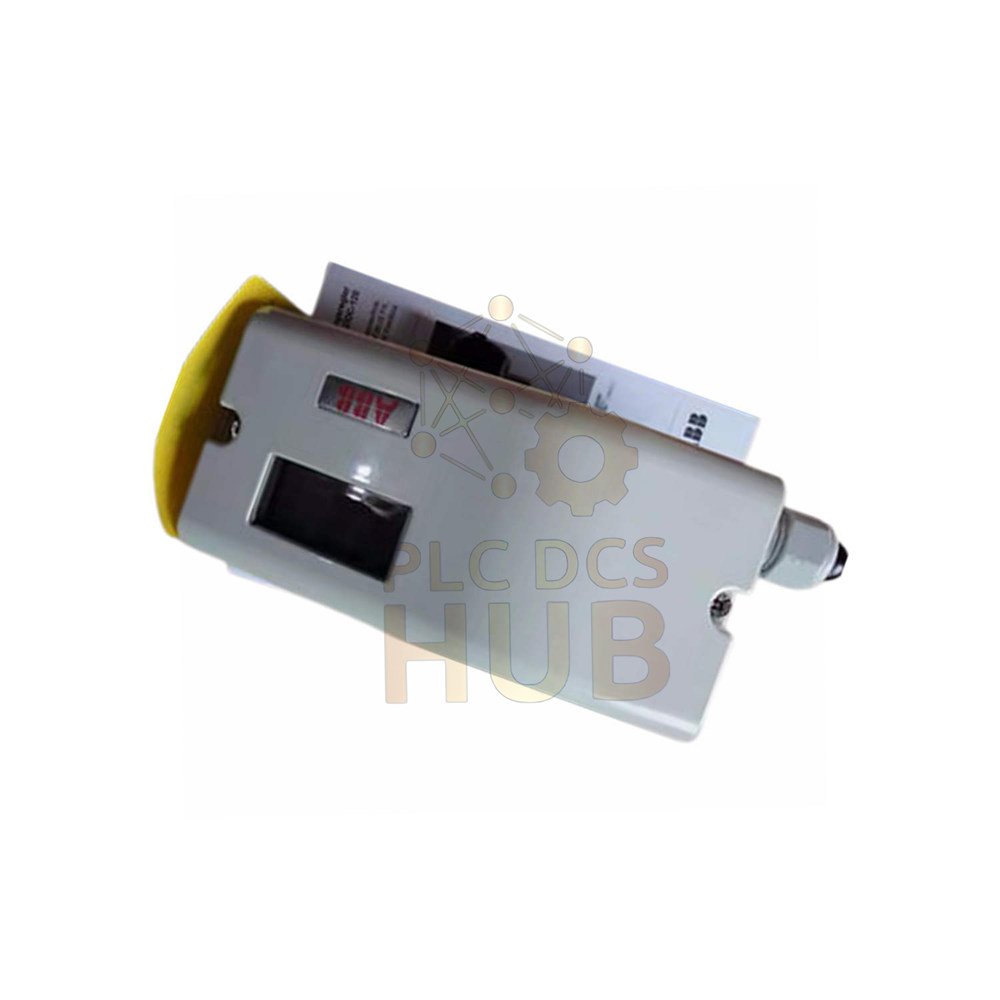

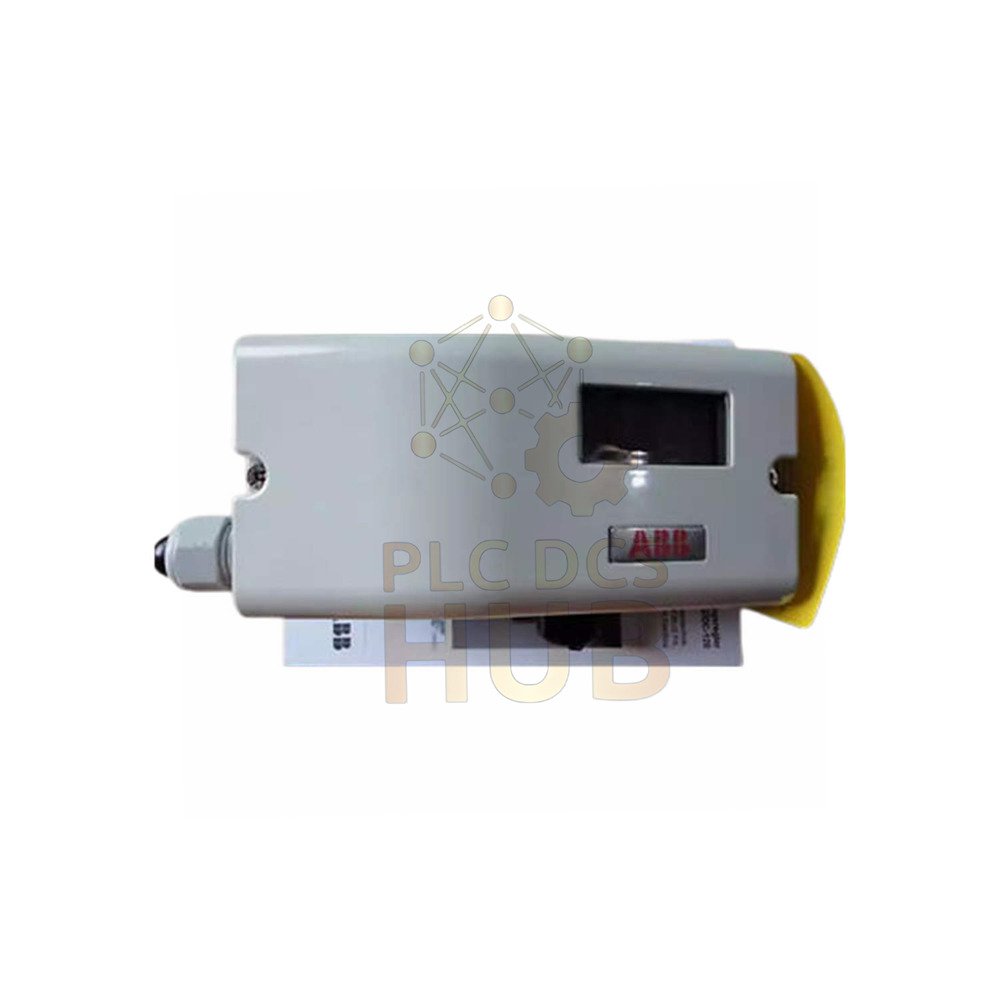

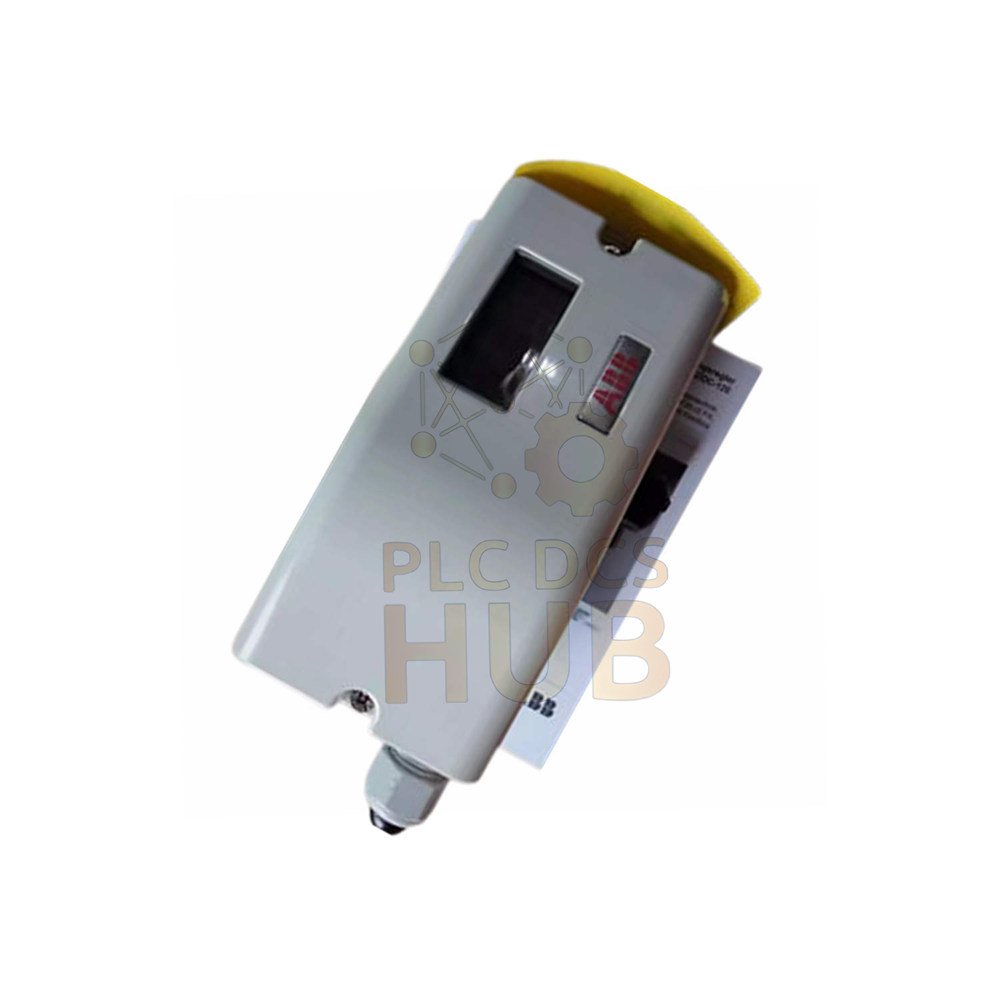

The ABB V18345-1021120001 is an electro-pneumatic valve positioner from the TZIDC series. It controls valve position with smart digital technology. This unit includes a built-in display and operator panel. The device supports HART communication for remote setup. It carries FM and CSA explosion protection approvals.

Technical Specifications

• Brand: ABB
• Model Number: V18345-1021120001
• Series: TZIDC
• Product Type: Electro-Pneumatic Valve Positioner
• Case Material: Aluminum, IP65 (NEMA 4X)
• Case Color: Black RAL 9005 matt, cap Pantone 420
• Input Signal: 4-20 mA with LKS adapter and FSK module for HART
• Explosion Protection: FM/CSA approved
• Output Action: Double acting, fail freeze
• Electrical Connection: 1/2-14 NPT (2 threads)
• Air Connection: 1/4-18 NPT or G 1/4
• Analog Feedback: None (option 0)
• Operating Temperature: -40°C to +85°C
• Temperature with SJ2-S1N switches: -25°C to +85°C
• Operational Humidity: 95% average, condensation allowed
• Storage Humidity: 75% average, non-condensing
• Screw Terminal Size: Max 1.0 mm² for options, 2.5 mm² for analog signal
• Weight: 1.7 kg

Ordering Code Breakdown (Tree View)

• V18345 = TZIDC intelligent positioner with display and keypad
  • 10 = Aluminum case IP65, no mechanical indicator
  • 2 = 4-20mA with LKS adapter plus FSK module for HART
  • 1 = FM/CSA explosion protection
  • 1 = Double acting, fail freeze
  • 2 = Electrical 1/2-14 NPT, Air 1/4-18 NPT
  • 0 = No analog feedback
  • 00 = No mechanical feedback
  • 1 = Standard design

Installation Guide

• Mount the positioner on the valve assembly.
• Connect air supply to 1/4-18 NPT or G 1/4 ports.
• Wire 4-20 mA signal to screw terminals.
• Do not put strain on the terminal wires.
• Use cable glands on the 1/2-14 NPT threads.
• Keep one thread with a pipe plug if not used.
• Close the housing properly for IP65 protection.

HART Communication Setup

• The FSK module enables HART communication.
• Connect a HART modem to the 4-20 mA loop.
• Use HART handheld or PC software for configuration.
• Read live valve position data remotely.
• Adjust parameters without opening the housing.

Environmental Tolerance

• Works in very cold temperatures down to -40°C.
• Handles hot environments up to +85°C.
• High humidity up to 95% is fine. Condensation is allowed.
• IP65 case keeps dust and water jets out.
• Epoxy varnish coating resists corrosion.

Electrical Connections – Important Notes

• Screw terminals accept wires up to 2.5 mm² for analog signal.
• Options wiring uses max 1.0 mm².
• Never put strain on the terminals. Use cable ties nearby.
• Two cable entries available: 1/2-14 NPT or M20x1.5.
• One entry comes with cable gland. The other has a pipe plug.

Compatibility

• Works with any pneumatic valve actuator.
• Accepts standard 4-20 mA control signals from any DCS or PLC.
• Double acting output suits double-acting actuators.
• HART communication works with any HART master device.
• FM/CSA approval allows use in hazardous locations.

Packing List

• 1 x ABB V18345 TZIDC positioner
• 1 x LKS adapter with connector plug
• 1 x FSK module for HART communication
• Original factory packing

Warranty & Shipping

• 12-month warranty covers defects.
• We ship worldwide with FedEx, UPS, or DHL.
• Tracking number provided for all orders.

Typical Applications

• Hazardous area valve control (FM/CSA rated)
• Chemical and petrochemical plants
• Oil and gas pipelines with remote HART monitoring
• Power plant steam valve positioning

Diagnostic Capabilities

• Read valve position via HART communication.
• Monitor deviation between setpoint and actual position.
• Check positioner health remotely.
• Use built-in display for local diagnostics.

Professional FAQ

• Q: What is the difference between V18345-1021120001 and V18345-1010521001?
• A: This model adds HART communication (digit 2) and FM/CSA explosion protection (digit 3). The other model has neither.
• Q: Can I use this positioner in very cold climates?
• A: Yes. It works down to -40°C. Perfect for outdoor winter applications.
• Q: What happens to condensation inside the housing?
• A: Condensation is allowed. The electronics can handle it when the housing stays closed.
• Practical tip from engineers:
• Always use shielded cable for the 4-20 mA loop with HART. Noise can disrupt HART communication.
• Selection guide for buyers:
• Choose V18345-1021120001 for hazardous locations needing FM/CSA approval and HART.
• Do you need analog position feedback? Pick digit 7 = 1 instead of 0.
• No explosion protection needed? Select V18345-1011120001 (digit 3 = 0).
• Need single acting fail close? Change digit 4 to 4 instead of 1.
• Confirm your thread type. This model uses NPT. Choose metric threads if needed (digit 5 option).
