ABB V18345-1011121001 TZIDC Positioner | ATEX Ex II 2 G Electro-Pneumatic

Description

Product Description

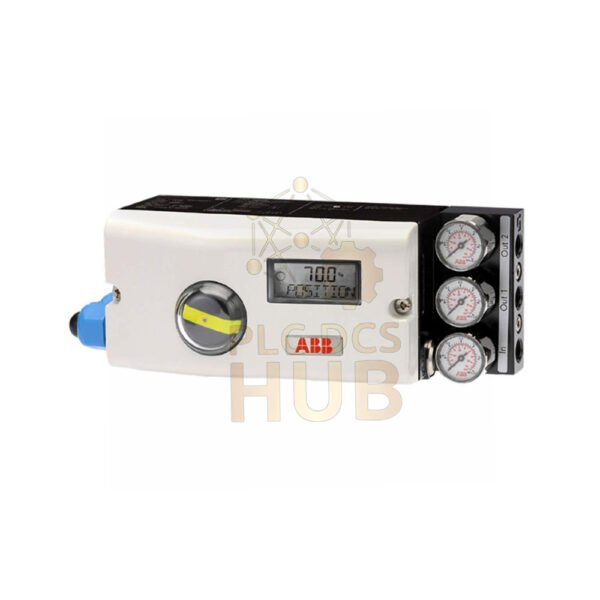

The V18345-1011121001 from ABB is a TZIDC electro-pneumatic positioner. It is intelligent, configurable, and includes an indicator and operator panel. This device has ATEX Ex II 2 G explosion protection for hazardous areas. The aluminum case provides IP65 (NEMA 4X) protection. It uses single acting output with fail safe function. The positioner includes a plug-in analog feedback module (4-20 mA). Each unit ships with a 12-month warranty.

Model Number Breakdown

• V18345 = TZIDC electro-pneumatic positioner, intelligent, with indicator and operator panel
• 10 = Aluminum case IP65 (NEMA 4X), no mechanical indicator
• 1 = 4-20 mA input with LKS adapter
• 1 = ATEX Ex II 2 G EEx ib IIC T6 explosion protection
• 1 = Single acting, fail safe
• 2 = Electrical connection 1/2-14 NPT, Air connection 1/4-18 NPT
• 1 = Plug-in analog position feedback (4-20 mA, two-wire)
• 00 = No mechanical feedback kit
• 1 = Standard design

Technical Specifications

• Brand: ABB
• Model: V18345-1011121001
• Series: TZIDC
• Product type: Electro-pneumatic positioner
• Weight: 1.7 kg (3.75 lb)
• Supply pressure range: 1.4 to 6 bar (20 to 90 psi)
• Air consumption: Less than 0.03 kg/h (0.015 scfm)
• Characteristic deviation: ≤ 0.5%
• Dead band: 0.1 to 10% (adjustable)
• Tolerance band: 0.3 to 10% (adjustable)
• Resolution (A/D conversion): More than 4000 steps
• Sample rate: 20 milliseconds

Air Supply Requirements

• Use instrument air free of oil, water, and dust
• Meets DIN/ISO 8573-1 Class 3
• Max particle size: 5 µm
• Max particle density: 5 mg/m³
• Max oil concentration: 1 mg/m³
• Pressure dew point: 10 K below operating temperature
• Do not exceed actuator maximum pressure

Output & Signal Configuration

• Output 1 – Increasing signal: 0-100% signal increases output pressure OUT 1
• Output 1 – Decreasing signal: 0-100% signal decreases output pressure OUT 1
• Direct action: 4-20 mA signal = 0-100% position
• Reverse action: 20-4 mA signal = 0-100% position
• Characteristic curves available:
• Linear
• Equal percentage 1:25, 1:50, 25:1, or 50:1
• Freely configurable with 20 reference points

Environmental Influences

• Temperature influence: ≤ 0.5% per 10°C change
• Vibration influence: ≤ ±1% up to 10g at 80 Hz
• Seismic requirements: Meets DIN/IEC 68-3-3 Class III (strong earthquakes)
• Mounting orientation: No effect on performance

Explosion Protection (ATEX)

• Certification: ATEX Ex II 2 G EEx ib IIC T6
• Suitable for gas hazardous areas (Zone 1 and Zone 2)
• Intrinsically safe design (ib protection level)
• Gas group IIC (hydrogen, acetylene, etc.)
• Temperature class T6 (max surface temp 85°C)

Installation Guide

• Mount on linear or rotary actuators
• Use clean instrument air per DIN/ISO 8573-1 Class 3
• Connect 4-20 mA signal to two-wire input via LKS adapter
• Use 1/4-18 NPT fittings for air supply
• Secure electrical cable with 1/2-14 NPT connector
• Do not exceed actuator maximum pressure rating

Calibration & Maintenance

• Intelligent auto-calibration via TZIDC software
• Operator panel allows local configuration
• No special tools needed for setup
• Replace air filter regularly (5 µm rating)
• Inspect O-rings and seals every 12 months

Typical Applications

• Hazardous area process control (chemical, petrochemical)
• Oil and gas production facilities
• Pharmaceutical manufacturing
• Power plant steam valve control
• Refinery critical valve positioning

Diagnostic Capability

• Built-in analog position feedback (4-20 mA, two-wire)
• Local indicator shows valve position in real time
• Operator panel displays fault codes and alerts
• Configurable characteristic curves with 20 points
• Adjustable dead band and tolerance band

Warranty & Shipping

• Warranty: 12 months from shipment date
• Condition: New & original factory packing
• FedEx – Priority shipping available
• UPS – Express worldwide
• DHL – International freight

Package Contents

• 1 x V18345-1011121001 TZIDC positioner
• Analog position feedback module (installed)
• Operator panel with indicator
• LKS adapter for input connection
• Mounting kit not included (order separately)
• Manual available from ABB support

Professional FAQ

• What is the difference between fail safe and fail freeze? Fail safe moves the actuator to a safe position (open or closed) on power loss. Fail freeze locks in last position. This unit has fail safe.
• Can I use this positioner in Zone 0 hazardous area? No. ATEX Ex II 2 G is for Zone 1 and Zone 2 only. For Zone 0, you need a different certification.
• What does the 4000 step resolution mean? The positioner can detect very small changes in valve position. 4000 steps means fine control with 0.025% resolution of full range.
• Does mounting orientation affect calibration? No. The positioner automatically compensates for any orientation. You can mount it upside down or sideways without re-calibration.
• How often should I replace the air filter? Check every 6 months. Replace every 12 months or sooner if air supply is dirty. Dirty air will damage internal parts.

Buying Guide – Selection Advice

• Need ATEX Zone 1 or Zone 2? This model has Ex II 2 G
• No mechanical indicator needed? Option 10 removes it
• Single acting fail safe application? Code 1 is correct
• Check your air quality: Must meet Class 3 standard
• Supply pressure range: 1.4 to 6 bar (20-90 psi)
• Electrical connection: 1/2-14 NPT (standard in USA)
• Order mounting kit separately for your actuator brand
• Add external filter regulator for clean air supply
• Keep spare positioner for critical hazardous area lines
• Download TZIDC manual before installation and setup
