Description

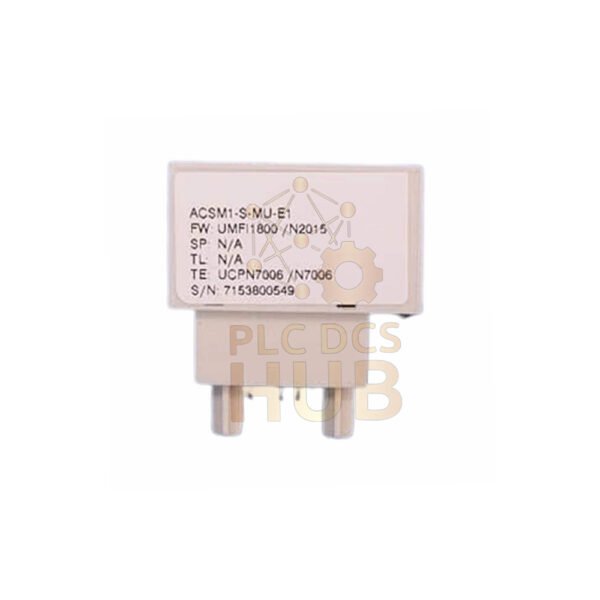

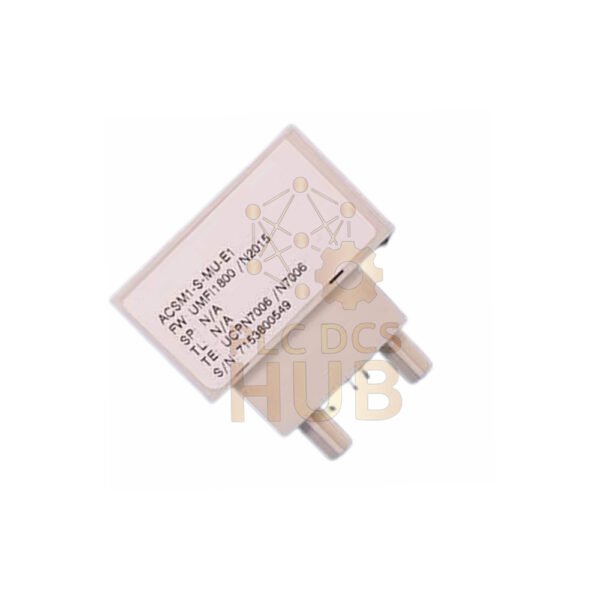

ACSM1-S-MU-E1 ABB JCU-01 Control Unit
ACSM1-S-MU-E1 is a compact drive control unit engineered for precision motor control.
It supports advanced vector and V/f control strategies.
Designed for industrial drive systems requiring flexibility and reliability.
Core Drive Control Capabilities
- Supports vector control for high dynamic performance
- Enables V/f control for standard motor applications
- Provides torque and speed regulation modes
- Ensures stable operation across varying load conditions
Electrical Performance Range
- Frequency range: 50/60 Hz
- Voltage range: 200–690 V across multiple classes
- Power range: 0.75 kW to 355 kW
- Output current up to 100 A depending on configuration
Communication & Integration
- Supports Modbus for standard industrial communication
- Compatible with Profibus networks
- Integrates with CANopen systems
- Flexible for multi-protocol automation environments
Environmental & Mechanical Profile
- Operating temperature range from -10°C to +50°C
- Protection class rated at IP20
- Compact dimensions: 55 × 330 × 90 mm
- Lightweight design at approximately 0.2 kg
PLCDCS HUB’s Insight
- Highly adaptable for both simple and complex drive systems
- Efficient solution for precision motion control tasks
- Reliable in continuous industrial operations
- Recommended for scalable automation architectures
Application Scenarios
- Industrial motor drive systems
- Conveyor and material handling equipment
- Packaging and processing machinery
- HVAC and pump control systems
- Manufacturing automation lines
Diagnostic Capabilities
- Supports real-time monitoring of drive performance
- Enables fast fault detection and response
- Improves maintenance planning with system feedback
- Enhances operational reliability and uptime
Professional FAQ
- How to select the correct control mode?
- Choose vector control for precision and V/f for basic applications.
- What is a key installation consideration?
- Ensure proper ventilation to maintain operating temperature limits.
- Can it integrate with existing automation networks?
- Yes, it supports multiple protocols for flexible system integration.
- How to optimize performance in variable load conditions?
- Use torque control mode to maintain stable output.
- What are the delivery and warranty terms?
- Includes 12-month warranty with 24–48 hour shipping via DHL, UPS, or FedEx.
