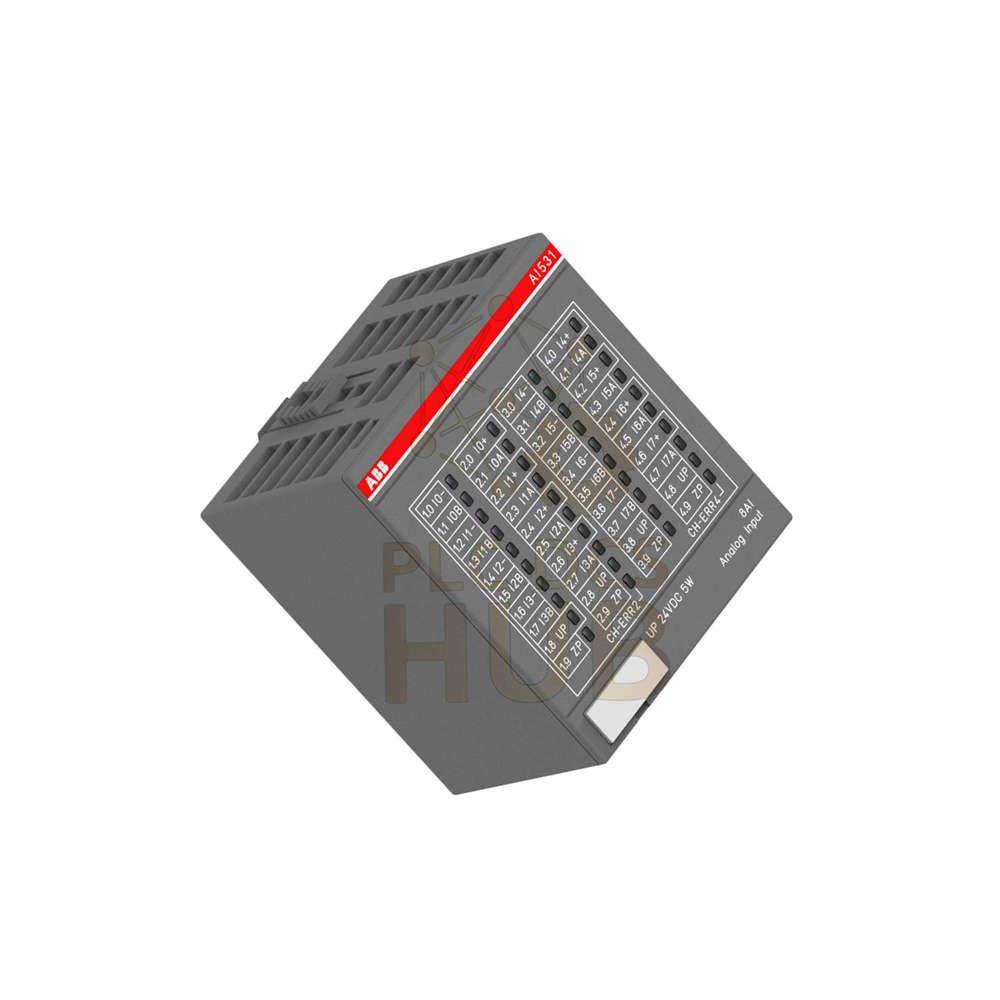

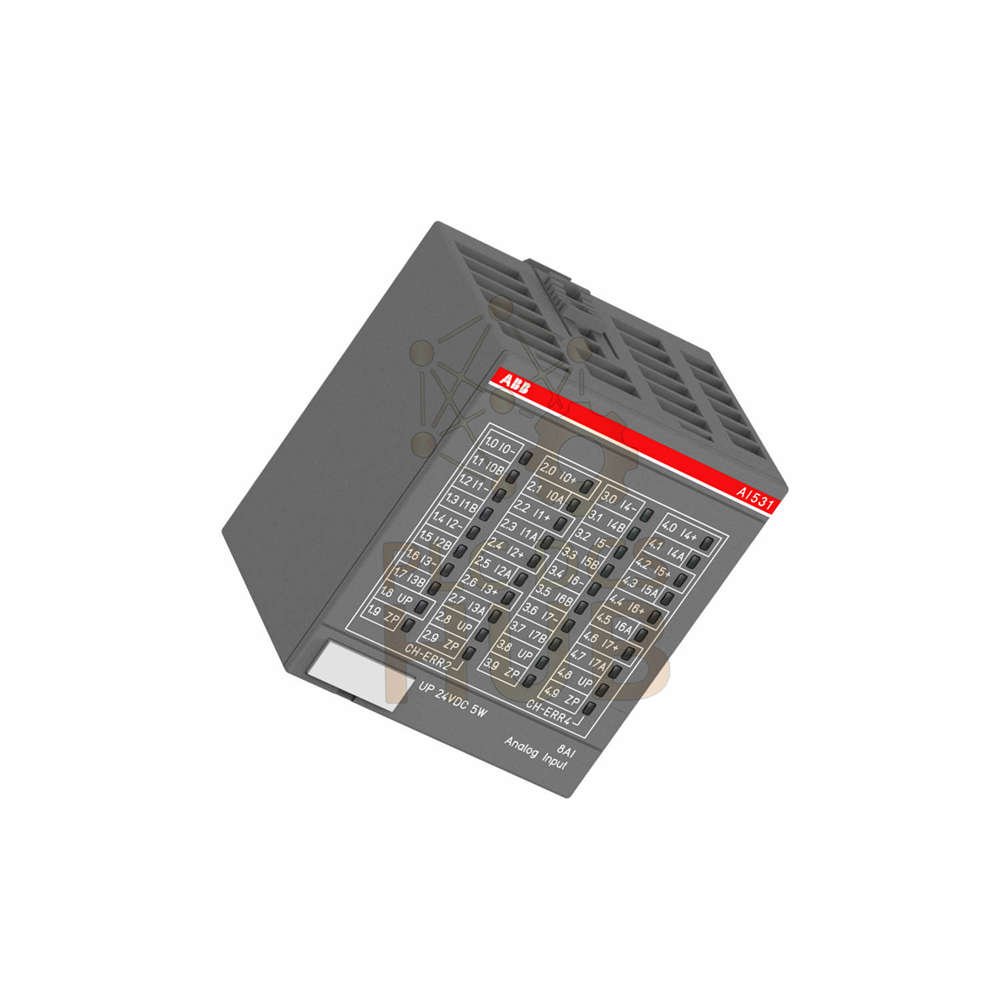

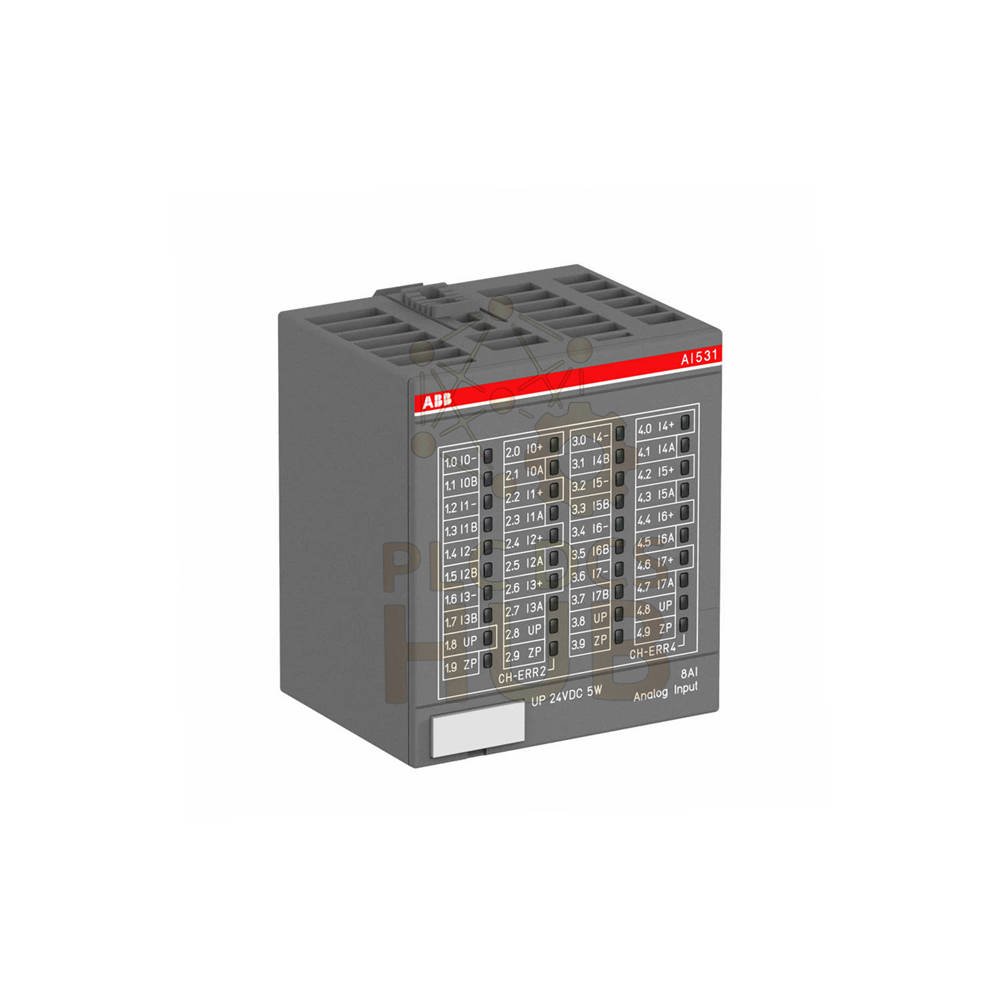

AI531 1SAP250600R0001 ABB S500 Analog Input Module 8 Channel High Precision

Description

AI531 1SAP250600R0001 ABB Analog Input Module – Precision Data Acquisition

AI531 1SAP250600R0001 provides high-accuracy analog signal acquisition for industrial automation.
It supports multiple voltage and current ranges with flexible configuration.
Designed for ABB S500 systems, it ensures stable performance and reliable measurement.
Ideal for applications requiring precise and fast analog data processing.

Signal Processing Capabilities

• Supports 8 analog input channels.
• Handles both voltage and current signals.
• Flexible ranges enable wide application coverage.
• High compatibility with industrial sensors.

Measurement Performance

• 16-bit resolution ensures precise signal conversion.
• Accuracy reaches ±0.1% full scale.
• Conversion time: less than 5 ms per channel.
• Low temperature drift enhances stability.

Electrical & Power Characteristics

• Powered by 24V DC supply.
• Power consumption approximately 2 W.
• Isolation voltage: 500 V channel to bus.
• Ensures safe and stable system integration.

Environmental & Mechanical Design

• Operating temperature: 0°C to 55°C.
• Storage temperature: -40°C to 85°C.
• Humidity range: 5% to 95% non-condensing.
• Compact size supports efficient cabinet layout.
• Protection class: IP20.

PLCDCS HUB’s Insight

• This module fits precision monitoring systems.
• Ideal for process control and instrumentation.
• Recommended for industries requiring stable measurement.
• Works well with ABB S500 PLC architectures.

Application Scenarios

• Process automation systems
• Energy monitoring and control
• Industrial data acquisition systems
• Manufacturing process control
• Instrumentation and measurement setups

Diagnostics & Reliability

• Ensures accurate signal tracking across channels.
• Reduces measurement errors with stable calibration.
• Supports system-level diagnostics via PLC integration.
• Improves operational efficiency through reliable input data.

Logistics & Warranty

• 12-month warranty ensures product confidence.
• Ships within 24–48 hours.
• Delivery via FedEx, UPS, DHL.
• Carefully packed for safe transportation.

FAQ

• How do I select the correct input range?
• Choose based on sensor output specifications and system requirements.
• Can this module handle mixed signal types?
• Yes, voltage and current inputs can be configured per channel.
• What ensures measurement stability?
• High resolution and low temperature coefficient maintain accuracy.
• Is this module suitable for harsh environments?
• It performs well within specified industrial temperature ranges.
• What should I verify before purchasing?
• Check compatibility with S500 system and signal requirements.
