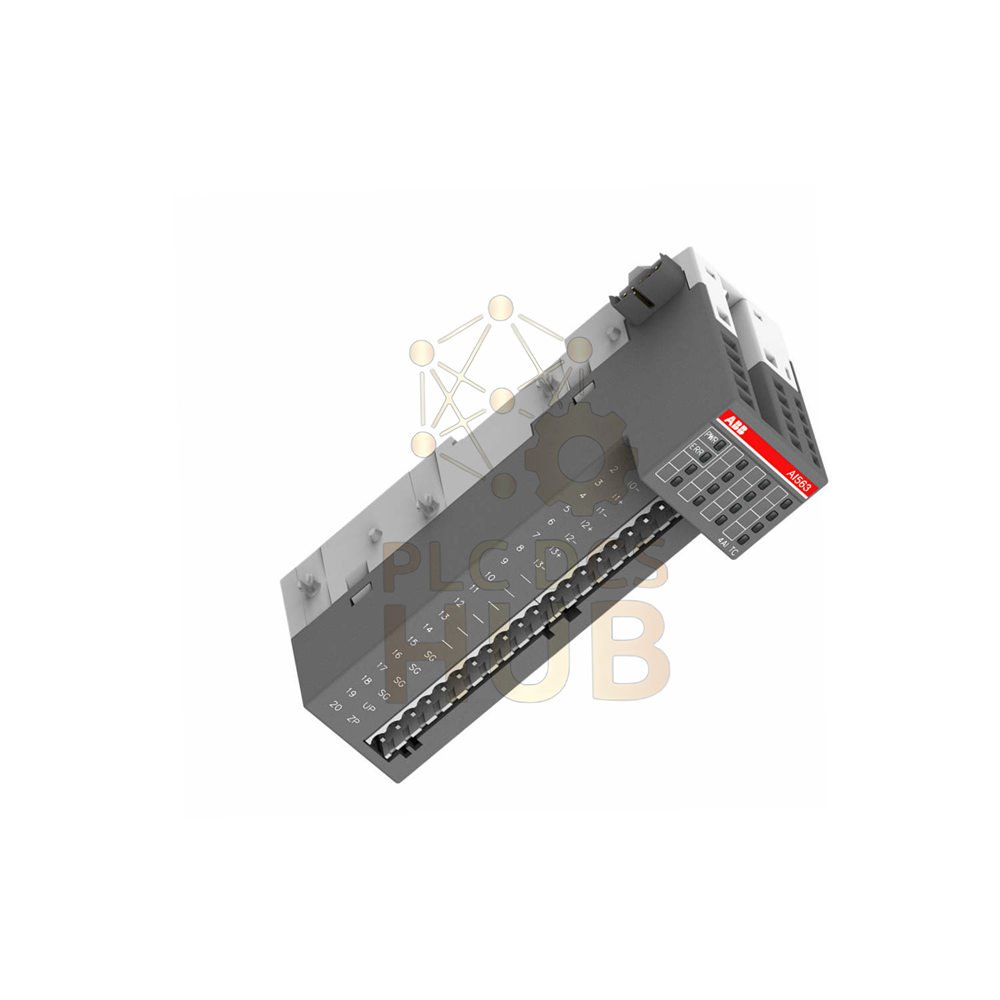

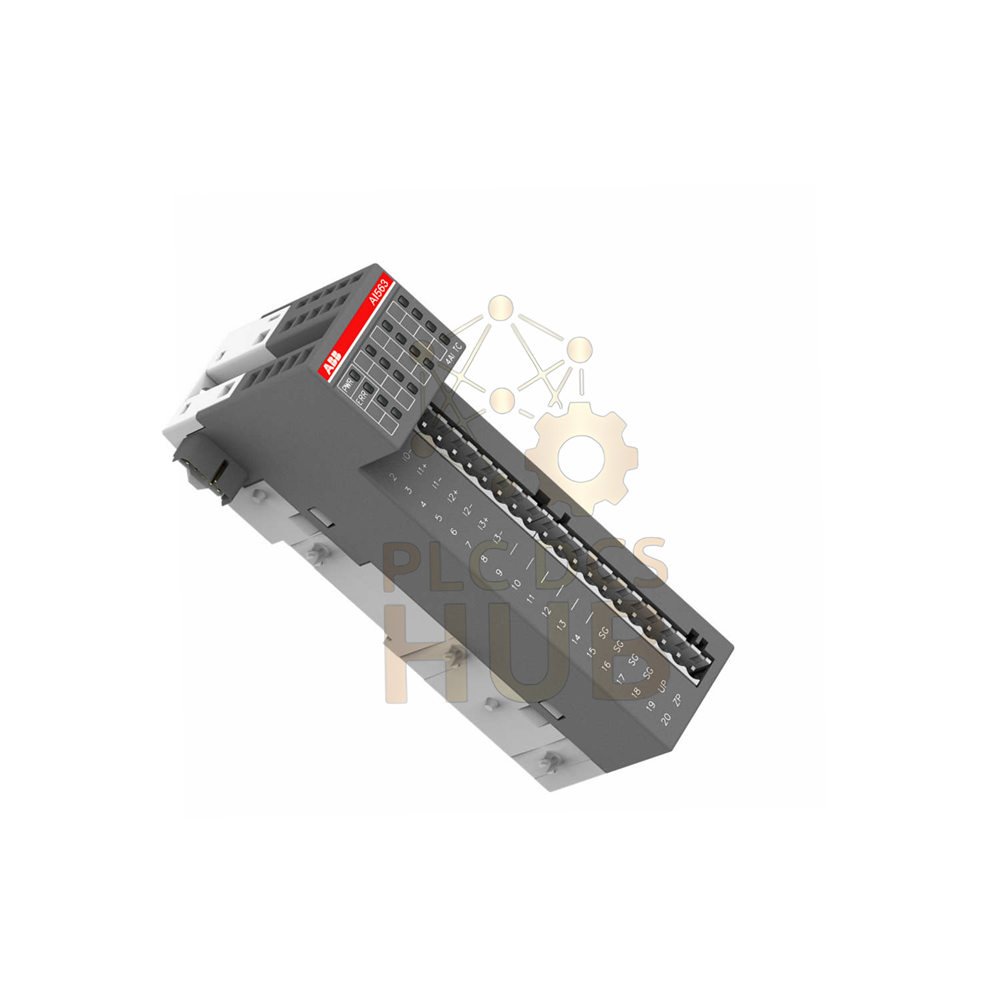

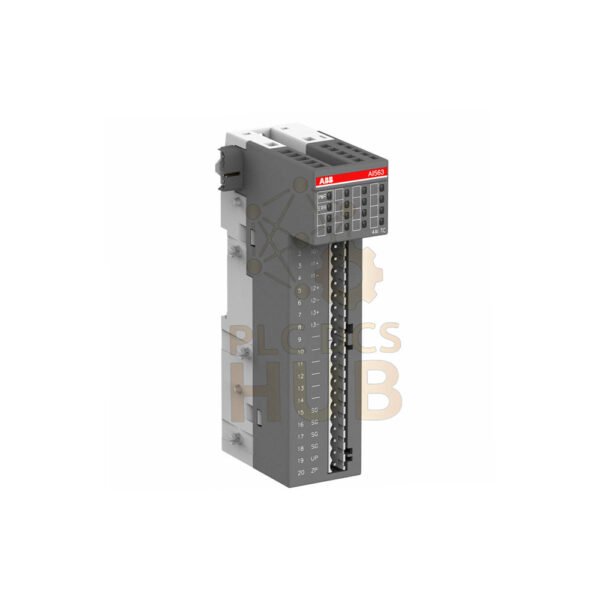

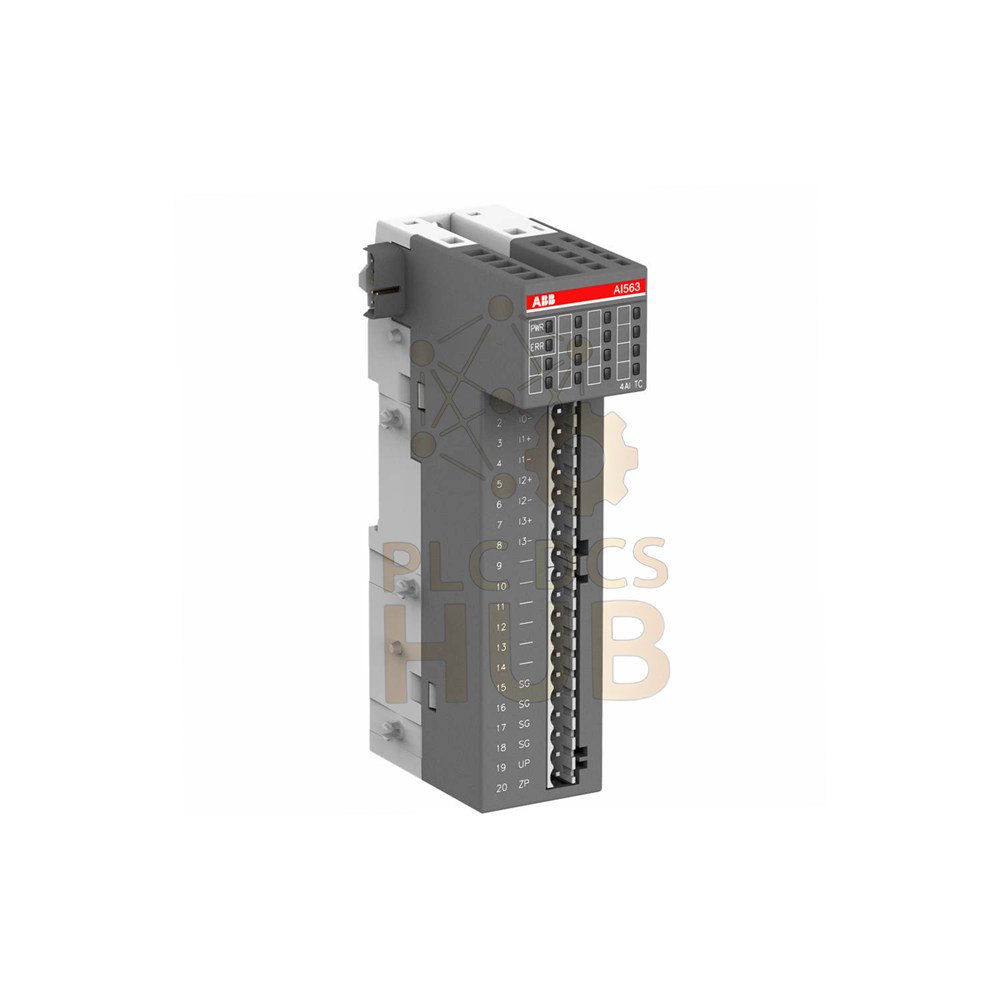

1TNE968902R1103 ABB AI563 Analog Input Module
The 1TNE968902R1103 is a high-precision analog input module from ABB.
It belongs to the AI563 distributed I/O family.
It supports 4 thermocouple inputs for accurate temperature measurement.
The module ensures stable signal acquisition in industrial control systems.
Key Functional Highlights
- Supports 4 thermocouple input channels.
- Provides 16-bit resolution for precise measurement.
- Ensures reliable analog signal conversion.
- Pluggable connection simplifies installation.
- Compact structure saves cabinet space.
Technical Specifications
- Model: AI563 / 1TNE968902R1103
- Input Type: Thermocouple (TC)
- Channels: 4 analog inputs
- Resolution: 16-bit
- Protection: IP20 housing
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +70°C
- Dimensions: 135 × 74 × 34 mm
- Weight: 0.123 kg
- Connection: Pluggable terminal
Installation & Integration
- Install inside standard PLC control cabinets.
- Use proper thermocouple wiring for accurate readings.
- Ensure stable ambient temperature conditions.
- Secure module firmly to avoid vibration impact.
Application Scenarios
- Temperature monitoring systems
- Process automation and control
- Power generation equipment
- Chemical and manufacturing plants
Diagnostics Capability
- High-resolution input enables accurate fault detection.
- Stable signal acquisition reduces measurement errors.
- Supports consistent monitoring of process variables.
PLCDCS HUB’s Insight
- This module suits applications requiring precise temperature data.
- It integrates well with distributed control systems.
- Ideal for equipment using thermocouple sensors.
- Recommended for stable and long-term monitoring systems.
Warranty & Delivery
- 12-month warranty included.
- Fast shipping within 24–48 hours.
- Courier options: FedEx, UPS, DHL.
- Professional packaging ensures safe delivery.
FAQ
- What type of sensors are compatible with this module?
- It supports thermocouple sensors for temperature measurement.
- How to ensure accurate readings during installation?
- Use correct wiring and avoid electromagnetic interference.
- Is this module suitable for harsh environments?
- It works well within specified industrial temperature ranges.
- What should be considered when selecting this module?
- Check sensor type, resolution needs, and PLC compatibility.
- How to order and receive the product quickly?
- Contact support via WhatsApp for fast processing and dispatch.
