Description

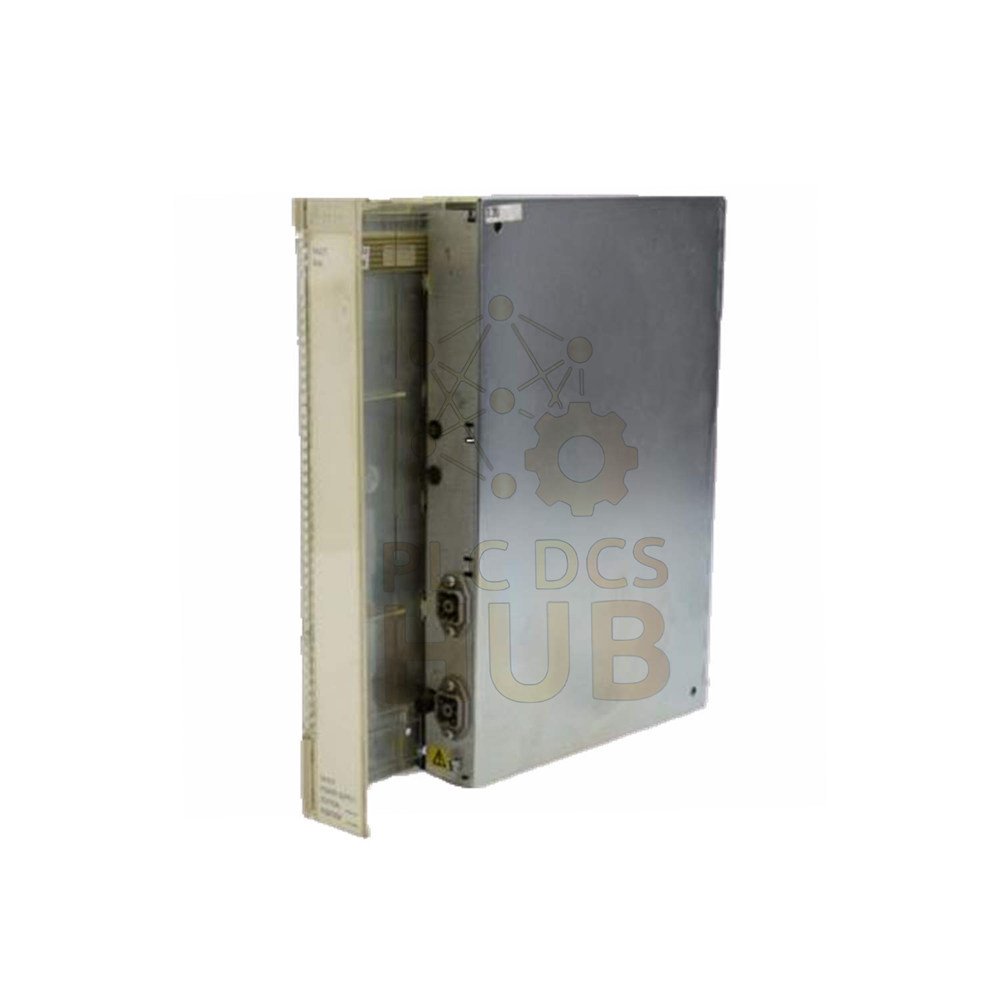

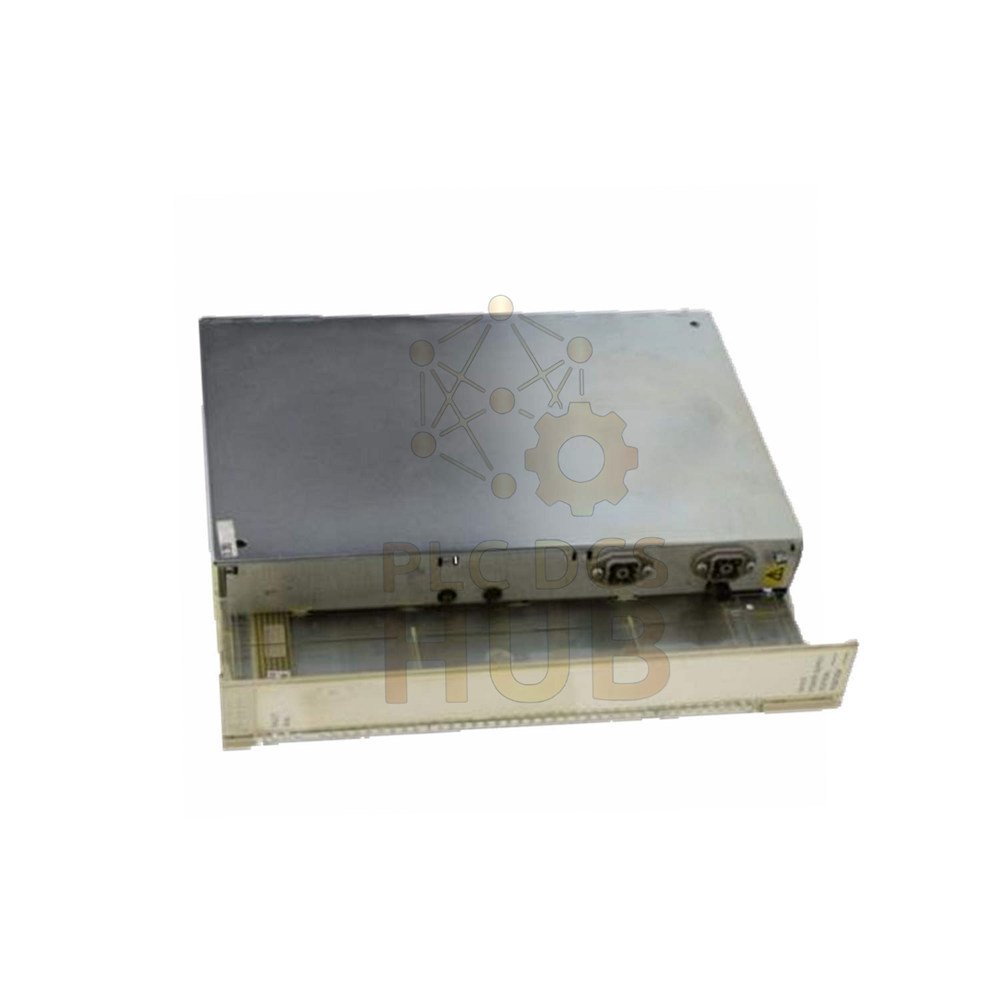

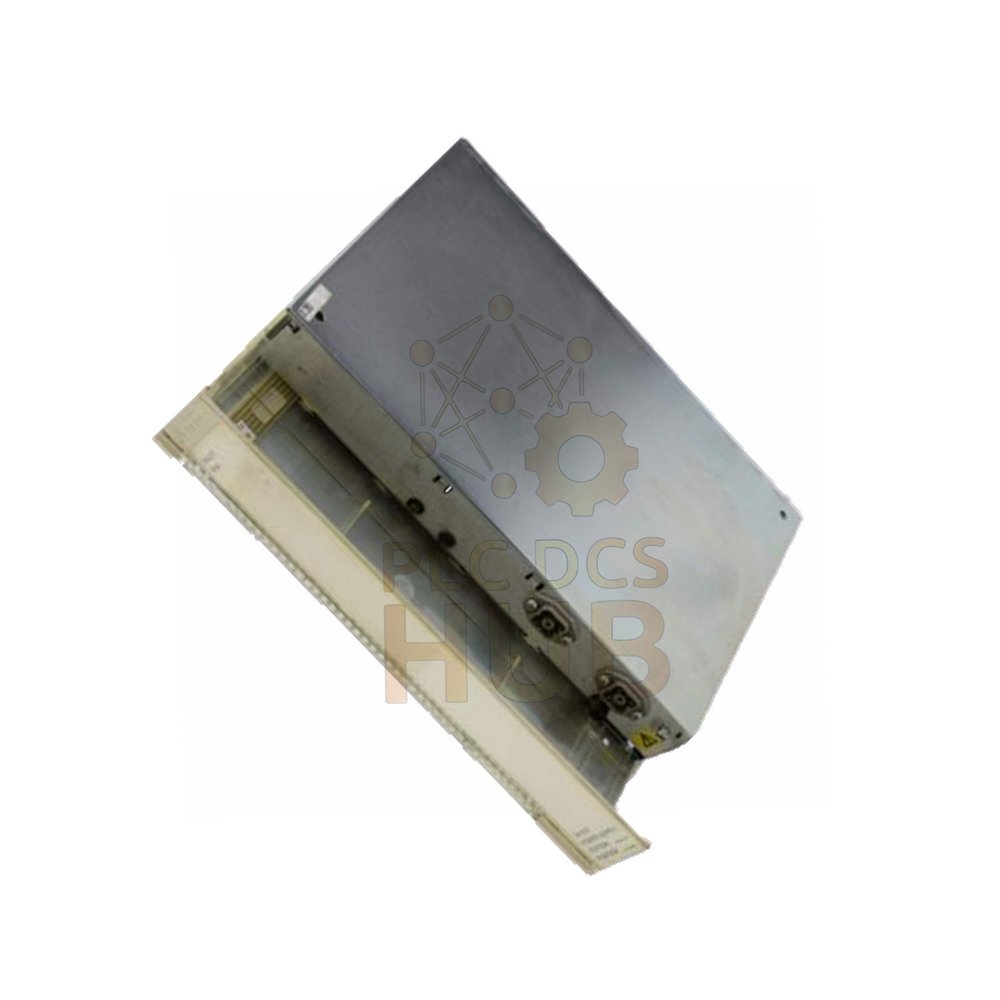

AI610 3BHT300000R1 ABB Analog Input Module
AI610 3BHT300000R1 delivers high-density analog signal acquisition for industrial systems.
It supports 32 input channels with precise 12-bit resolution.
Designed for accurate monitoring in demanding automation environments.
Signal Acquisition Capabilities
- 32 analog input channels for high-density systems
- Supports voltage and current signal types
- Handles 0–10V and 4–20mA inputs
- Ensures stable multi-channel data acquisition
Measurement Performance
- 12-bit resolution for precise signal conversion
- Accuracy up to ±0.1% of full scale
- Sampling rate as fast as 50 ms per channel
- Input impedance ≥ 1 MΩ for voltage inputs
Electrical Characteristics
- Powered by 24V DC supply
- Typical current consumption around 100 mA
- Optimized for energy-efficient operation
Environmental Adaptability
- Operating temperature range from -5°C to +60°C
- Storage temperature from -25°C to +85°C
- Humidity tolerance from 5% to 95% non-condensing
- Designed for continuous industrial operation
Mechanical Profile
- Dimensions: 252 × 273 × 40 mm
- Compact structure for cabinet integration
- Net weight approximately 1.21 kg
PLCDCS HUB’s Insight
- Ideal for systems requiring high channel density
- Reliable for precision monitoring and control tasks
- Strong performance in process automation environments
- Efficient solution for scalable I/O architectures
Application Scenarios
- Process control systems
- Industrial automation lines
- Energy monitoring systems
- Water and wastewater treatment
- Manufacturing data acquisition systems
Diagnostic Capabilities
- Supports real-time input signal monitoring
- Improves fault detection for abnormal signals
- Enhances system reliability through continuous feedback
- Facilitates predictive maintenance strategies
Professional FAQ
- How to choose between voltage and current input?
- Select based on sensor output type and transmission distance requirements.
- What is a key factor for measurement accuracy?
- Proper grounding and shielding reduce signal interference.
- Can it handle high channel loads continuously?
- Yes, it is designed for stable multi-channel operation.
- What should be verified before installation?
- Check power supply stability and input signal compatibility.
- What are the delivery and warranty terms?
- Includes 12-month warranty with 24–48 hour shipping via DHL, UPS, or FedEx.
