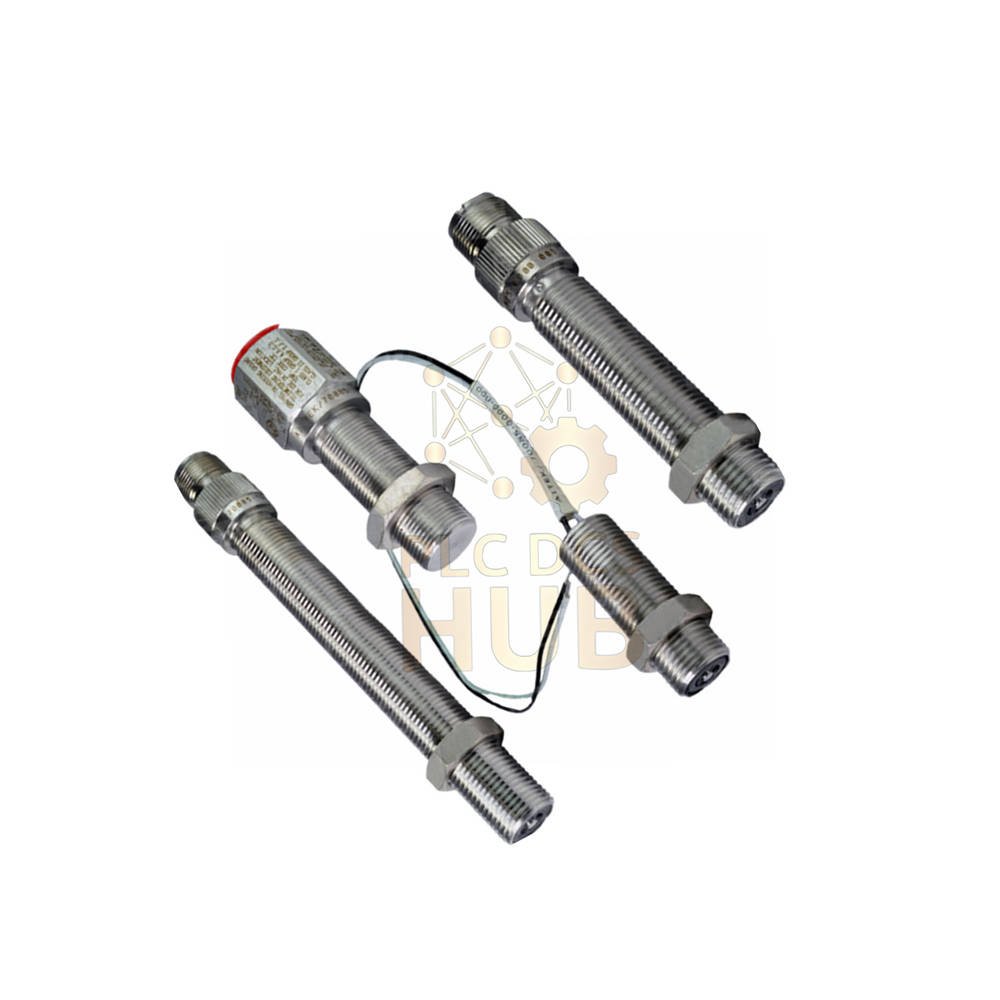

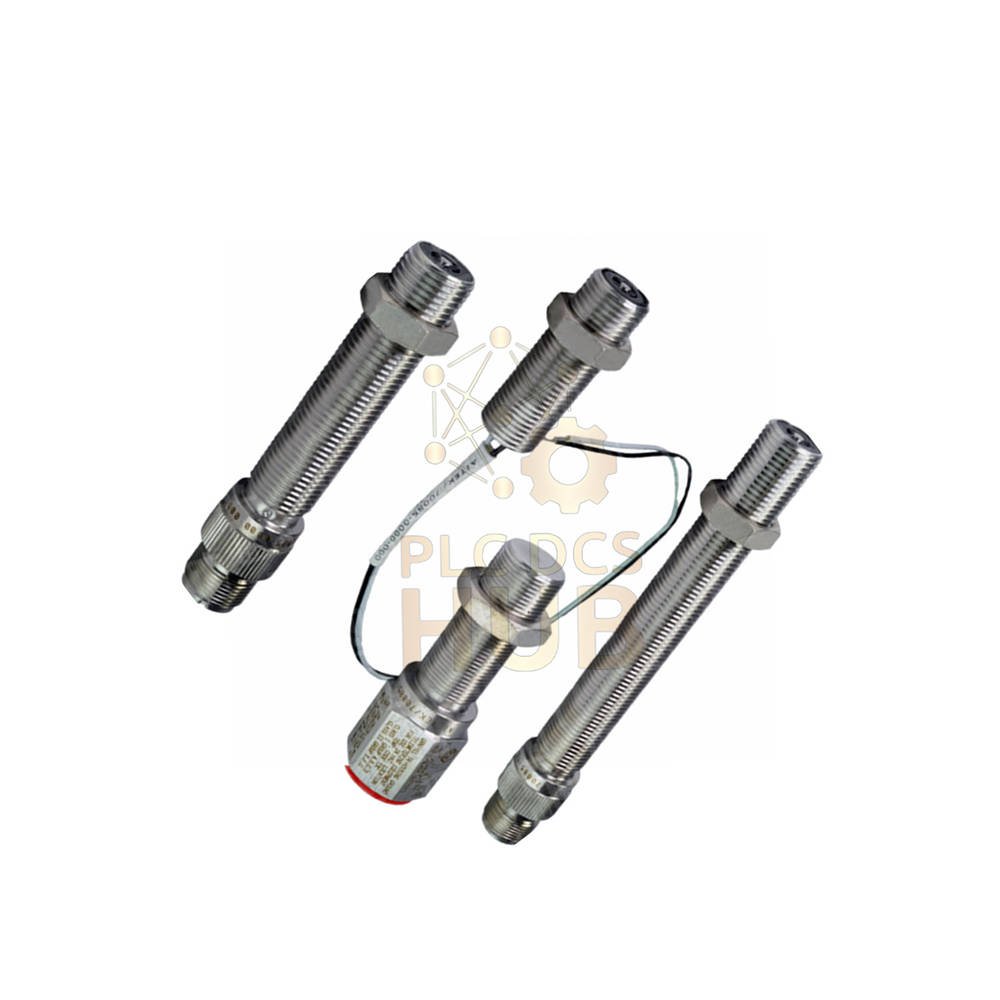

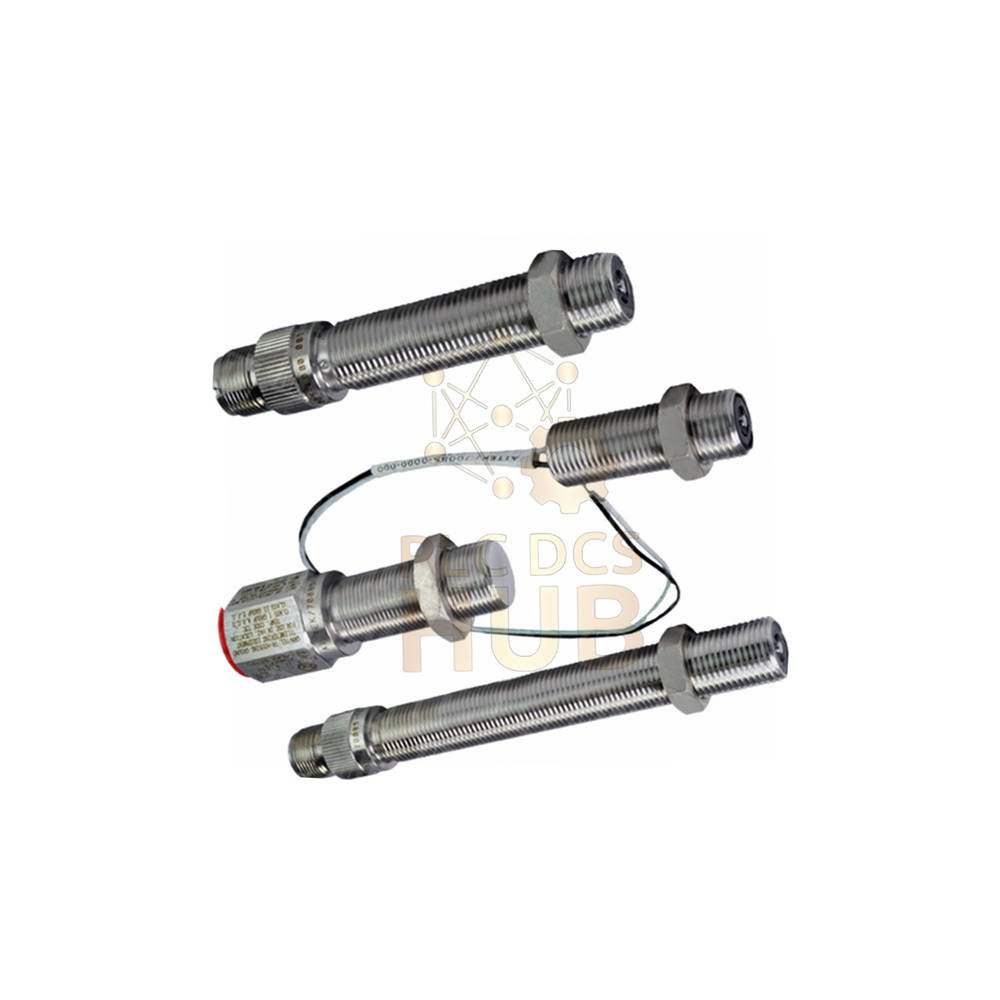

AI-TEK 70085-1010-182 Speed Sensor – Small Size, Wide Temperature Range
Product Highlights
- Brand: AI-TEK – trusted speed sensing brand
- Model: 70085-1010-182 – ultra-compact magnetic pickup
- Thread size: 10-32 for tiny mounting holes
- Works from -73°C to +232°C (sensor body)
- Output up to 6V P-P standard, 0.3V P-P guaranteed
- Wires termination – easy field connection
- Net weight only 1 ounce max
Technical Specifications (Hierarchical View)
- Brand & Model
- Brand: AI-TEK
- Part Number: 70085-1010-182
- Series: 70085
- Type: Passive magnetic speed sensor (variable reluctance)
- Mechanical Data
- Thread Size: 10-32 UNF
- Thread Length: 0.5 inch (12.7 mm)
- Total Sensor Length: 0.5 inch (12.7 mm)
- Net Weight: 1 oz (28 g) maximum
- Electrical & Output
- Standard Output Voltage: 6 V peak-to-peak (P-P)
- Guaranteed Output Voltage: 0.3 V P-P at specified point
- DC Resistance: 50 ohms max
- Typical Inductance: 2 mH (reference)
- Output Polarity: White lead positive
- Termination: Pigtail wires (no connector)
- Lead Length: 18 inches (45.7 cm)
- Environmental & Temperature
- Operating Temperature (elec): -73°C to +150°C
- Sensor Body Temp Rating: -73°C to +232°C
- Agency Approval: None (general industrial use)
Performance Characteristics (Key Values)
- Measurement method: Passive magnetic – no external power needed
- Frequency response: 0 to 15 kHz typical (depends on gear speed)
- Sensitivity: ~100 mV per 1 kHz (reference)
- Resolution: Detects each ferrous target passage
- Air gap tolerance: 0.2 to 0.7 mm for reliable triggering
- EMI immunity: Excellent – no active electronics
Installation Guide (Simple Steps)
- Clean the 10-32 threaded hole before installation.
- Screw sensor gently until it touches the gear tooth.
- Back off 1/2 turn to set correct air gap.
- Tighten jam nut carefully – torque max 3 N·m (2 lb-ft).
- Connect white wire to signal positive input.
- Connect black or shield wire to signal ground.
Diagnostics & Maintenance Ease
- No calibration needed – install and run.
- Check output AC voltage while rotating shaft.
- Low voltage means air gap is too large.
- Inspect wire insulation for damage in hot areas.
- Keep sensor tip clean from metal debris.
Typical Applications (Where it shines)
- Very high temperature turbines (up to 232°C body).
- Tiny gear detection in tight machinery spaces.
- Cryogenic applications (-73°C).
- Speed feedback on small motors.
- Overspeed protection on compressors.
Compatibility Info
- Works with any PLC or tachometer accepting AC signals.
- Needs ferrous metal target (carbon steel gear).
- Not for use with stainless steel or aluminum gears.
- Compatible with most overspeed relays.
Package Contents (No certificate or warranty note)
- 1 x AI-TEK 70085-1010-182 speed sensor
- 1 x jam nut (10-32 thread)
- Quick start instruction sheet
Shipping Methods
- FedEx – 2 to 5 business days
- UPS – 3 to 4 business days
- DHL – 2 to 4 business days worldwide
- Tracking number provided after dispatch.
Frequently Asked Questions (FAQ) & Selection Guide
- Q1: How small is this AI-TEK sensor?
- Total length only 0.5 inch. Fits very tight spots.
- Q2: Why guaranteed output only 0.3V?
- That is the minimum at worst air gap/speed. Real output can reach 6V P-P.
- Q3: Can I use this sensor above 150°C?
- Sensor body survives 232°C, but wire insulation rated to 150°C only. Use high-temp extension for hotter areas.
- Q4: What happens if I reverse white/black wires?
- Output polarity flips, but most AC tachometers still work. Phase may reverse.
- Experience tip: Low output voltage?
- Reduce air gap to 0.3 mm. Also check gear material – must be carbon steel.
- Selection guide: Choose 70085-1010-182 when?
- Pick this model for extreme temperature (-73 to 232°C) and smallest 10-32 thread.
- Warranty support: 12 months from delivery.
- We cover manufacturing defects free within 12 months.
