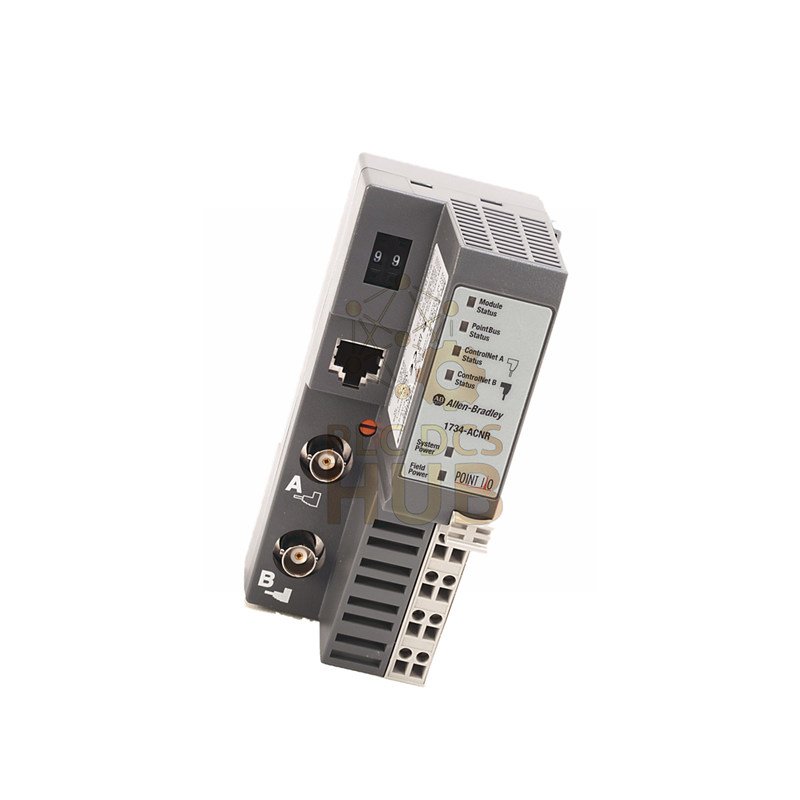

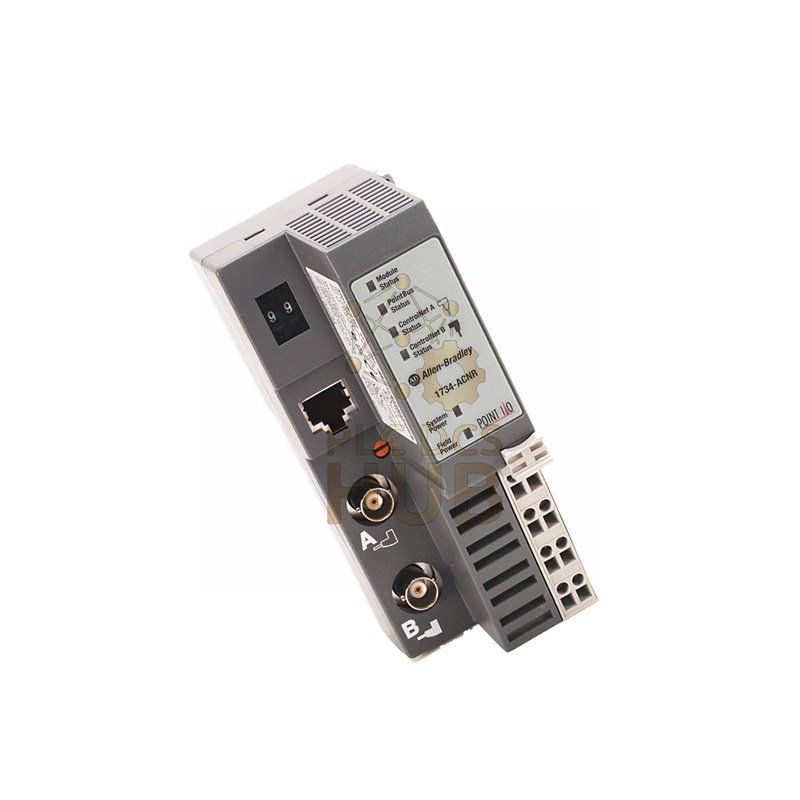

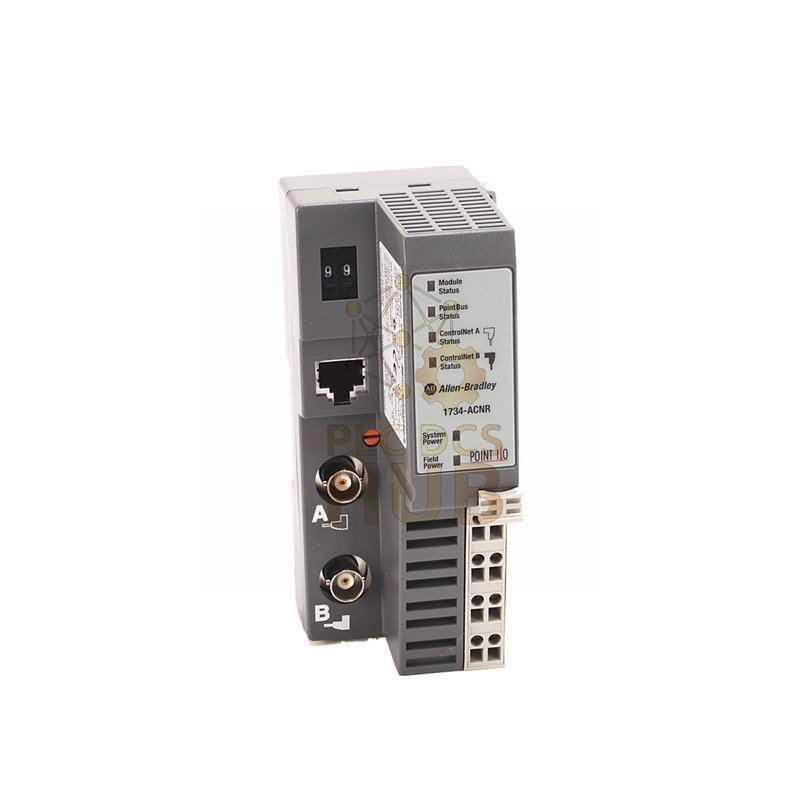

Allen-Bradley 1734-ACNR ControlNet Adapter | Point I/O Interface Module

Description

Allen-Bradley 1734-ACNR ControlNet Adapter | Point I/O Network Interface

Connect your Point I/O system to ControlNet networks with the reliable 1734-ACNR adapter. This powerful interface enables high-speed communication between controllers and I/O modules.

Installation Resources

• Complete installation and configuration guide available
• Includes network setup and wiring diagrams
• Download Point I/O Manual Here

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1734-ACNR
• Series: Point I/O
• Module Type: ControlNet Adapter
• Input Voltage: 24V DC
• Power Consumption: 8W
• Power Requirements: 425mA
• Inrush Current: 6A for 10ms
• POINTBus Current: 1000mA @ 5V DC
• Power Dissipation: 2.8W @ 28.8V
• Max Connections: 5 rack-optimized + 25 direct
• Max Modules: Up to 63 I/O modules
• Operating Temperature: 32°F to 140°F (0°C to 60°C)

Compatibility Information

• Works with Series C or later I/O modules
• Requires 24V DC power supply
• Compatible with 1734-EP24DC power supplies
• Connects to ControlNet networks

Frequently Asked Questions

• Q1: What is the main function of the 1734-ACNR adapter?
• A1: The 1734-ACNR provides the interface between Point I/O modules and ControlNet networks for communication and control.
• Q2: How many I/O connections can this adapter support?
• A2: It supports up to 5 rack-optimized connections for digital modules plus 25 direct connections for specialty and analog modules.
• Q3: What power supply does this adapter require?
• A3: It requires a standard 24V DC power supply and consumes approximately 8W of power.
• Q4: Can I use older I/O modules with this adapter?
• A4: No, the 1734-ACNR only works with Series C or later I/O modules.
• Q5: Does this adapter support network redundancy?
• A5: Yes, it handles redundant media for increased network reliability.

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. This product includes our 12-month warranty against defects.
